INON

Accessory for Action Camera


[Multi-coating high transparency optical acrylic]

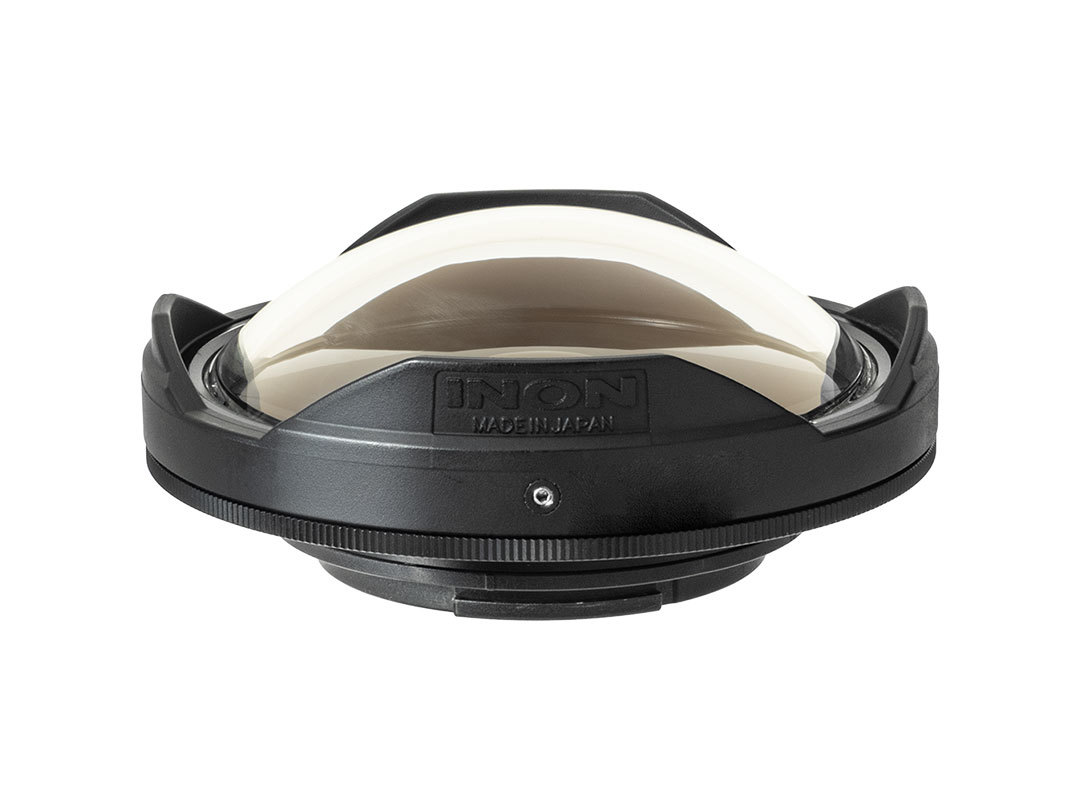

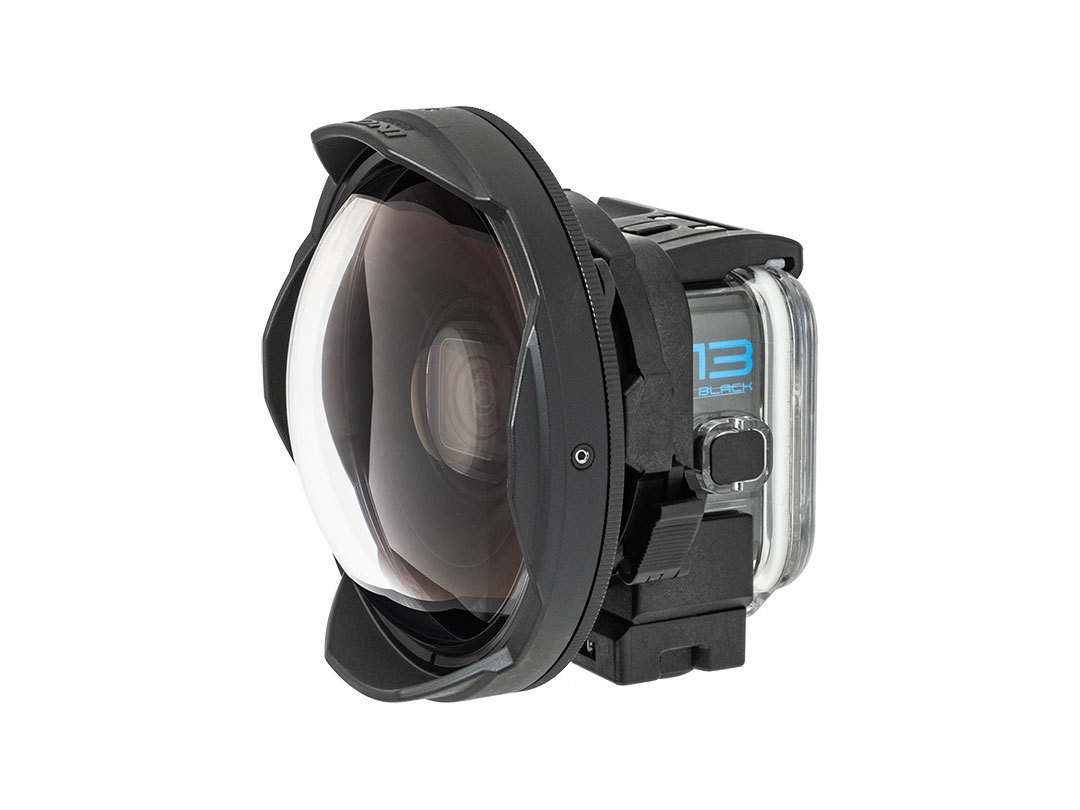

UFL-GR140 ZD Underwater Semi-fisheye Conversion Lens

JAN/EAN code : 4570018120985



[Multi-coating optical glass]
UFL-GR140 Pro ZD Underwater Semi-fisheye Conversion Lens (*)

JAN/EAN code : 4570018121036
*Limited offer due to production.

使用説明書

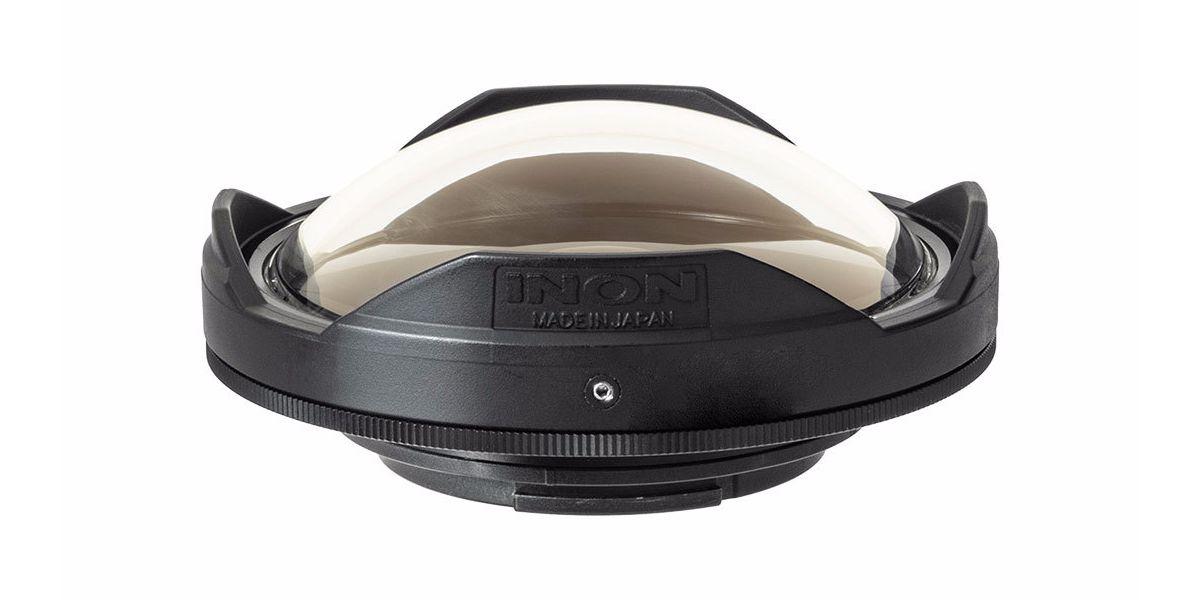

水中セミフィッシュアイコンバージョンレンズ UFL-GR140 ZD

Desigend for action cameras with larger image sensor and wider FOV modes. Supports all FOV settings of GoPro, Insta360 Ace Pro.

Compatible Front Mask


Usable field of view (FOV) and supported aspect ratios
Refer to the compatibility chart for vignetting when using the Front Mask and lens.

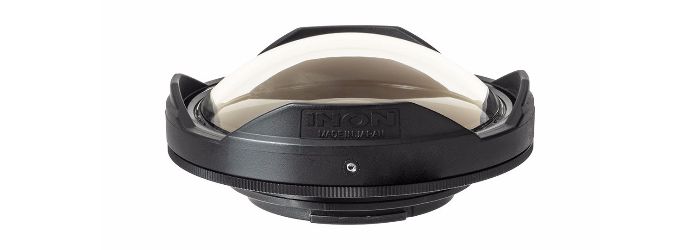

UFL-GR140 ZD

Desigend for action cameras with larger image sensor and wider FOV modes. Supports all FOV settings of GoPro, Insta360 Ace Pro.

Compatible Front Mask


Usable field of view (FOV) and supported aspect ratios
Refer to the compatibility chart for vignetting when using the Front Mask and lens.


Features

Supports Large Image Sensor, Large Aperture Semi-fisheye Lens

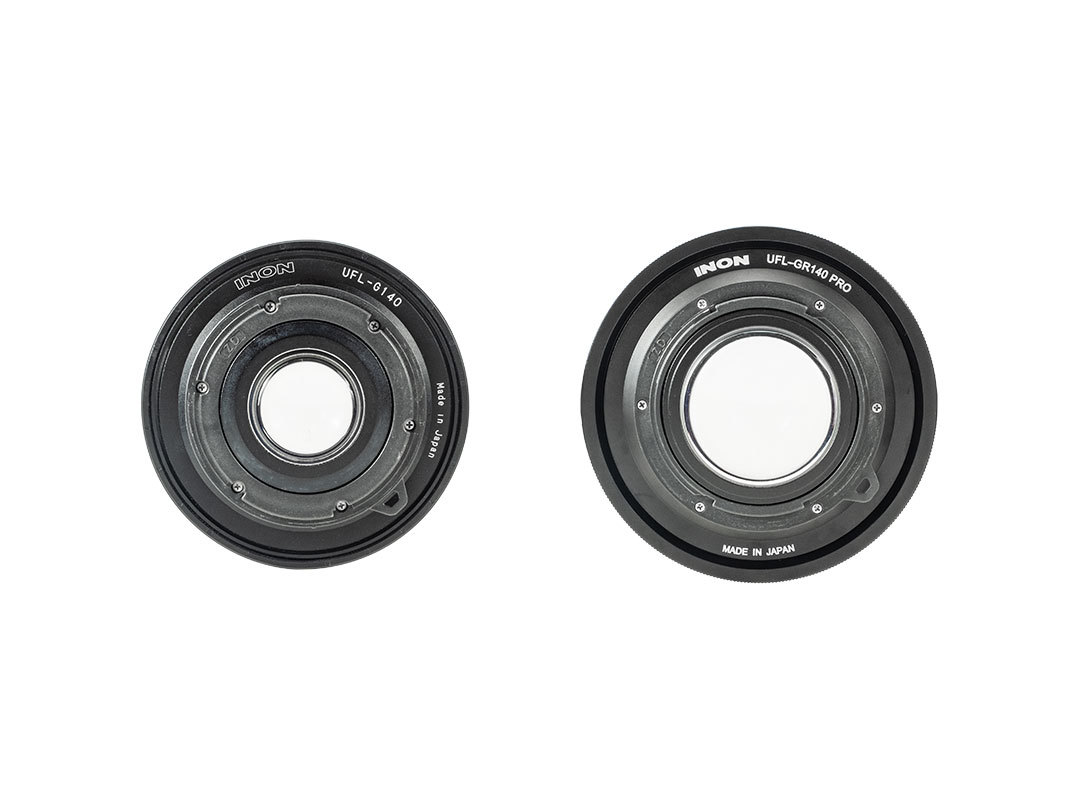

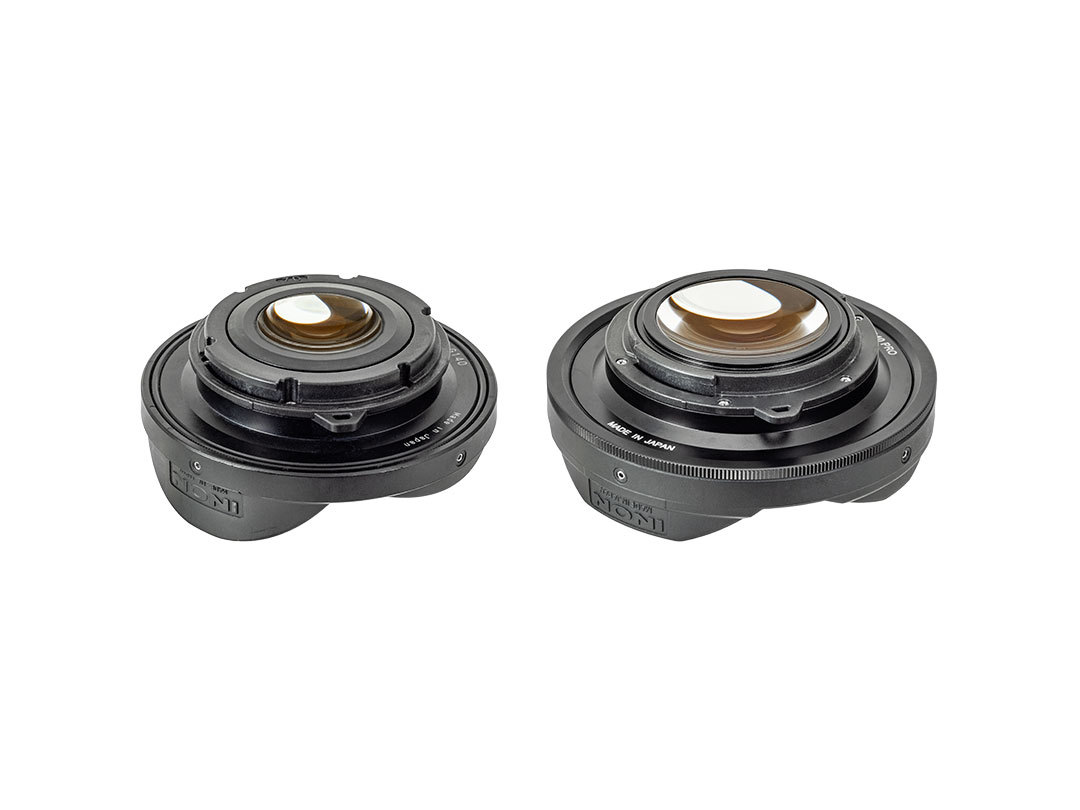

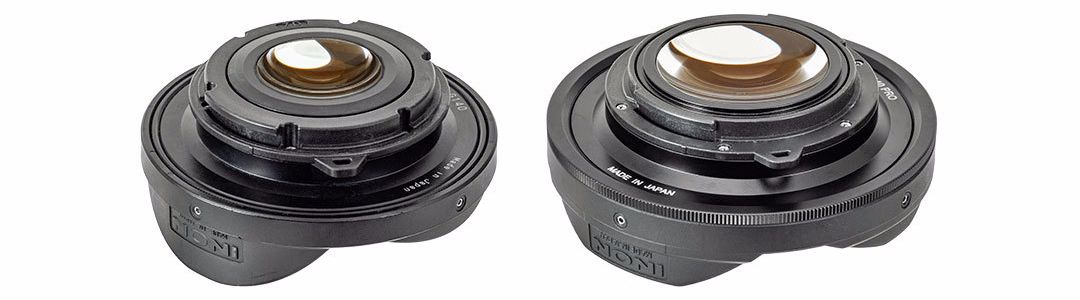

Comparative Example

Comparative Example

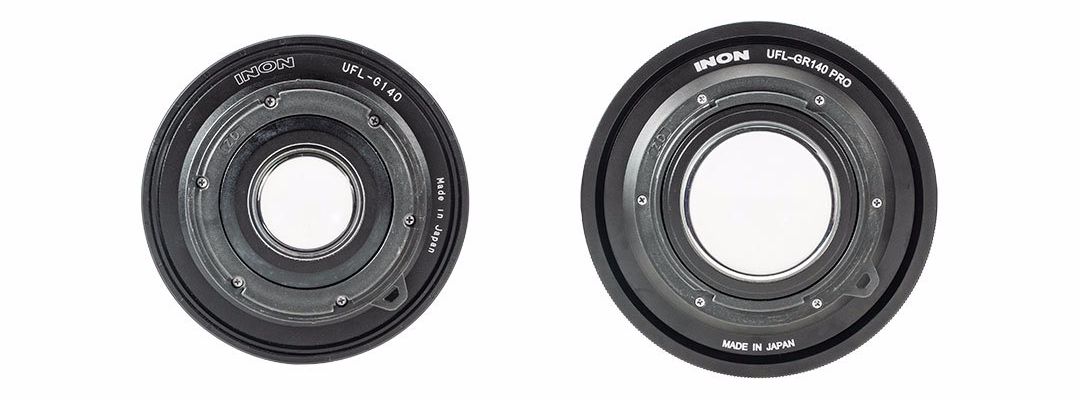

UFL-G140 / UFL-GR140

The rear lens group has been enlarged while maintaining the same size and weight as the previous model.
Works well with action cameras with large sensors, such as the Insta360 Ace Pro/DJI Osmo Action, to film at the maximum field of view without vignetting.
Shooting at 8:7 aspect ratio of GoPro®HERO11 and later models are also supported without vignetting.

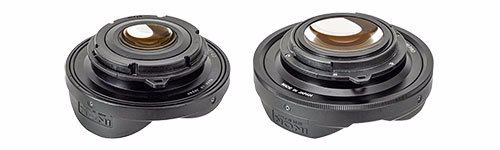

比較例

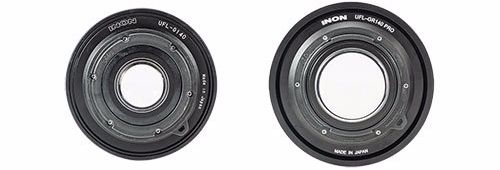

比較例
左:UFL-G140 / 右:UFL-GR140

The rear lens group has been enlarged while maintaining the same size and weight as the previous model.
Works well with action cameras with large sensors, such as the Insta360 Ace Pro/DJI Osmo Action, to film at the maximum field of view without vignetting.
Shooting at 8:7 aspect ratio of GoPro®HERO11 and later models are also supported without vignetting.

Ultra Wide Even Underwater

Though an action camera is equipped with ultra wide lens, its coverage underwater will dramatically narrow down due to different refraction ratio between air and water.

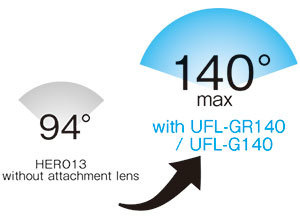

For example, maximum angle of view of GoPro® HERO13 Black is approx. 156° on land which will narrow down to approx. 94° when we put the camera in genuine dive housing and bring it underwater due to different refraction index. The INON UFL-GR140/UFL-G140 provides ultra wide semi-fisheye imaging with angle of view 140° underwater enabling wild underwater video work only with action cameras.


* Measured angle of view by INON or calculated angle of view underwater based on the measured angle of view. Not confirmed by camera manufacture. The measured angle of view of “HERO3+ Silver Edition” is approx. 142°(air) which is less wide than the “Black Edition”. So angle of view underwater with this lens is less than 140°. The “HERO3+ White Edition” has not been tested.

angle of view

Dynamic CFWA Imaging

Shooting through the INON UFL-GR140/UFL-G140 lens enables you to shoot a subject at close range to benefit deformed and/or perspective result.

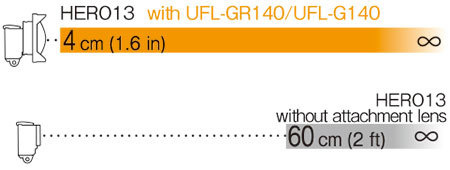

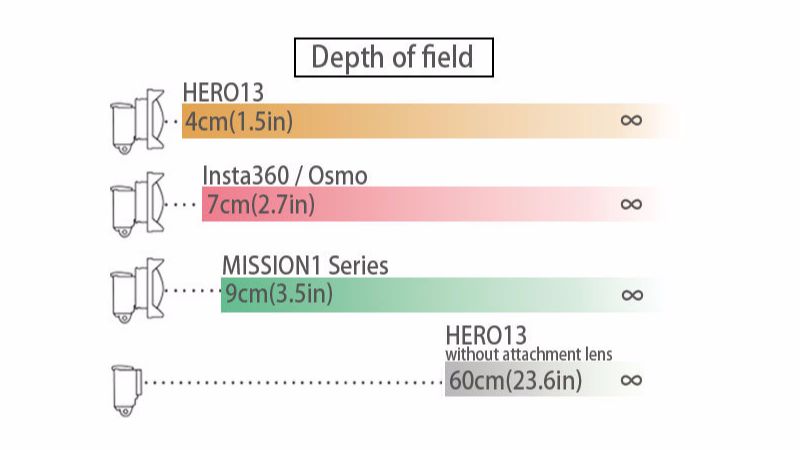

The native depth of field (DoF) of the GoPro®HERO13 Black on land is approx. 60cm/2ft to ∞. With the INON UFL-GR140/UFL-G140, DoF underwater will be extended ∞ 4cm/1.6in to ∞ closer to camera side.


* DoF on land is based on focal length/aperture of camera lens and pixel pitch of the image sensor. DoF underwater is measured from "the forefront of the lens".

UFL-G140SD DoF

Professional-level Image Quality

Both UFL-GR140/UFL-G140 lenses are optimized to produce quality images from the minimum focusing distance to infinity. A 5-layer multi-coating on the inner surface of the acrylic dome ensures excellent image quality comparable to that of a glass dome, while keeping budget price.


Professional-level Image Quality

*It is not recommended to use INON lenses with other brand adapter as using with other brand adapter may degrade the image quality significantly (*Not covered by warranty). This is due to lack of optimization of lens adapter design in combination with INON lens.

Speedy Lens Exchange by SD Mount/ZD Mount

Bayonet INON ZD Mount compatible to support friendly and speedy lens exchange underwater. Compatible with ZD Lens Holder to hold a lens when not in use.

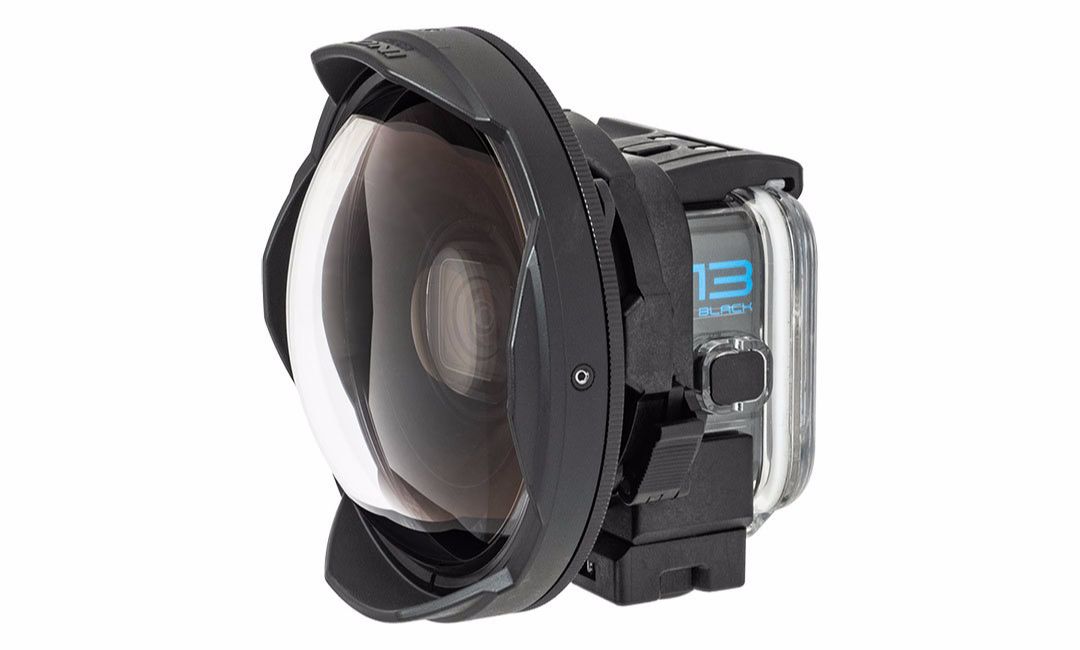

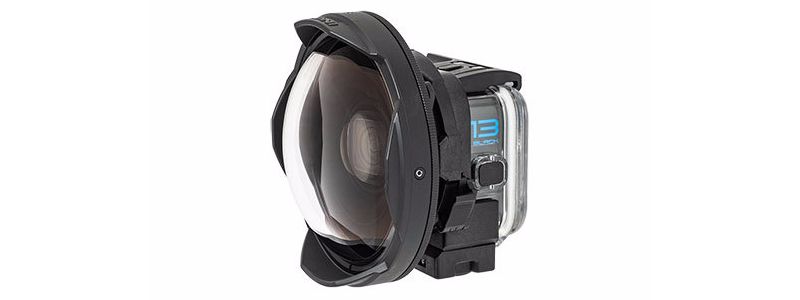

One-touch exchange

Bayonet INON ZD Mount compatible to support friendly and speedy lens exchange underwater. Compatible with ZD Lens Holder to hold a lens when not in use.

ワンタッチ交換
page top

Compatible Accessories

Front Replacement Lens Cap(UFL-GR140)

Front Replacement Lens Cap

Rear Replacement Lens Cap(ZD)

Rear Replacement Lens Cap

Lens Hood II(UFL-GR140)

Lens Hood II(UFL-GR140)
page top

Options

ZD Lens Holder M5

ZD Lens Holder M5

ZD Lens Holder S

ZZD Lens Holder S

Dome Port Cover XS

Dome Port Cover XS

UFL-165AD Neoprene Carry Pouch

UFL-165AD Neoprene Carry Pouch
page top

Specifications

  UFL-GR140 ZD UFL-GR140 Pro ZD
Size
(including Lens Hood)
103.1mm/4.1in [Diameter]
46.3mm/1.8in [Length]
103.1mm/4.1in [Diameter]
46.8mm/1.8in [Length]
Weight
(including Lens Hood)
approx.218g/7.7oz [underwater] 475g/16.7oz [air]
approx.262g/9.1oz [underwater]
Mount system INON ZD Mount
Depth rating 60m/196.9ft
Body material/finishing Corrosion resistant aluminum alloy / rigid black alumite, PC etc.
Lens material/coating Optical glass/both side coating, Optical plastic/both side hard coating, inner multi-coating Optical plastic/inner multi-coating
Max. view angle (*1) (underwater) 140.0°(GoPro 8:7)

  UFL-GR140 ZD UFL-GR140 Pro ZD
Size
(including Lens Hood)
103.1mm/4.1in [Diameter]
46.3mm/1.8in [Length]
103.1mm/4.1in [Diameter]
46.8mm/1.8in [Length]
Weight
(including Lens Hood)
approx.218g/7.7oz [underwater] 475g/16.7oz [air]
approx.262g/9.1oz [underwater]
Mount system INON ZD Mount
Depth rating 60m/196.9ft
Body material/finishing Corrosion resistant aluminum alloy / rigid black alumite, PC etc.
Lens material/coating Optical glass/both side coating, Optical plastic/both side hard coating, inner multi-coating Optical plastic/inner multi-coating
Max. view angle (*1) (underwater) 140.0°(GoPro 8:7)

(*1) Maximum angle of view underwater. It varies among different action cameras.

Mfr. Camera Depth of field with
UFL-GR140 ZD(*2)
Depth of field with
UFL-GR140 Pro ZD(*2)
GoPro (*3) HERO13 Black
HERO12 Black
HERO11 Black
HERO10 Black
HERO9 Black
4cm~∞
Arashi Vison Inc.  Insta360 Ace Pro 2
Insta360 Ace Pro
Insta360 GO Ultra
7cm~∞
DJI Osmo Action 6(F2.8)
Osmo Action 5 Pro
7cm~∞

Mfr. Camera Depth of field with
UFL-GR140 ZD (*2)
Depth of field with
UFL-GR140 Pro ZD (*2)
GoPro (*3) HERO13 Black
HERO12 Black
HERO11 Black
HERO10 Black
HERO9 Black
4cm~∞
Arashi Vison Inc.  Insta360 Ace Pro 2
Insta360 Ace Pro
Insta360 GO Ultra
7cm~∞
DJI Osmo Action 6(F2.8)
Osmo Action 5 Pro
7cm~∞

(*2) Measured DoF from foreground of the lens surface. Divide by 1.33 for visual distance underwater.
(*3) Measured distance underwater for GoProR HERO13 Black/HERO12 Black/HERO11 Black/HERO10 Black/HERO9 Black/HERO8. Other Edition has not been tested.

page top

Remarks

The UFL-GR140 is designed only for underwater use. When using on land, distant subject is not in focus, angle of view is not as wide as rated and vigentting is observed.

For details on each camera's supported settings and vignetting, please refer to the “Compatibility Chart” in the “Supported FOV/Aspect Ratio” section. Please note that the lens hood/Focus Stick may appear in the frame even when marked as “Compatible” if the camera is moved vigorously. Use this information for reference only.

page top

Sample Movie

094
Video by Toru Kasuya
UFL-GR140 Pro ZD
ZD Front Mask for Ace Pro2
093
Video by Reiko Takahashi
UFL-GR140 ZD
ZD Front Mask for HERO12
page top

*GoPro and HERO are trademarks or registered trademarks of GoPro Inc.
*Insta360 is a trademark or registered trademark of Arashi Vison Inc.
*Olympus, STYLUS and TG-Tracker are trademarks or registered trademarks of Olympus Imaging Corp.
*Sony and Action Cam are trademarks or registered trademarks of Sony Corporation and Sony Marketing Inc.
*Specifications are subject to change without notice.
