INON

Accessory for Action Camera


Underwater Wide Close-up Lens

Underwater Wide Close-up Lens

[ZD Mount]
UCL-G165 II ZD Underwater Wide Close-up Lens

JAN/EAN code : 4570018120947

UCL-G165 II ZD

Bayonet INON ZD Mount compatible to support friendly and speedy lens exchange underwater. Compatible with ZD Lens Holder to hold a lens when not in use.

A unique wide close-up lens with a deeper depth of field by slightly increasing angle of view underwater.

Compatible Front Mask

  • ZD Front Mask for HERO12
  • ZD Front Mask for Ace Pro
UCL-G165 II ZD

Bayonet INON ZD Mount compatible to support friendly and speedy lens exchange underwater. Compatible with ZD Lens Holder to hold a lens when not in use.

A unique wide close-up lens with a deeper depth of field by slightly increasing angle of view underwater.

Compatible Front Mask

  • ZD Front Mask for HERO12
  • ZD Front Mask for Ace Pro

page top

[SD Mount]
UCL-G165 II SD Underwater Wide Close-up Lens

JAN/EAN code : 4570018120855

UCL-G165II SD

Bayonet INON SD Mount compatible to support friendly and speedy lens exchange underwater. Compatible with AD Lens Holder to hold a lens when not in use.

A unique wide close-up lens with a deeper depth of field by slightly increasing angle of view underwater.

Compatible camera

  • SD Front Mask for GO 3S
  • SD Front Mask for HERO9
  • SD Front Mask for HERO8
  • SD Front Mask for HERO5/6/7
  • SD Front Mask STD
  • SD Mount Cage for HERO3/3+/4
UCL-G165II SD

Bayonet INON SD Mount compatible to support friendly and speedy lens exchange underwater. Compatible with AD Lens Holder to hold a lens when not in use.

A unique wide close-up lens with a deeper depth of field by slightly increasing angle of view underwater.

Compatible camera

  • SD Front Mask for GO 3S
  • SD Front Mask for HERO9
  • SD Front Mask for HERO8
  • SD Front Mask for HERO5/6/7
  • SD Front Mask STD
  • SD Mount Cage for HERO3/3+/4

page top

[M55 Screw Mount]

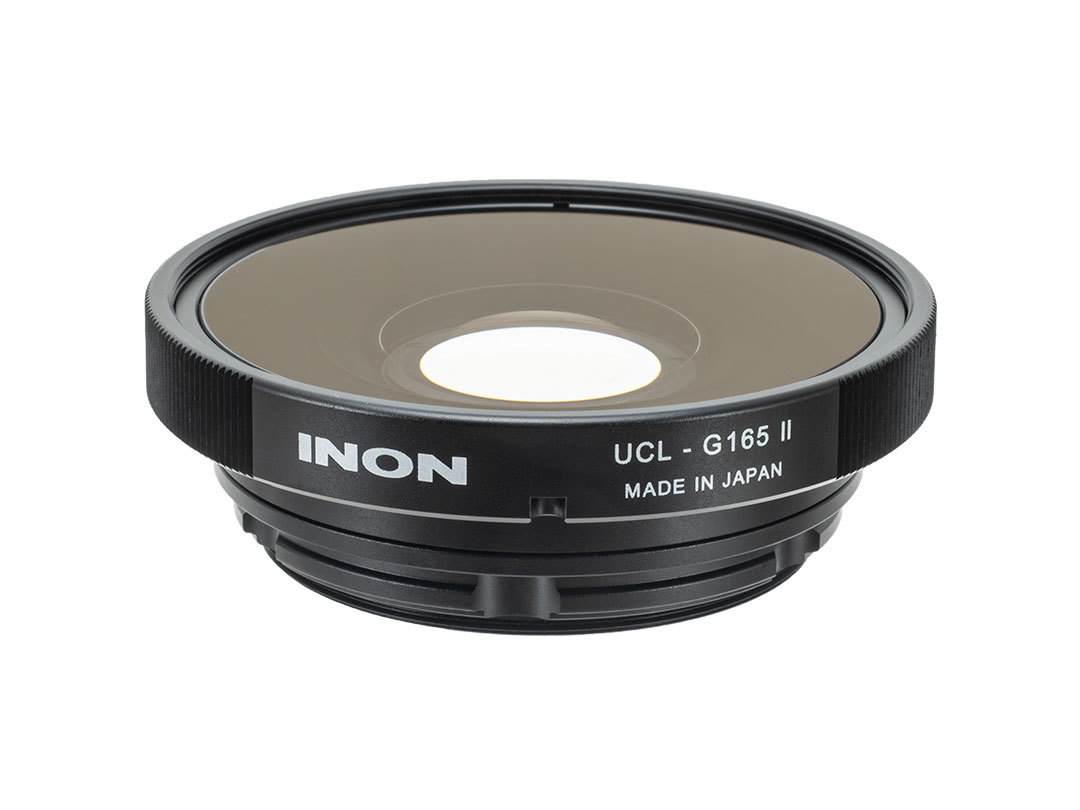

UCL-G165 II M55 Underwater Wide Close-up Lens

JAN/EAN code : 4570018120862

UCL-G165 II M55

The M55 screw mount lens designed to screw on the SONY MPK-HSR1 (genuine underwater housing for Sony compact digital camera "DSC-RX0").

A unique wide close-up lens with a deeper depth of field by slightly increasing angle of view underwater.

Compatible camera

  • SONY DSC-RX0/MPK-HSR1
UCL-G165 II M55

The M55 screw mount lens designed to screw on the SONY MPK-HSR1 (genuine underwater housing for Sony compact digital camera "DSC-RX0").

A unique wide close-up lens with a deeper depth of field by slightly increasing angle of view underwater.

Compatible camera

  • SONY DSC-RX0/MPK-HSR1

page top

Focus Stick for UCL-G165 II

JAN/EAN code : 4570018120893

Focus Stick for UCL-G165 II

Focus Stick for UCL-G165 II

Patent pending "Focus Stick" to support focusing to use with "UCL-G165II".

This device provides a visual reference of the minimum focusing distance when filming with the UCL-G165II. The Focus Stick can be set either on the top or the bottom indicating the minimum focusing distance of the UCL-G165II at the tip.
The far end of the depth of field is 25cm/9.8in from the tip. The Focus Stick also indicates angle of view when GoPro camera is set to "Linear".
It rotates 360° and clicks every 90° so it is easy to turn instantly when not necessary.


*The Focus Stick for UCL-G165 II is specifically designed for UCL-G165II ZD/SD and not for any other lenses including previous UCL-G165 SD or UCL-G165II M55.

Focus Stick for UCL-G165 II

Focus Stick for UCL-G165 II

Patent pending "Focus Stick" to support focusing to use with "UCL-G165II".

This device provides a visual reference of the minimum focusing distance when filming with the UCL-G165II. The Focus Stick can be set either on the top or the bottom indicating the minimum focusing distance of the UCL-G165II at the tip.
The far end of the depth of field is 25cm/9.8in from the tip. The Focus Stick also indicates angle of view when GoPro camera is set to "Linear".
It rotates 360° and clicks every 90° so it is easy to turn instantly when not necessary.

*The Focus Stick for UCL-G165 II is specifically designed for UCL-G165II ZD/SD and not for any other lenses including previous UCL-G165 SD or UCL-G165II M55.

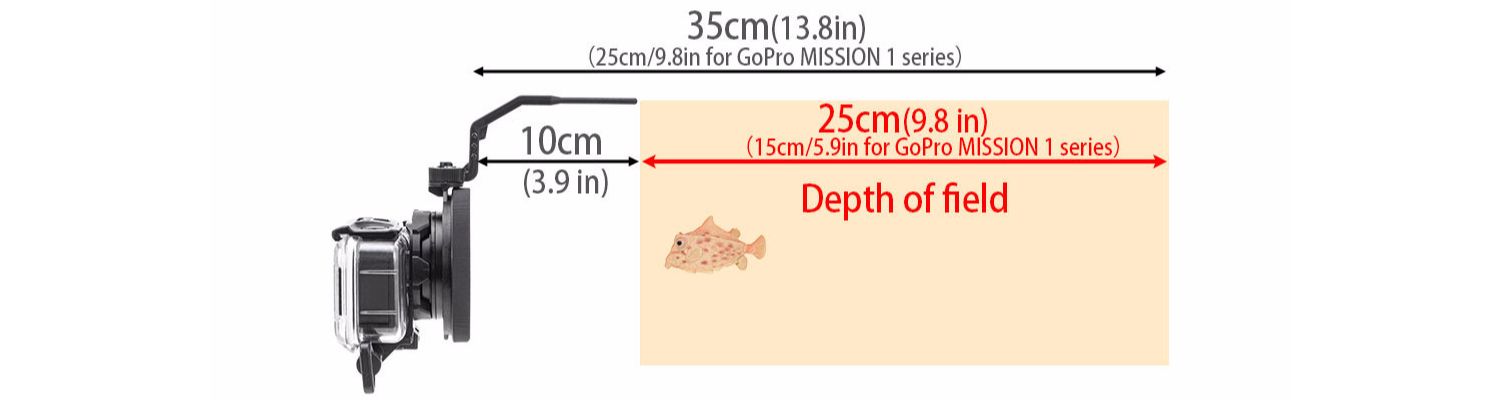

depth of field
depth of field

page top

Features

Get Closer Minimum Focus Distance

An action camera is a deep focus camera which does not require focusing but prevents a subject gets in focus in close range (within 60cm/2ft range in theory for GoPro® camera) thus not usable for underwater macro shooting. Using standard macro lens for a compact digital camera would not help the situation as it would create vignetting and very shallow depth of field preventing comfortable focusing. The UCL-G165 II lens is so-called "wide close-up lens" specifically designed for action cameras based on their optical characteristic. The depth of field (DoF) underwater will be 10cm/3.9in to 35cm/1.1ft when using the lens for GoPro®HERO13 Black supporting closer minimum focus distance underwater to capture wow photos/clips.

* The depth of field (DoF) on land is theoretical value based on focal length/aperture of camera lens and pixel pitch of the image sensor. DoF underwater is measured from "the forefront of the lens".

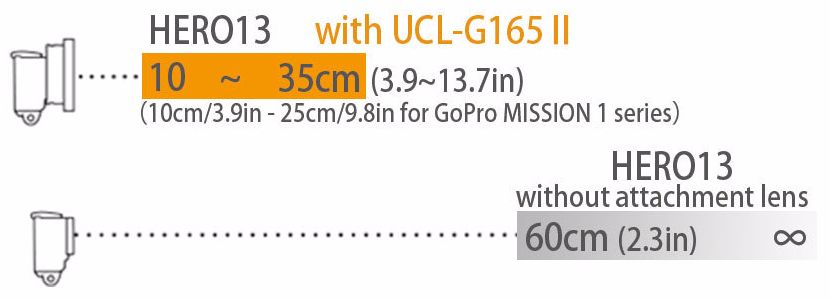

UCL-G165II DoF

Ideal Angle of View for Macro Shooting

Maximum angle of view of GoPro®HERO13 Black is approx. 156° on land which will narrow down to approx. 94° when the camera is housed in genuine dive housing and submerged due to different refraction index. The INON UCL-G165 II slightly increases angle of view underwater to 110° to capture dynamic scene played by a subject as the lens frames subject larger than UFL-G140 which delivers ultra wide 140°.

Coverage by UCL-G165II

Professional-level Image Quality

Optics is constructed of 2 elements in 2 groups. All elements are made from high refractive index glass lens to minimize whole size dramatically without sacrificing performance. Both lens elements have anti-reflection coating on all surfaces to elicit combined master lens performance with less ghost/flare.

(C)Mateusz Bednarcuzk
(C)Mateusz Bednarcuzk

*Using with other than INON SD Front Mask may result in a significant image quality degradation due to a lack of optimization of the mounting distance between the lens and the adapter. Such usage is not covered by warranty.

page top

Compatible Accessories

Front Replacement Lens Cap
UCL-G165 II ZD
UCL-G165 II SD
UCL-G165 II M55

Front Replacement Lens Cap

Front Replacement Lens Cap
Focus Stick for UCL-G165 II



Front Replacement Lens Cap

Rear Replacement Lens Cap
UCL-G165 II Z



Rear Replacement Lens Cap

Rear Replacement Lens Cap
UCL-G165 II SD



Rear Replacement Lens Cap

Rear Replacement Lens Cap
UCL-G165 II M55



Rear Replacement Lens Cap

Front Replacement Lens Cap
UCL-G165 II ZD
UCL-G165 II SD
UCL-G165 II M55

Front Replacement Lens Cap

Front Replacement Lens Cap
Focus Stick for UCL-G165 II

Front Replacement Lens Cap

Rear Replacement Lens Cap
UCL-G165 II Z

Rear Replacement Lens Cap

Rear Replacement Lens Cap
UCL-G165 II SD

Rear Replacement Lens Cap

Rear Replacement Lens Cap
UCL-G165 II M55

Rear Replacement Lens Cap
page top

Options

ZD Lens Holder M5
UCL-G165 II ZD



ZD Lens Holder M5

ZD Lens Holder S
UCL-G165 II ZD



ZD Lens Holder S

AD Lens Holder for Float Arm
UCL-G165 II SD



AD Lens Holder for Float Arm

AD Lens Holder
UCL-G165 II SD



AD Lens Holder

AD Lens Holder Shoe Base
UCL-G165 II SD



AD Lens Holder Shoe Base

ZD Male Bayonet for SD Lens
UCL-G165 II SD



ZD Male Bayonet for SD Lens

UCL-330 Neoprene Carry Pouch
UCL-G165 II ZD
UCL-G165 II SD
UCL-G165 II M55

UCL-330 Neoprene Carry Pouch

ZD Lens Holder M5
UCL-G165 II ZD

ZD Lens Holder M5

ZD Lens Holder S
UCL-G165 II ZD

ZD Lens Holder S

AD Lens Holder for Float Arm
UCL-G165 II SD

AD Lens Holder for Float Arm

AD Lens Holder
UCL-G165 II SD

AD Lens Holder

AD Lens Holder Shoe Base
UCL-G165 II SD

AD Lens Holder Shoe Base

ZD Male Bayonet for SD Lens
UCL-G165 II SD

ZD Male Bayonet for SD Lens

UCL-330 Neoprene Carry Pouch
UCL-G165 II ZD
UCL-G165 II SD
UCL-G165 II M55

UCL-330 Neoprene Carry Pouch
page top

Specifications

  UCL-G165II ZD UCL-G165II SD  UCL-G165II M55
Size 77mm/3.0in [Diameter]
25.2mm/1.0in [Length]
77mm/3.0in [Diameter]
25.2mm/1.0in [Length]
77mm/3.0in [Diameter]
25.5mm/1.0in [Length]
Weight 211g/7.4oz [air]
approx.129g/4.6oz [underwater]
200g/7.1oz [air]
approx.121g/4.3oz [underwater]
222g/7.8oz [air]
approx.139g/4.9oz [underwater]
Mount system INON ZD Mount INON SD Mount INON M55 Mount
Depth rating 60m/196.9ft
Body material
/finishing
Corrosion-resistant aluminum alloy / rigid black alumite
Lens material/coating Optical glass / both side coating
Lens construction 2 groups 2 elements
Max. view angle (*1) 165mm/6.5in [underwater]

  UCL-G165II ZD UCL-G165II SD  UCL-G165II M55
Size 77mm/3.0in [Diameter]
25.2mm/1.0in [Length]
77mm/3.0in [Diameter]
25.2mm/1.0in [Length]
77mm/3.0in [Diameter]
25.5mm/1.0in [Length]
Weight 211g/7.4oz [air]
approx.129g/4.6oz [underwater]
200g/7.1oz [air]
approx.121g/4.3oz [underwater]
222g/7.8oz [air]
approx.139g/4.9oz [underwater]
Mount system INON ZD Mount INON SD Mount INON M55 Mount
Depth rating 60m/196.9ft
Body material
/finishing
Corrosion-resistant aluminum alloy / rigid black alumite
Lens material/coating Optical glass / both side coating
Lens construction 2 groups 2 elements
Max. view angle (*1) 165mm/6.5in [underwater]

(*1) Standalone focal length of UCL-G165 II and not combined focal length with camera’s master lens.

Mfr. Camera Depth of field with
UCL-G165 II (*2)
GoPro (*3)  HERO13 Black
HERO12 Black
HERO11 Black
HERO10 Black
HERO9 Black
HERO8 Black
HERO7 Black
HERO6 Black
HERO5 Black
HERO4
HERO3+ Black
HERO
HERO+
HERO+ LCD
10cm/3.9in to 35cm/13.8in
HERO3 BLACK 7cm/2.8in to ∞
Arashi Vison Inc. Insta360 Ace Pro
Insta360 GO 3S
10cm/3.9in to 35cm/13.8in
OLYMPUS TG-Tracker 2cm/0.8in to 15cm/5.9in
SONY FDR-X3000
HDR-AS300
10cm/3.9in to 35cm/13.8in
DSC-RX0(MPK-HSR1) 9.6cm/3.8in to ∞

Mfr. Camera Depth of field with
UCL-G165 II (*2)
GoPro (*3)  HERO13 Black
HERO12 Black
HERO11 Black
HERO10 Black
HERO9 Black
HERO8 Black
HERO7 Black
HERO6 Black
HERO5 Black
HERO4
HERO3+ Black
HERO
HERO+
HERO+ LCD
10cm/3.9in to 35cm/13.8in
HERO3 BLACK 7cm/2.8in to ∞
Arashi Vison Inc. Insta360 Ace Pro
Insta360 GO 3S
10cm/3.9in to 35cm/13.8in
OLYMPUS TG-Tracker 2cm/0.8in to 15cm/5.9in
SONY FDR-X3000
HDR-AS300
10cm/3.9in to 35cm/13.8in
DSC-RX0(MPK-HSR1) 9.6cm/3.8in to ∞

(*2) Measured DoF from foreground of the lens surface. Divide by 1.33 for visual distance underwater.。
(*3) Measured distance underwater for GoPro® HERO13 Black/HERO12 Black/HERO11 Black/HERO10 Black/HERO9 Black/HERO8 Black/HERO7 Black/HERO6 Black/HERO5 Black/HERO4/HERO3+ Black/HERO3 Black/HERO/HERO+/HERO+ LCD. Other Edition has not been tested.
(*4)Although the lens specifications are the same as the previous model "UCL-G165," the depth of field has been updated in response to the camera's higher resolution.

page top

Remarks

[When using the UCL-G165 II]
The UCL-G165 II is designed only for underwater use. Using the lens on land will have vignetting.
[When using for GoPro®]
Set the camera's field of view (FOV)/Digital Lenses to [Wide] for wide-angle macro photography that prioritizes angle of view, or [Narrow] for magnification-oriented photography.
When using with HERO11 Black, HERO12 Black and HERO13 Black, shoot in 4:3 or 16:9 aspect ratio as vignetting will occur in 8:7 or [HyperView] mode.
[SuperView™] mode is not recommended. The SuperView™ mode stretches both ends of the image inside the camera to fit into a 16:9 aspect ratio from originally obtained 4:3 aspect ratio image by the camera sensor. Since the edges of the frame are stretched horizontally, using an attachment lens further stretches the edges of the frame, resulting in an unnatural image.
Set the camera's image stabilization (HyperSmooth) to [Standard], [High], or [On]. Setting to [Off] will cause vignetting in image corners, and [Boost] will crop the image significantly.
The FOV/Digital Lenses setting [Wide] in Photo mode causes vignetting in image corners.
[When using Insta360 Ace Pro]
Avoid setting combinations of [ActionView] + 4K/16:9 or [UltraWide] + 4K/4:3 as they will have vignetting regardless of whether image stabilization is activated or not.
When shooting video, even in FOV settimg other than the above, the Focus Stick may be appeared in a clip if the camera is moved abruptly.
In photo mode, [UltraWide] + 48MP/4:3 will have vignetting. Note that optional Focus Stick will be exposed on an image as well.
[When using for TG-Tracker]
Activate image stabilization function of the camera while shooting video to avoid vignetting. When taking still images, do not use attachment lens to avoid significant vignetting on image corners.
Since the camera is designed to offer optimal focusing performance for close range subject, usable range of DoF (depth of field) with this lens is "2cm/0.8in to 15cm/5.9in" and distant subject beyond this range gets blur.
[When using for FDR-X3000/HDR-AS300]
Select SteadyShot (Movie) [Act] when shooting video as [Std] and [OFF] cause slight vignetting. Select SteadyShot (Still) [ON] when shooting still image. Excessive camera movement may result vignetting even SteadyShot (Movie) [Act] is selected.
Set angle of view to [W: Wide] for wide-angle macro shooting that prioritizes angle of view, or [N: Narrow] for magnification-oriented imaging.

page top

Sample Movie

091
Video by Itaru Takaku
UFL-G140 SD
UCL-G165 SD
082
Video by Alex Kydd
UCL-G165 SD

068
Video by Toru Kasuya
UCL-G165 SD

057
Video by Takehiro Aihara
UFL-G140 SD
UCL-G165 SD
039
Video by Korechika Yano
UFL-G140 SD
UCL-G165 SD
027
Video by Akihide Inoue
UFL-G140 SD
UCL-G165 SD
063
Video by Ryo Hattori
UCL-G165 SD
LF1100-W
070
Video by Mateusz Bednarcuzk
UCL-G165 SD

065
UFL-G140 SD
UCL-G165 SD
LF1100-W


*GoPro and HERO are trademarks or registered trademarks of GoPro Inc.
*Insta360 is a trademark or registered trademark of Arashi Vison Inc.
*Olympus, STYLUS and TG-Tracker are trademarks or registered trademarks of Olympus Imaging Corp.
*Sony and Action Cam are trademarks or registered trademarks of Sony Corporation and Sony Marketing Inc.
*Specifications are subject to change without notice.
