INON

Underwater Close-up Lens

Underwater Close-up Lens


[ZD Mount]
UCL-G55 ZD Underwater Close-up Lens

JAN/EAN code : 4570018120978

*The packaged Focus Stick is designed for GoPro® cameras.

UCL-G55 ZD Underwater Close-up Lens

Bayonet INON ZD Mount compatible to support friendly and speedy lens exchange underwater. Optional INON ZD Lens Holder can hold the UCL-G55 ZD when the lens is not in use.

The unprecedented high-magnification close-up lens with packaged useful Focus Stick enables you to easily enjoy blur-free macro photography.

Compatible Front Mask

  • ZD Front Mask for HERO12
  • ZD Front Mask for Ace Pro
UCL-G55 ZD Underwater Close-up Lens

Bayonet INON ZD Mount compatible to support friendly and speedy lens exchange underwater. Optional INON ZD Lens Holder can hold the UCL-G55 ZD when the lens is not in use.

The unprecedented high-magnification close-up lens with packaged useful Focus Stick enables you to easily enjoy blur-free macro photography.

Compatible Front Mask

  • ZD Front Mask for HERO12
  • ZD Front Mask for Ace Pro

page top

[SD Mount]
UCL-G55 SD Underwater Close-up Lens

JAN/EAN code : 4570018120886

UCL-G55 SD Underwater Close-up Lens

Bayonet INON SD Mount compatible to support friendly and speedy lens exchange underwater. Optional INON AD Lens Holder can hold the UCL-G55 SD when the lens is not in use.

The unprecedented high-magnification close-up lens with packaged useful Focus Stick enables you to easily enjoy blur-free macro photography.

Compatible Front Mask

  • SD Front Mask for HERO9
  • SD Front Mask for HERO8
  • SD Front Mask for HERO5/6/7
  • SD Front Mask STD
  • SD Mount Cage for HERO3/3+/4
UCL-G55 SD Underwater Close-up Lens

Bayonet INON SD Mount compatible to support friendly and speedy lens exchange underwater. Optional INON AD Lens Holder can hold the UCL-G55 SD when the lens is not in use.

The unprecedented high-magnification close-up lens with packaged useful Focus Stick enables you to easily enjoy blur-free macro photography.

Compatible Front Mask

  • SD Front Mask for HERO9
  • SD Front Mask for HERO8
  • SD Front Mask for HERO5/6/7
  • SD Front Mask STD
  • SD Mount Cage for HERO3/3+/4

page top

Features

Highest Magnification Close-up Lens

The UCL-G55 offers the highest magnification among the UCL-G series close-up lenses. The lens provides 4x magnification (scale ratio) compared to the UCL-G165II.
The lens is specially designed for shooting tiny critters, enabling ultra-macro photography with GoPro cameras.

*Depth of field gets shallower with higher magnification due to the nature of close-up lenses.
*The UCL-G55 provides ultra-high magnification, so using a tripod is recommended to prevent handshake.

Angle of view

depth of field

Change FOV Setting for Further Magnification


The distance between two sticks represents a shooting range of the UCL-G55 when GoPro® is set to "WIDE". GoPro® cameras have several FOV. settings. By using "Linear" or other narrower FOV. setting.it is possible to shoot at an even higher magnification. Shooting at a high resolution such as 4K with "1.4x" zoom can enlarge the subject even more with relatively less image quality degradation.

Shooting frame
Video by : Yasushi Setoguchi

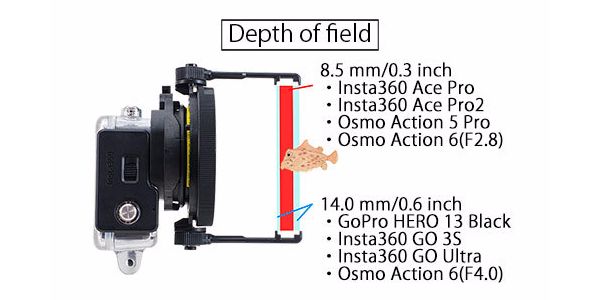

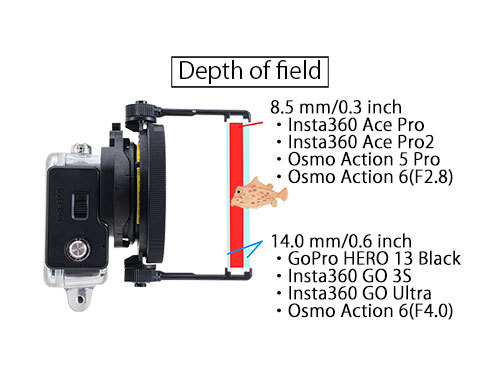

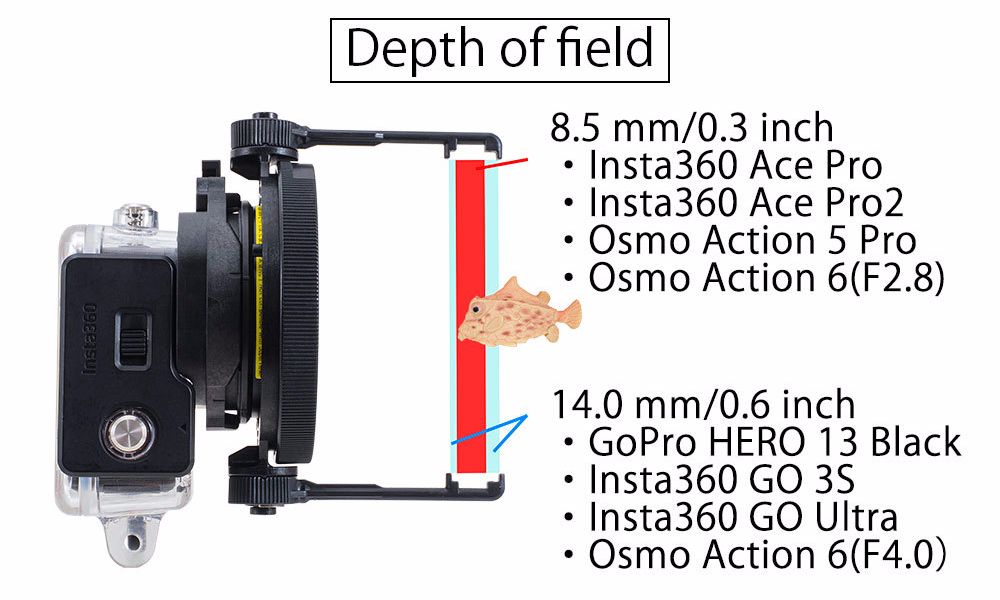

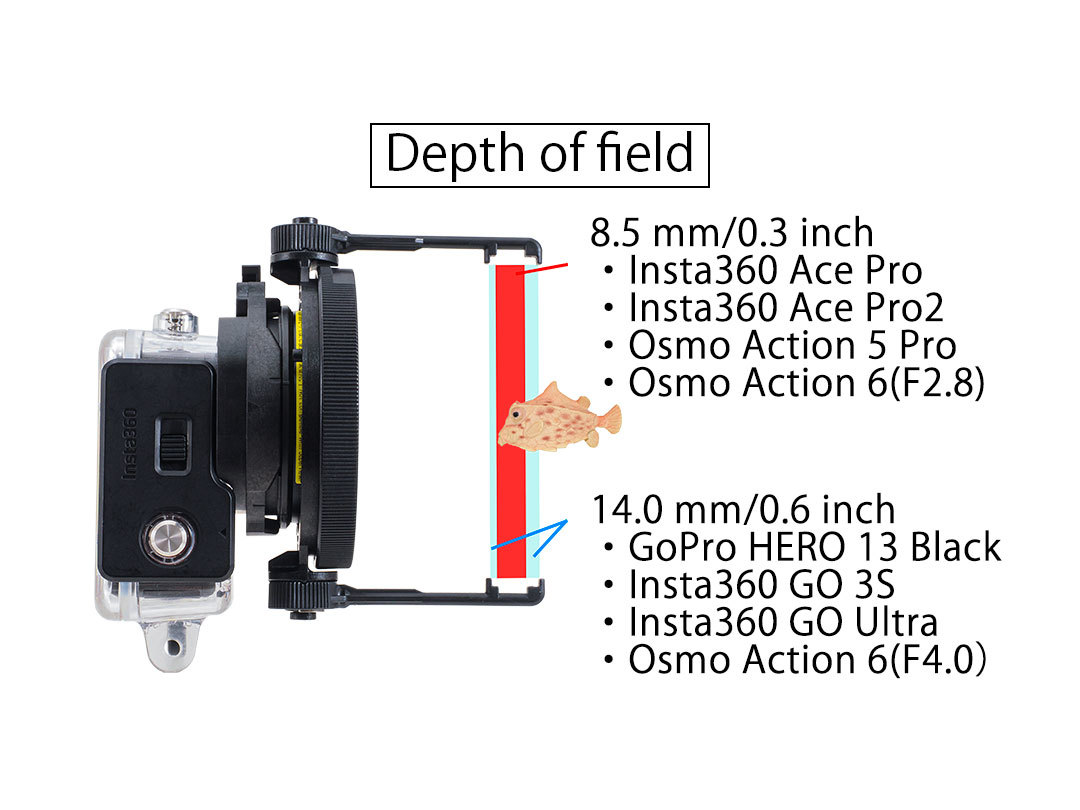

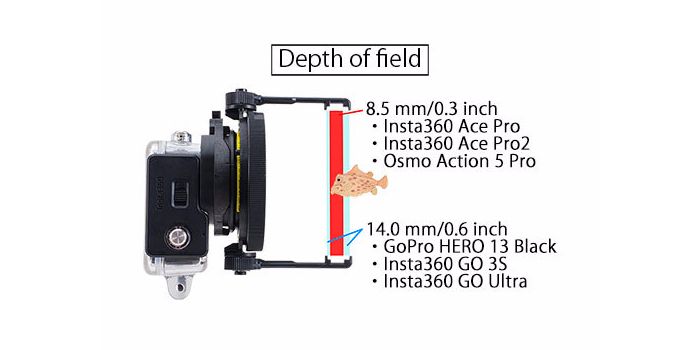

Blur-free Focus Stick (PAT.P)

The distance between two sticks represents a shooting range of the UCL-G55 when GoPro® is set to "WIDE". The Focus Stick for UCL-G55 has two protrusions representing minimum focusing distance with protrusions at camera side and far end of the depth of field with the far side protrusions (tip).

It is easy to take sharp and crispy high magnification close-up video by referring to the Focus Stick and checking the composition on the rear monitor.
The Focus Stick rotates 360° and has clicks every 90°, so it can be instantly flipped up when not in use. Vertical installation is also possible. The Focus Stick body is attached to the lens with retaining screw ring and can be separated from the lens when not necessary.

Close-up device

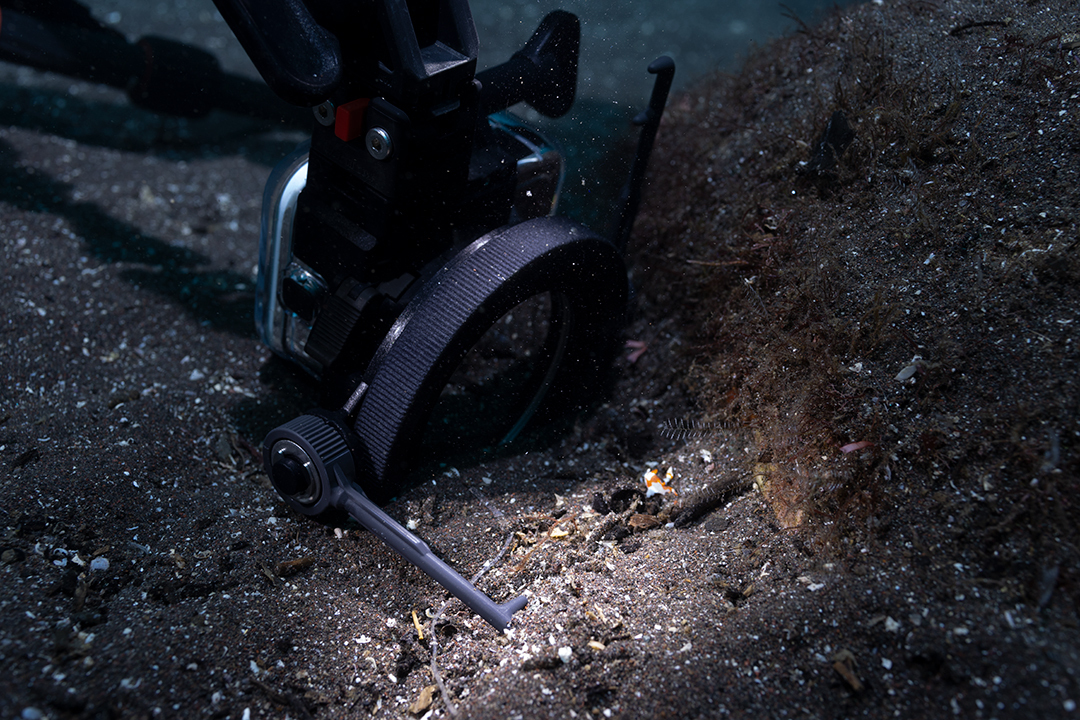

Shooting scenery
Close-up device

Visually indicates the distance to focus, and can easily fold not to limit camera placement.

The distance between two sticks represents a shooting range of the UCL-G55 when GoPro® is set to "WIDE". The Focus Stick for UCL-G55 has two protrusions representing minimum focusing distance with protrusions at camera side and far end of the depth of field with the far side protrusions (tip).

It is easy to take sharp and crispy high magnification close-up video by referring to the Focus Stick and checking the composition on the rear monitor.
The Focus Stick rotates 360° and has clicks every 90°, so it can be instantly flipped up when not in use. Vertical installation is also possible. The Focus Stick body is attached to the lens with retaining screw ring and can be separated from the lens when not necessary.

Close-up device
Shooting scenery
Close-up device

Visually indicates the distance to focus, and can easily fold not to limit camera placement.

page top

Compatible Accessories

Front Replacement Lens Cap
UCL-G55 ZD
UCL-G55 SD

Front Replacement Lens Cap

Front Replacement Lens Cap
Accessories : Focus Stick for UCL-G55


Front Replacement Lens Cap

Rear Replacement Lens Cap
UCL-G55 ZD


Rear Replacement Lens Cap

Rear Replacement Lens Cap
UCL-G55 SD


Rear Replacement Lens Cap

Front Replacement Lens Cap
UCL-G55 ZD
UCL-G55 SD

Front Replacement Lens Cap

Front Replacement Lens Cap
Accessories : Focus Stick for UCL-G55

Front Replacement Lens Cap

Rear Replacement Lens Cap
UCL-G55 ZD

Rear Replacement Lens Cap

Rear Replacement Lens Cap
UCL-G55 SD

Rear Replacement Lens Cap
page top

Options

ZD Lens Holder M5
UCL-G55 ZD

ZD Lens Holder M5

ZD Lens Holder S
UCL-G55 ZD

ZD Lens Holder S

AD Lens Holder for Float Arm
UCL-G55 SD

AD Lens Holder for Float Arm

AD Lens Holder
UCL-G55 SD

AD Lens Holder

AD Lens Holder Shoe Base
UCL-G55 SD

AD Lens Holder Shoe Base

ZD Male Bayonet for SD Lens
UCL-G55 SD

ZD Male Bayonet for SD Lens
page top

Specifications

  UCL-G55 ZD UCL-G55 SD
Size Lens:
 77mm/3.0in [diameter]
 25.2mm/1.0in [length]
With Focus Stick:
 W121xH91xD87mm/W4.8xH3.6xD3.4in [Focus Stick extended]
 W121xH120xD28mm/W4.8xH4.7xD1.1in [Focus Stick folded]
Lens:
 77mm/3.0in [diameter]
 25.2mm/1.0in [length]
With Focus Stick:
 W121xH91xD87mm/W4.8xH3.6xD3.4in [Focus Stick extended]
 W121xH120xD28mm/W4.8xH4.7xD1.1in [Focus Stick folded]
Weight 189g/6.6oz [lens standalone, air]
45.4g/1.6oz [Focus Stick standalone, air]
119g/4.2oz [with Focus Stick, underwater]
184g/6.5oz [lens standalone, air]
45.4g/1.6oz [Focus Stick standalone, air]
116g/4.1oz [with Focus Stick, underwater]
Mount system INON ZD Mount INON SD Mount
Depth rating 60m / 196.9ft
Body material
/finishing
Corrosion resistant aluminum alloy
rigid black alumite, PC etc.
Lens material
/coating
Optical glass/both side coating,
Lens construction 2 groups 3 elements
View angle Approx. 45°[underwater]
Depth of field(*1) 4.8cm / 1.9in to 6.2cm / 2.4in
Compatible camera HERO4 and later
Remarks Compatible INON “ZD Front Mask” is required to use the attachment lens. Compatible INON “SD Front Mask” is required to use the attachment lens.

  UCL-G55 ZD UCL-G55 SD
Size Lens:
 77mm/3.0in [diameter]
 25.2mm/1.0in [length]
With Focus Stick:
 W121xH91xD87mm/W4.8xH3.6xD3.4in [Focus Stick extended]
 W121xH120xD28mm/W4.8xH4.7xD1.1in [Focus Stick folded]
Lens:
 77mm/3.0in [diameter]
 25.2mm/1.0in [length]
With Focus Stick:
 W121xH91xD87mm/W4.8xH3.6xD3.4in [Focus Stick extended]
 W121xH120xD28mm/W4.8xH4.7xD1.1in [Focus Stick folded]
Weight 189g/6.6oz [lens standalone, air]
45.4g/1.6oz [Focus Stick standalone, air]
119g/4.2oz [with Focus Stick, underwater]
184g/6.5oz [lens standalone, air]
45.4g/1.6oz [Focus Stick standalone, air]
116g/4.1oz [with Focus Stick, underwater]
Mount system INON ZD Mount INON SD Mount
Depth rating 60m / 196.9ft
Body material
/finishing
Corrosion resistant aluminum alloy
rigid black alumite, PC etc.
Lens material
/coating
Optical glass/both side coating,
Lens construction 2 groups 3 elements
View angle Approx. 45°[underwater]
Depth of field(*1) 4.8cm / 1.9in to 6.2cm / 2.4in
Compatible camera HERO4 and later
Remarks Compatible INON “ZD Front Mask” is required to use the attachment lens. Compatible INON “SD Front Mask” is required to use the attachment lens.

(*1) Measured DoF from foreground of the lens surface. Divide by 1.33 for visual distance underwater.

page top

Remarks

[When using the UCL-G55]
The UCL-G55 is designed only for underwater use. Using on land creates vignetting.

[When using for GoPro]
Set the camera's field of view (FOV)/Digital Lenses to [Wide] for quality-oriented, or [Linear] for magnification-oriented photography.
When using with HERO11 Black, HERO12 Black and HERO13 Black, shoot in 4:3 or 16:9 aspect ratio as vignetting will occur in 8:7 or [HyperView™] mode which compresses footage in 16:9 aspect ratio by using the full 8:7 sensor.
[SuperView™] mode is not recommended. The SuperView™ mode stretches both ends of the image inside the camera to fit into a 16:9 aspect ratio from originally obtained 4:3 aspect ratio image by the camera sensor. Since the edges of the frame are stretched horizontally, using an attachment lens further stretches the edges of the frame, resulting in an unnatural image.
Set the camera's image stabilization (HyperSmooth) to [Standard], [High], or [On]. Setting to [Off] will cause vignetting in image corners, and [Boost] will crop the image significantly.
The FOV/Digital Lenses setting [Wide] in Photo mode causes vignetting in image corners.

page top

Sample Movie

092
Video by Toru Kasuya
UFL-G140 SD
UCL-G100 SD / UCL-G55 SD
085
Video by Yasushi Setoguchi
UCL-G100 SD
UCL-G55 SD
