Optical D Cable Type L Rubber Bush Set

Optical D Cable SS Type L Rubber Bush Set 2

JAN code : 4570018120206

Manual
Optical D Cable SS Type L Rubber Bush Set 2
Free length: approx. 24 cm/9.4 in.
A set of an Optical D Cable SS Type L with Single Hole Rubber Bush Type L and Double Hole Rubber Bush Body. The rubber bush is directly linked with an underwater housing equipped with a cable adapter of 7 mm/0.3 in. diameter.

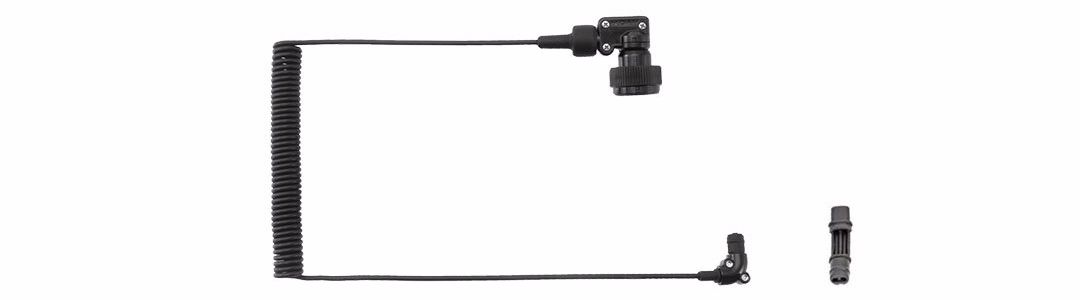

Optical D Cable Type L Rubber Bush Set 2

JAN code : 4570018120183

Manual
Optical D Cable Type L Rubber Bush Set 2
Free length: approx. 43 cm/17.0 in.
A set of an Optical D Cable L Type L with Single Hole Rubber Bush Type L and Double Hole Rubber Bush Body. The rubber bush is directly linked with an underwater housing equipped with a cable adapter of 7 mm/0.3 in. diameter.

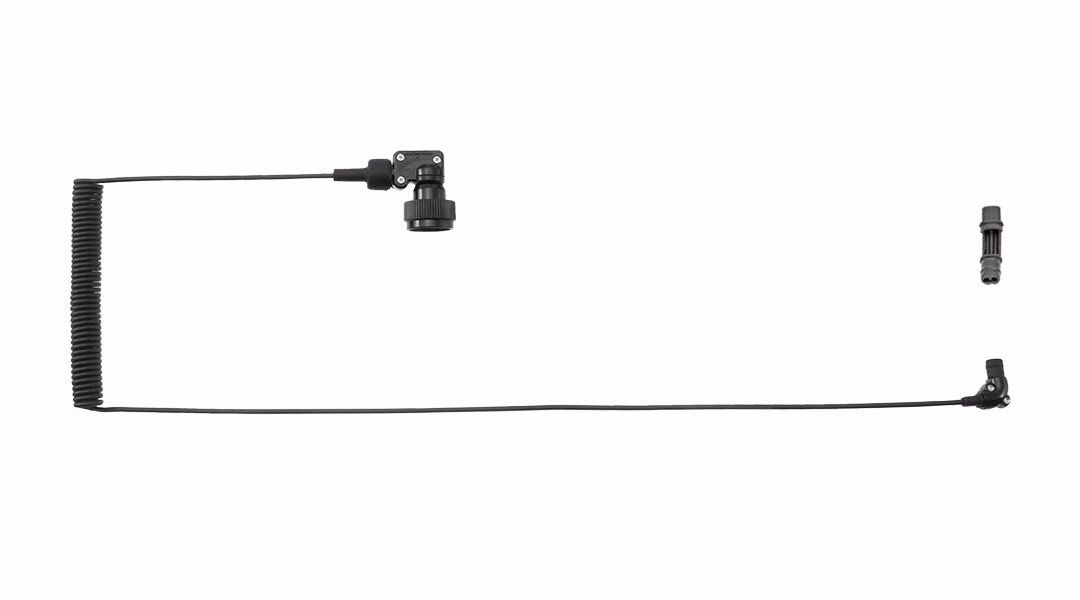

Optical D Cable L Type L Rubber Bush Set 2

JAN code : 4570018120190

Manual
Optical D Cable L Type L Rubber Bush Set 2
Free length: approx. 60 cm/23.6 in.

A set of an Optical D Cable L Type L with Single Hole Rubber Bush Type L and Double Hole Rubber Bush Body. The rubber bush is directly linked with an underwater housing equipped with a cable adapter of 7 mm/0.3 in. diameter.

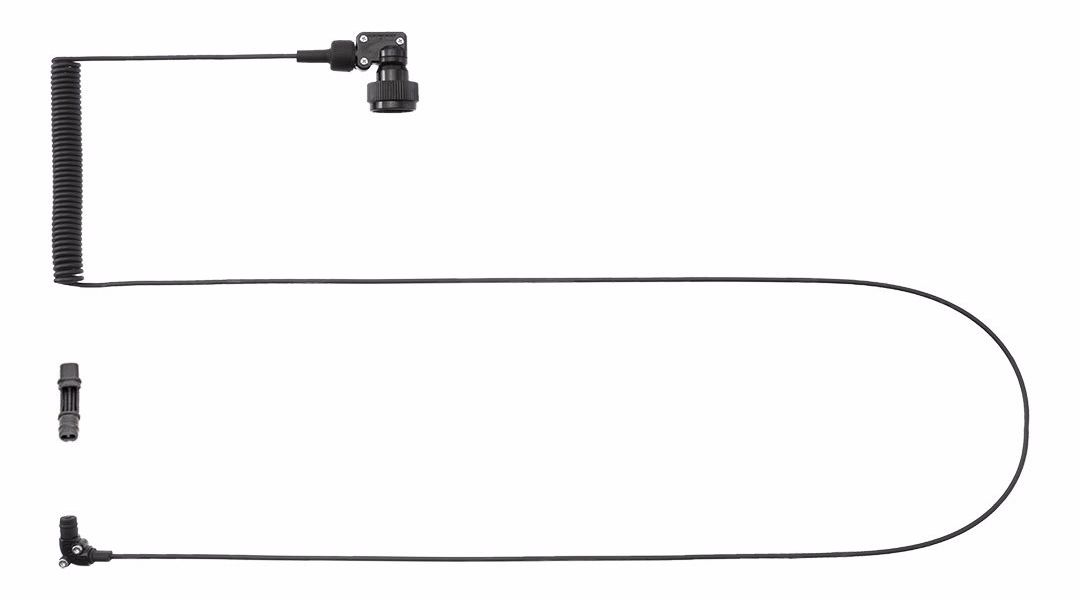

Optical D Cable LL Type L Rubber Bush Set 2

JAN code : 4570018120213

Manual
Optical D Cable LL Type L Rubber Bush Set 2
Free length: approx. 110 cm/43.3 in.
A set of an Optical D Cable LL Type L with Single Hole Rubber Bush Type L and Double Hole Rubber Bush Body. The rubber bush is directly linked with an underwater housing equipped with a cable adapter of 7 mm/0.3 in. diameter.

Single Hole Rubber Bush Type L

JAN code : 4570018120220

Manual
L型ゴムブッシュ(1穴)

An angled rubber bush to connect single cable to a 7 mm/0.3 in. diameter optical cable adapter of an underwater housing.

Double Hole Rubber Bush Type L

JAN code : 4570018120237

Manual
L型ゴムブッシュ(2穴)

An angled rubber bush to connect maximum two cables to a 7 mm/0.3 in. diameter optical cable adapter of an underwater housing.

Double Hole Rubber Bush for Fiber Optics

JAN code : 4562121435650


光ファイバー用2穴ゴムブッシュ

A rubber bush to connect maximum two cables to a 7 mm/0.3 in. diameter optical cable adapter of an underwater housing.

Rubber Bush-M11 Adapter

JAN code : 4562121437272

Manual
クリックすると拡大します

An adapter to connect a rubber bush and Optical D Cable to an underwater housing at optical connector with thread size M11/P1.0*.

* We have not confirmed the compatibility of specific products from other manufacturers. Please make sure to confirm that the product can be installed without any interference with related products.

Sensor Plug Non-wireless

センサープラグ・ワイヤレス非対応

Replace the connector with optional service part "Sensor Plug Non-wireless" to use with non-wireless type storobe Z-240 Type3,D-2000 Type3 or older model whiich has a bigger slave sensor.

Sensor Plug Wireless

Optional strobe connector to replace with original straight type strobe connector of INON optical cable products (non-Type L) to use for Z-330/D-200/S-2000/Z-240 Type4/D-2000 Type4 strobes.


Optical D Cable Type L / Cap W Set

L型光Dケーブル・キャップWセット

Set of Optical D Cable Type L (free length 43cm/17in), Shade Panel Unit/Holder Unit to mount the cable, and Clear Photo System etc. Packaged parts vary among different kits.

Optical D Cable SS Type L / Cap W Set

L型光DケーブルSS・キャップWセット

Cap W Set of Optical D Cable SS Type L (free length 24cm/9in) for a camera system where an external strobe is directly attached on an underwater housing at its accessory shoe via "Shoe Base Set".

Optical D Cable Type L / Bush W Set

L型光Dケーブル・ブッシュWセット各種

Set of Optical D Cable Type L (free length 43cm/17in), "Double Hole Rubber Bush for Fiber Optics" to hold the cable and necessary Clear Photo System or Shade Sticker, Rubber Bush Base etc. depending on camera model.

Optical D Cable SS Type L / Bush W Set

L型光DケーブルSS・ブッシュWセット各種

Bush W Set of Optical D Cable SS Type L (free length 24cm/9in) for a camera system where an external strobe is directly attached on an underwater housing at its accessory shoe via "Shoe Base Set".

Fiber optics set to connect Z-330/D-200/S-2000/Z-240/D-2000 and genuine compact digital camera housing from Canon/Olympus/Panasonic/Fujifilm/Sony/Nikon. Each set consists of necessary component parts for specific camera/housing including Optical D Cable Type L which is made of ultra-durable fiber optics, Shade Panel Unit or Holder Unit which mounts the cable on an underwater housing or Mount Base and Clear Photo System etc. Using fiber optics for connecting strobe provides more reliable strobe firing comparing to wireless slave connection especially in bright condition such as just under surface. Maximum two Optical D Cable Type L can be plugged in the light receiving part to support dual strobe configuration only with optional Optical D Cable Type L.

click to enlarge

Optical D Cable / Cap Set to be attached on white diffuser panel of genuine housing.

Optical D Cable / Cap Set to be attached on white diffuser panel of genuine housing.

Optical D Cable / Cap Set to be attached on AD Mount Base.

Optical D Cable / Cap Set to be attached on AD Mount Base.

Optical D Cable / Cap Set to be attached on a dedicated optical connector of Panasonic marine case

Optical D Cable / Cap Set to be attached on a dedicated optical connector of Panasonic marine case.

Optical D Cable Type L / Double Hole Rubber Bush Set

The rubber bush is directly plugged in a fiber optics connector of Olympus / Sea&Sea / Canon / Fujifilm underwater housings.

Rubber Bush Base

The rubber bush is plugged in a Rubber Bush Base pasted on a housing.

Clear Photo System

Clear Photo System

INON [Clear Photo System] effectively suppress transparent underwater housing drawbacks like backscatter, ghost or flare caused by camera's built-in flash to obtain more clear image.

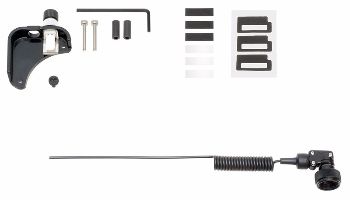

Optical D Cable SS Type L / Cap Set

Optical D Cable SS Type L / Cap Set

[Optical D Cable SS Type L / Cap Set] consists of shorter [Optical D Cable SS Type L] (free length: approx.24cm / 9in) which is suitable when using INON [ Shoe Base Set] to attach an external strobe on an underwater housing.

Double Hole Rubber Bush Set



Double Hole Rubber Bush for Fiber Optics
Rubber Bush Type L

It is easy to get benefit of reliable optical connection simply by plugging a fiber optics in a fiber optics connector of Olympus/Sea&Sea/Canon/Fujifim housings via Double Hole Rubber Bush for Fiber Optics or Rubber Bush Type L. For Sony/Ikelite housings, a rubber bush is plugged in a Rubber Bush Base pasted on a housing. Those who already have Optical D Cable product can connect the cable on a compatible system via this rubber bush. A Clear Photo System, Shade Sticker and/or Rubber Bush Base etc. may be required depending on camera model. (*1)(*2)(*3)(*4)(*5)(*6)


Double Hole Rubber Bush for Fiber Optics
Rubber Bush Type L
Rubber Bush Base




(*1) For Fujifilm WP-FXF80, optional [Cap W31/W32/W41/W44/W52 Clear Photo Film Set] and [Mirror Sticker (package of four mirror stickers)] are required to make same package as Optical D Cable Type L/Bush W52 Set.
(*2) For Olympus PT-050, optional [Clear Photo Film for Optical D Cable / Bush W55 Set] is required to make same package as Optical D Cable Type L/Bush W55 Set.
(*3) For Fujifilm WP-FXF500 optional [W56 Shade Sticker] and [Mirror Sticker (package of four mirror stickers)] are required to make same package as Optical D Cable Type L/Bush W56 Set.
(*4) For Canon WP-DC44 / WP-DC46 or Ikelite compact housings, optional [Rubber Bush Base W58] is required to make same package as Optical D Cable Type L/Bush W58 Set.
(*5) For Sony MPK-WH, optional [Rubber Bush Base W59] is required to make same package as Optical D Cable Type L/Bush W59 Set.
(*6) For Fujifilm WP-XQ1, optional [W60 Shade Sticker] and [Mirror Sticker (package of four mirror stickers)] are required to make same package as Optical D Cable Type L/Bush W60 Set.

System Table

[OLYMPUS]

Camera

Housing

Optical
D Cable
Con.

Clear
System
(*3)

Compatible "Optical D Cable" parts

Connecting point of "Optical D Cable" product or necessary accessory

When installing a strobe
on a housing
via "Grip Base D4" etc.
which combines
base tray and arm
When installing a strobe on
a housing or Mount Base
directly via "Shoe Base"
TG-6 PT-059 O X
(*7)
Optical D Cable Type L/
Rubber Bush Set2
Optical D Cable SS Type L/
Rubber Bush Set2
Housing Fiber Optics Adapter
Optical D Cable L Type L/
Rubber Bush Set2
Optical D Cable LL Type L/
Rubber Bush Set2
TG-5 PT-058 O X
(*7)
Optical D Cable Type L/
Rubber Bush Set2
Optical D Cable SS Type L/
Rubber Bush Set2
Housing Fiber Optics Adapter
Optical D Cable L Type L/
Rubber Bush Set2
Optical D Cable LL Type L/
Rubber Bush Set2
TG-4
TG-3
PT-056 O X
(*7)
Optical D Cable Type L/
Rubber Bush Set2
Optical D Cable SS Type L/
Rubber Bush Set2
Housing Fiber Optics Adapter
Optical D Cable L Type L/
Rubber Bush Set2
Optical D Cable LL Type L/
Rubber Bush Set2
TG-835
TG-830
PT-055 O X
(*7)
Optical D Cable Type L/
Rubber Bush Set2
Optical D Cable SS Type L/
Rubber Bush Set2
Housing Fiber Optics Adapter
Optical D Cable L Type L/
Rubber Bush Set2
Optical D Cable LL Type L/
Rubber Bush Set2
XZ-2 PT-054 O X
(*7)
Optical D Cable Type L/
Rubber Bush Set2
Optical D Cable SS Type L/
Rubber Bush Set2
Housing Holder Unit Connector
Optical D Cable L Type L/
Rubber Bush Set2
Optical D Cable LL Type L/
Rubber Bush Set2
TG-2
TG-1
PT-053 O X
(*7)
Optical D Cable Type L/
Rubber Bush Set2
Optical D Cable SS Type L/
Rubber Bush Set2
Housing Fiber Optics Adapter
Optical D Cable L Type L/
Rubber Bush Set2
Optical D Cable LL Type L/
Rubber Bush Set2
TG-820 PT-052 O X
(*7)
Optical D Cable Type L/
Rubber Bush Set2
Optical D Cable SS Type L/
Rubber Bush Set2
Housing Fiber Optics Adapter
Optical D Cable L Type L/
Rubber Bush Set2
Optical D Cable LL Type L/
Rubber Bush Set2
TG-810
TG-610
PT-051 O X
(*7)
Optical D Cable Type L/
Rubber Bush Set2
Optical D Cable SS Type L/
Rubber Bush Set2
Housing Fiber Optics Adapter
Optical D Cable L Type L/
Rubber Bush Set2
Optical D Cable LL Type L/
Rubber Bush Set2
XZ-1 PT-050 O O Optical D Cable Type L/
Bush W55 Set
Optical D Cable SS Type L/
Bush W55 Set
Housing Holder Unit Connector
μTOUGH-8010
μTOUGH-6020
PT-048 O O
(*7)
Optical D Cable Type L/
Rubber Bush Set2
Optical D Cable SS Type L/
Rubber Bush Set2
Housing Fiber Optics Adapter
Optical D Cable L Type L/
Rubber Bush Set2
Optical D Cable LL Type L/
Rubber Bush Set2
μTOUGH-6000 PT-047 O
(*5)
X
(*6)
Optical D Cable Type L/
Cap W48 Set
Optical D Cable SS Type L/
Cap W48 Set
28AD Mount Base PT-045/047
X
(*7)
Optical D Cable Type L/
Rubber Bush Set2
Optical D Cable SS Type L/
Rubber Bush Set2
Housing Fiber Optics Adapter
Optical D Cable L Type L/
Rubber Bush Set2
Optical D Cable LL Type L/
Rubber Bush Set2
FE-3010 PT-046 O O Optical D Cable Type L/
Cap W46 Set
- Housing Diffuser Panel
μTOUGH-8000 PT-045 O
(*5)
X
(*6)
Optical D Cable Type L/
Cap W48 Set
Optical D Cable SS Type L/
Cap W48 Set
28AD Mount Base PT-045/047
X
(*7)
Optical D Cable Type L/
Rubber Bush Set2
Optical D Cable SS Type L/
Rubber Bush Set2
Housing Fiber Optics Adapter
Optical D Cable L Type L/
Rubber Bush Set2
Optical D Cable LL Type L/
Rubber Bush Set2
FE-360 PT-044 O O Optical D Cable Type L/
Cap W46 Set
- Housing Diffuser Panel
μ1030SW PT-043 O O Optical D Cable Type L/
Cap W42 Set
Optical D Cable SS Type L/
Cap W42 Set
28AD Mount Base PT-043
μ1020 PT-042 O O Optical D Cable Type L/
Cap W32 Set
Optical D Cable SS Type L/
Cap W32 Set
Housing Diffuser Panel
μ850SW
μ790SW
PT-041 O O Optical D Cable Type L/
Cap W42 Set
Optical D Cable SS Type L/
Cap W42 Set
AD Mount Base PT-041
μ830
μ780
PT-039 O O Optical D Cable Type L/
Cap W32 Set
Optical D Cable SS Type L/
Cap W32 Set
Housing Diffuser Panel
SP-560UZ
SP-550UZ
PT-037 O
(*11)
X
(*10)
Optical D Cable Type L/
Cap W37 Set
- Housing Accessory Shoe
μ760 PT-036 O
(*2)
O Optical D Cable Type L/
Cap W7 Set
Optical D Cable SS Type L/
Cap W7 Set
Housing Diffuser Panel
μ795SW
μ770SW
PT-035 O O Optical D Cable Type L/
Cap W42 Set
Optical D Cable SS Type L/
Cap W42 Set
AD Mount Base PT-033/035
μ750 PT-034 O O Optical D Cable Type L/
Cap W32 Set
Optical D Cable SS Type L/
Cap W32 Set
Housing Diffuser Panel
μ725SW
μ720SW
PT-033 O O Optical D Cable Type L/
Cap W42 Set
Optical D Cable SS Type L/
Cap W42 Set
AD Mount Base PT-033/035
μ710 PT-032 O O Optical D Cable Type L/
Cap W7 Set
- Housing Diffuser Panel
SP-700 PT-031 O O Optical D Cable Type L/
Cap W21 Set
- AD Mount Base PT-031
SP-350 PT-030 O
(*2)
O Optical D Cable Type L/
Cap W20 Set
Optical D Cable SS Type L/
Cap W20 Set
AD Mount Base PT-030
μ600 PT-029 O
(*2)
O Optical D Cable Type L/
Cap W19 Set
Optical D Cable SS Type L/
Cap W19 Set
AD Mount Base PT-029
C-7070WZ PT-027 O O Optical D Cable Type L/
Cap W9 Set
- Housing Diffuser Panel
μ-40 PT-026 O O Optical D Cable Type L/
Cap W18 Set
- Housing Diffuser Panel
X-3 PT-024 O O Optical D Cable Type L/
Cap W15 Set
- Housing Diffuser Panel
C-8080WZ PT-023 O O Optical D Cable Type L/
Cap W16 Set
- Housing Accessory Shoe
C-770UZ
C-760UZ
PT-022 O O Optical D Cable Type L/
Cap W10 Set
- Housing Diffuser Panel
C-5060WZ PT-027
PT-020
O O Optical D Cable Type L/
Cap W9 Set
- Housing Diffuser Panel
C-755UZ
C-750UZ
C-745UZ
C-740UZ
PT-018 O O Optical D Cable Type L/
Cap W7 Set
- Housing Diffuser Panel
μ-30
μ-25
μ-20
μ-15
μ-10
PT-016 O O Optical D Cable Type L/
Cap W8 Set
- Housing Diffuser Panel
C-5050Z PT-015 O O Optical D Cable Type L/
Cap W18 Set
- Housing Diffuser Panel
X-2
X-1
PT-014 O O Optical D Cable Type L/
Cap W6 Set
- AD Mount Base PT-014
M67 Mount Base PT-014
C-40Z PT-012 O O Optical D Cable Type L/
Cap W4 Set
- AD Mount Base PT-012
M67 Mount Base PT-012
C-4100Z
C-4040Z
C-3100Z
C-3040Z
C-3030Z
C-3000Z
C-2040Z
C-2020Z
PT-010 O O Optical D Cable Type L/
Cap W2 Set
- Housing Diffuser Panel
C-300Z
C-200Z
PT-009 O O Optical D Cable Type L/
Cap W4 Set
- AD Mount Base PT-009
C-3040Z
C-3030Z
C-3000Z
C-2040Z
C-2020Z
PT-007 O O Optical D Cable Type L/
Cap W2 Set
- Housing Diffuser Panel
C-3030Z
C-3000Z
C-2020Z
PT-005 O O Optical D Cable Type L/
Cap W2 Set
- Cap W2 Holder Spacer

page top

[Canon]

Camera Housing Optical
D Cable
Con.
Clear
System
(*3)
Compatible "Optical D Cable" parts Connecting point of "Optical D Cable" product or necessary accessory
When installing a strobe
on a housing
via "Grip Base D4" etc.
which combines
base tray and arm
When installing a strobe on
a housing or Mount Base
directly via "Shoe Base"
PowerShot
G7 X Mark II
WP-DC55 O X
(*7)
Optical D Cable LL Type L/
Rubber Bush Set2
Optical D Cable SS Type L/
Rubber Bush Set2
Housing Covering Attachment
Optical D Cable L Type L/
Rubber Bush Set2
Optical D Cable Type L/
Rubber Bush Set2
PowerShot G7 X WP-DC54 O X
(*7)
Optical D Cable LL Type L/
Rubber Bush Set2
Optical D Cable SS Type L/
Rubber Bush Set2
Housing Covering Attachment
Optical D Cable L Type L/
Rubber Bush Set2
Optical D Cable Type L/
Rubber Bush Set2
PowerShot
G1 X Mark II
WP-DC53 O X
(*7)
Optical D Cable LL Type L/
Rubber Bush Set2
Optical D Cable SS Type L/
Rubber Bush Set2
Housing Covering Attachment
Optical D Cable L Type L/
Rubber Bush Set2
Optical D Cable Type L/
Rubber Bush Set2
PowerShot G16 WP-DC52 O X
(*7)
Optical D Cable LL Type L/
Rubber Bush Set2
Optical D Cable SS Type L/
Rubber Bush Set2
Housing Covering Attachment
Optical D Cable L Type L/
Rubber Bush Set2
Optical D Cable Type L/
Rubber Bush Set2
PowerShot S120 WP-DC51 O X
(*7)
Optical D Cable LL Type L/
Rubber Bush Set2
Optical D Cable SS Type L/
Rubber Bush Set2
Housing Covering Attachment
Optical D Cable L Type L/
Rubber Bush Set2
Optical D Cable Type L/
Rubber Bush Set2
PowerShot
SX280 HS
WP-DC49 O X
(*7)
Optical D Cable LL Type L/
Rubber Bush Set2
Optical D Cable SS Type L/
Rubber Bush Set2
Housing Covering Attachment
Optical D Cable L Type L/
Rubber Bush Set2
Optical D Cable Type L/
Rubber Bush Set2
PowerShot G15 WP-DC48 O X
(*7)
Optical D Cable LL Type L/
Rubber Bush Set2
Optical D Cable SS Type L/
Rubber Bush Set2
Housing Covering Attachment
Optical D Cable L Type L/
Rubber Bush Set2
Optical D Cable Type L/
Rubber Bush Set2
PowerShot S110 WP-DC47 O X
(*7)
Optical D Cable LL Type L/
Rubber Bush Set2
Optical D Cable SS Type L/
Rubber Bush Set2
Housing Covering Attachment
Optical D Cable L Type L/
Rubber Bush Set2
Optical D Cable Type L/
Rubber Bush Set2
PowerShot D20 WP-DC45 O X
(*7)
Optical D Cable LL Type L/
Rubber Bush Set2
Optical D Cable SS Type L/
Rubber Bush Set2
Housing Covering Attachment
Optical D Cable L Type L/
Rubber Bush Set2
Optical D Cable Type L/
Rubber Bush Set2
PowerShot G1 X WP-DC44 O X
(*19)
Optical D Cable Type L/
Bush W58 Set
- Directly attached on the housing
in front of the built-in flash
PowerShot
SX260 HS
WP-DC46 O X
(*19)
Optical D Cable Type L/
Bush W58 Set
- Directly attached on the housing
in front of the built-in flash
PowerShot S100 WP-DC43 O X
(*12)
Optical D Cable Type L/
Cap W51 Set
Optical D Cable SS Type L/
Cap W51 Set
28LD Mount Base DC43/47
PowerShot S95 WP-DC38 O X
(*12)
Optical D Cable Type L/
Cap W51 Set
Optical D Cable SS Type L/
Cap W51 Set
28LD Mount Base DC38
PowerShot S90 WP-DC35 O X
(*12)
Optical D Cable Type L/
Cap W51 Set
Optical D Cable SS Type L/
Cap W51 Set
28AD Mount Base DC35
PowerShot G12
PowerShot G11
WP-DC34 O O Optical D Cable Type L/
Cap W54 Set
- Housing Strap Eyelet
PowerShot G10 WP-DC28 O O Optical D Cable Type L/
Cap W53 Set
- Housing Strap Eyelet
PowerShot G9 WP-DC21 X
(*1)
- - - -
PowerShot A650IS WP-DC18 X
(*1)
- - - -
PowerShot A570IS WP-DC12 O O Optical D Cable Type L/
Cap W36 Set
- AD Mount Base DC12
PowerShot G7 WP-DC11 X
(*1)
- - - -
PowerShot A540 WP-DC2 O O Optical D Cable Type L/
Cap W29 Set
- AD Mount Base DC2
PowerShot S80 WP-DC1 O O Optical D Cable Type L/
Cap W23 Set
- 28AD Mount Base DC1
PowerShot A95 WP-DC50 O O Optical D Cable Type L/
Cap W3 Set
- AD Mount Base DC900/50
PowerShot S70
PowerShot S60
WP-DC40 O O Optical D Cable Type L/
Cap W23 Set
- 28AD Mount Base DC40
PowerShot A85
PowerShot A75
WP-DC30 O O Optical D Cable Type L/
Cap W3 Set
- AD Mount Base DC700/30
PowerShot S1 IS WP-DC20 O O Optical D Cable Type L/
Cap W18 Setc
- M67 Mount Base DC20
PowerShot A80 WP-DC900 O O Optical D Cable Type L/
Cap W3 Set
- AD Mount Base DC900/50
PowerShot A70
PowerShot A60
WP-DC700 O O Optical D Cable Type L/
Cap W3 Set
- AD Mount Base DC700/30
PowerShot S50
PowerShot S45
PowerShot S40
PowerShot S30
WP-DC300 O O Optical D Cable Type L/
Optical D Cable Type L/
- AD Mount Base DC300
M67 Mount Base DC300
PowerShot A40
PowerShot A30
WP-DC200S O O Optical D Cable Type L/
Cap W3 Set
- AD Mount Base DC200/200S
M67 Mount Base DC200/200S
PowerShot A20
PowerShot A10
WP-DC200S
WP-DC200
O O Optical D Cable Type L/
Cap W3 Set
- AD Mount Base DC200/200S
IXY 200F WP-DC36 O O Optical D Cable Type L/
Cap W45 Set
- 28AD Mount Base DC36
IXY D220IS WP-DC33 O O Optical D Cable Type L/
Cap W45 Set
- 28AD Mount Base DC33
IXY D510IS WP-DC32 O O Optical D Cable Type L/
Cap W50 Set
- 28AD Mount Base DC32
IXY D210IS WP-DC31 O O Optical D Cable Type L/
Cap W49 Set
- AD Mount Base DC31
IXY D110IS WP-DC29 O O Optical D Cable Type L/
Cap W30 Set
- AD Mount Base DC29
IXY D3000IS WP-DC27 O O Optical D Cable Type L/
Cap W44 Set
- AD Mount Base DC19/27
IXY D920IS WP-DC26 O O Optical D Cable Type L/
Cap W45 Set
- 28AD Mount Base DC26
IXY D95IS WP-DC24 O O Optical D Cable Type L/
Cap W30 Set
- AD Mount Base DC22/23/24
IXY D25IS WP-DC23 O O Optical D Cable Type L/
Cap W30 Set
- AD Mount Base DC22/23/24
IXY D20IS WP-DC22 O O Optical D Cable Type L/
Cap W30 Set
- AD Mount Base DC22/23/24
IXY D2000IS WP-DC19 O O Optical D Cable Type L/
Cap W27 Set
- AD Mount Base DC19/27
IXY D910IS WP-DC17 O O Optical D Cable Type L/
Cap W3 Set
- 28AD Mount Base DC17
IXY D810IS WP-DC15 O O Optical D Cable Type L/
Cap W31 Set
- AD Mount Base DC5/15
IXY D90 WP-DC14 O O Optical D Cable Type L/
Cap W30 Set
- AD Mount Base DC3/4/13/14
IXY D10 WP-DC13 O O Optical D Cable Type L/
Cap W30 Set
- AD Mount Base DC3/4/13/14
IXY D900IS WP-DC9 O O Optical D Cable Type L/
Cap W33 Set
- 28AD Mount Base DC9
IXY D1000 WP-DC7 O O Optical D Cable Type L/
Cap W27 Set
- AD Mount Base DC7
IXY D800IS WP-DC5 O O Optical D Cable Type L/
Cap W31 Set
- AD Mount Base DC5/15
IXY D70 WP-DC4 O O Optical D Cable Type L/
Cap W30 Set
- AD Mount Base DC3/4/13/14
IXY D80 WP-DC3 O O Optical D Cable Type L/
Cap W30 Set
- AD Mount Base DC3/4/13/14
IXY D700 WP-DC80 O O Optical D Cable Type L/
Cap W22 Set
- AD Mount Base DC70/80
IXY D600 WP-DC70 O O Optical D Cable Type L/
Cap W22 Set
- AD Mount Base DC70/80
IXY D500
IXY D450
IXY D400
WP-DC800 O O Optical D Cable Type L/
Cap W3 Set
- AD Mount Base DC800
IXY D300a WP-DC500 O O Optical D Cable Type L/
Cap W3 Set
- AD Mount Base DC100/500
  M67 Mount Base DC100/500
IXY D300 WP-DC100 O O Optical D Cable Type L/
Cap W3 Set
- AD Mount Base DC100/500
  M67 Mount Base DC100/500

page top

[Panasonic]

Camera Housing Optical
D Cable
Con.
Clear
System
(*3)
Compatible "Optical D Cable" parts
Connecting point of "Optical D Cable" product or necessary accessory

When installing a strobe
on a housing
via "Grip Base D4" etc.
which combines
base tray and arm
When installing a strobe on
a housing or Mount Base
directly via "Shoe Base"
LUMIX FT5 MCFT5 O O Optical D Cable Type L/
Cap W35 Set
Optical D Cable SS Type L/
Cap W35 Set
Housing Holder Unit Connector
LUMIX FT4
LUMIX FT3
MCFT3 O O Optical D Cable Type L/
Cap W35 Set
Optical D Cable SS Type L/
Cap W35 Set
Housing Holder Unit Connector
LUMIX FT2 MCFT2 O O Optical D Cable Type L/
Cap W35 Set
Optical D Cable SS Type L/
Cap W35 Set
Housing Holder Unit Connector
LUMIX FT1 MCFT1 O O Optical D Cable Type L/
Cap W35 Set
Optical D Cable SS Type L/
Cap W35 Set
Housing Holder Unit Connector
LUMIX TZ40 MCTZ40 O O Optical D Cable Type L/
Cap W35 Set
Optical D Cable SS Type L/
Cap W35 Set
Housing Holder Unit Connector
LUMIX TZ35 MCTZ35 O O Optical D Cable Type L/
Cap W35 Set
Optical D Cable SS Type L/
Cap W35 Set
Housing Holder Unit Connector
LUMIX TZ30 MCTZ30 O O Optical D Cable Type L/
Cap W35 Set
Optical D Cable SS Type L/
Cap W35 Set
Housing Holder Unit Connector
LUMIX TZ20 MCTZ20 O O Optical D Cable Type L/
Cap W35 Set
Optical D Cable SS Type L/
Cap W35 Set
Housing Holder Unit Connector
LUMIX TZ10 MCTZ10 O O Optical D Cable Type L/
Cap W35 Set
Optical D Cable SS Type L/
Cap W35 Set
Housing Holder Unit Connector
LUMIX TZ7 MCTZ7 O O Optical D Cable Type L/
Cap W35 Set
Optical D Cable SS Type L/
Cap W35 Set
Housing Holder Unit Connector
LUMIX TZ5 MCTZ5 O O Optical D Cable Type L/
Cap W35 Set
Optical D Cable SS Type L/
Cap W35 Set
Housing Holder Unit Connector
LUMIX TZ3 MCTZ3 O O Optical D Cable Type L/
Cap W35 Set
- Housing Holder Unit Connector
LUMIX ZX3 MCZX3 O O Optical D Cable Type L/
Cap W35 Set
Optical D Cable SS Type L/
Cap W35 Set
Housing Holder Unit Connector
LUMIX ZX1 MCZX3
MCZX1
O O Optical D Cable Type L/
Cap W35 Set
Optical D Cable SS Type L/
Cap W35 Set
Housing Holder Unit Connector
LUMIX FX40 MCFX40 O O Optical D Cable Type L/
Cap W35 Set
Optical D Cable SS Type L/
Cap W35 Set
Housing Holder Unit Connector
LUMIX FX37
LUMIX FX35
MCFX35 O O Optical D Cable Type L/
Cap W35 Set
Optical D Cable SS Type L/
Cap W35 Set
Housing Holder Unit Connector
LUMIX FX33
LUMIX FX30
MCFX30 O O Optical D Cable Type L/
Cap W35 Set
- Housing Holder Unit Connector
LUMIX FX07
LUMIX FX01
MCFX07
MCFX01
O O Optical D Cable Type L/
Cap W26 Set
- 28AD/AD Mount Base MCFX01/07/30
LUMIX FS3 MCFS5 O O Optical D Cable Type L/
Cap W35 Set
Optical D Cable SS Type L/
Cap W35 Set
Housing Holder Unit Connector
LUMIX FS2
LUMIX FS1
MCFX07 O O Optical D Cable Type L/
Cap W26 Set
- 28AD/AD Mount Base
MCFX01/07/30

page top

[FUJIFILM]

Camera Housing Optical
D Cable
Con.
Clear
System
(*3)
Compatible "Optical D Cable" parts Connecting point of "Optical D Cable" product or necessary accessory
When installing a strobe
on a housing
via "Grip Base D4" etc.
which combines
base tray and arm
When installing a strobe on
a housing or Mount Base
directly via "Shoe Base"
FUJIFILM XQ2 WP-XQ1 O X
(*16)
Optical D Cable Type L/
Bush W60 Set
Optical D Cable SS Type L/
Bush W60 Set
Housing Holder Unit Connector
FUJIFILM XQ1 WP-XQ1 O X
(*16)
Optical D Cable Type L/
Bush W60 Set
Optical D Cable SS Type L/
Bush W60 Set
Housing Holder Unit Connector
FinePix F600EXR
FinePix F550EXR
FinePix F300EXR
WP-FXF500 O X
(*16)
Optical D Cable Type L/
Bush W56 Set
Optical D Cable SS Type L/
Bush W56 Set
Housing Holder Unit Connector
FinePix F80EXR WP-FXF80 O O Optical D Cable Type L/
Bush W52 Set
Optical D Cable SS Type L/
Bush W52 Set
Housing Holder Unit Connector
FinePix Z250fd
FinePix Z200fd
FinePix Z100fd
WP-FXZ100 X
(*1)
- - - -
FinePix F200EXR WP-FXF200 O O Optical D Cable Type L/
Cap W41 Set
Optical D Cable SS Type L/
Cap W41 Set
Housing Flash Diffuser
FinePix F100fd WP-FXF100 O O Optical D Cable Type L/
Cap W41 Set
Optical D Cable SS Type L/
Cap W41 Set
Housing Flash Diffuser
FinePix F50fd WP-FXF50 O O Optical D Cable Type L/
Cap W39 Set
- AD Mount Base FXF50
FinePix F40fd WP-FXF40 O O Optical D Cable Type L/
Cap W34 Set
- AD Mount Base FXF40
FinePix F31fd
FinePix F30
WP-FXF30 O O Optical D Cable Type L/
Cap W27 Set
- AD Mount Base FXF30
FinePix F11
FinePix F10
WP-FXF10 O O Optical D Cable Type L/
Cap W3 Set
- AD Mount Base FXF10
FinePix F810
FinePix F710
WP-FX701 O O Optical D Cable Type L/
Cap W13 Set
- AD Mount Base FX701

page top

[Sony]

Camera Housing Optical
D Cable
Con.
Clear
System
(*3)
Compatible "Optical D Cable" parts Connecting point of "Optical D Cable" product or necessary accessory
When installing a strobe
on a housing
via "Grip Base D4" etc.
which combines
base tray and arm
When installing a strobe on
a housing or Mount Base
directly via "Shoe Base"
DSC-RX100M5
DSC-RX100M4
DSC-RX100M3
DSC-RX100M2
DSC-RX100
MPK-URX100A O X
(*7)
Optical D Cable Type L/
Rubber Bush Set2
Optical D Cable SS Type L/
Rubber Bush Set2
Housing External Flash Adapter
Optical D Cable L Type L/
Rubber Bush Set2
Optical D Cable LL Type L/
Rubber Bush Set2
DSC-T90 MPK-THGB O X
(*6)
Optical D Cable Type L/
Cap W47 Set
- AD Mount Base THG/THGB
DSC-T700
DSC-T77
MPK-THGB
MPK-THG
O X
(*6)
Optical D Cable Type L/
Cap W47 Set
- AD Mount Base THG/THGB
DSC-WX200
DSC-WX100
DSC-WX50
MPK-WH O X
(*19)
Optical D Cable Type L/
Bush W59 Set
Optical D Cable SS Type L/
Cap W59 Set
Directly attached on the housing
in front of the built-in flash
DSC-W300
DSC-W170
MPK-WD O O Optical D Cable Type L/
Cap W43 Set
- M67 Mount Base WD
DSC-W7
DSC-W5
DSC-W1
MPK-WA O O Optical D Cable Type L/
Cap W24 Set
- AD Mount Base WA
DSC-N2
DSC-N1
MPK-NA O O Optical D Cable Type L/
Cap W25 Set
- AD Mount Base NA
DSC-P150
DSC-P100
MPK-PHB O O Optical D Cable Type L/
Cap W14 Set
- AD Mount Base PHB

page top

[Nikon]

Camera Housing Optical
D Cable
Con.
Clear
System
(*3)
Compatible "Optical D Cable" parts Connecting point of "Optical D Cable" product or necessary accessory
When installing a strobe
on a housing
via "Grip Base D4" etc.
which combines
base tray and arm
When installing a strobe on
a housing or Mount Base
directly via "Shoe Base"
COOLPIX E7900
COOLPIX E5900
WP-CP4 O O Optical D Cable Type L/
Cap W11 Set
- AD Mount Base CP4/2
COOLPIX E5200
COOLPIX E4200
WP-CP2 O O Optical D Cable Type L/
Cap W11 Set
- AD Mount Base CP4/2
COOLPIX E4100
COOLPIX E3200
COOLPIX E2200
WP-CP1 O O Optical D Cable Type L/
Cap W12 Set
- AD Mount Base CP1

page top

[Ikelite]

Camera Housing Optical
D Cable
Con.
Clear
System
(*3)
Compatible "Optical D Cable" parts Connecting point of "Optical D Cable" product or necessary accessory
When installing a strobe
on a housing
via "Grip Base D4" etc.
which combines
base tray and arm
When installing a strobe on
a housing or Mount Base
directly via "Shoe Base"
Sony
DSC-RX100
#6116.10 O X
(*12)
Optical D Cable Type L/
Bush W58 Set
- -
Canon
PowerShot S120
#6242.12 O X
(*12)
Optical D Cable Type L/
Bush W57 Set
- -
Canon
PowerShot S110
#6242.11 O X
(*12)
Optical D Cable Type L/
Bush W57 Set
- -
Canon
PowerShot S100
#6242.10 O X
(*12)
Optical D Cable Type L/
Bush W57 Set
- -
Canon
PowerShot S95
#6242.95 O X
(*12)
Optical D Cable Type L/
Bush W57 Set
- -
Canon
PowerShot S90
#6242.90 O X
(*12)
Optical D Cable Type L/
Bush W57 Set
- -

page top

[Digital SLR]

Camera Housing Optical
D Cable
Con.
Clear
System
(*3)
Compatible "Optical D Cable" parts Connecting point of
"Optical D Cable"
product or necessary accessory
Olympus
OM-D E-M1
Mark II
PT-EP14 O X
(*7)
Optical D Cable LL Type L/ Rubber Bush Set2 -
Optical D Cable L Type L/ Rubber Bush Set2
Optical D Cable Type L/ Rubber Bush Set2
Optical D Cable SS Type L/ Rubber Bush Set2   (*17)
OM-D E-M5
Mark II
PT-EP13 O X
(*7)
Optical D Cable LL Type L/ Rubber Bush Set2 -
Optical D Cable L Type L/ Rubber Bush Set2
Optical D Cable Type L/ Rubber Bush Set2
Optical D Cable SS Type L/ Rubber Bush Set2   (*17)
PEN E-PL7 PT-EP12 O X
(*7)
Optical D Cable LL Type L/ Rubber Bush Set2 -
Optical D Cable L Type L/ Rubber Bush Set2
Optical D Cable Type L/ Rubber Bush Set2
Optical D Cable SS Type L/ Rubber Bush Set2   (*17)
OM-D E-M1 PT-EP11 O X
(*7)
Optical D Cable LL TypeL/ Rubber Bush Set2 -
Optical D Cable L Type L/ Rubber Bush Set2
Optical D Cable Type L/ Rubber Bush Set2
Optical D Cable SS Type L/ Rubber Bush Set2   (*17)
PEN E-PL5 PT-EP10 O X
(*7)
Optical D Cable LL Type L/ Rubber Bush Set2 -
Optical D Cable L Type L/ Rubber Bush Set2
Optical D Cable Type L/ Rubber Bush Set2
Optical D Cable SS Type L/ Rubber Bush Set2   (*17)
OM-D E-M5 PT-EP08 O X
(*7)
Optical D Cable LL TypeL/ Rubber Bush Set2 -
Optical D Cable L Type L/ Rubber Bush Set2
Optical D Cable Type L/ Rubber Bush Set2
Optical D Cable SS Type L/ Rubber Bush Set2   (*17)
PEN E-PM1 PT-EP06L O X
(*7)
Optical D Cable LL Type L/ Rubber Bush Set2 -
Optical D Cable L Type L/ Rubber Bush Set2
Optical D Cable Type L/ Rubber Bush Set2
Optical D Cable SS Type L/ Rubber Bush Set2   (*17)
PEN E-PL3 PT-EP05L O X
(*7)
Optical D Cable LL TypeL/ Rubber Bush Set2 -
Optical D Cable L Type L/ Rubber Bush Set2
Optical D Cable Type L/ Rubber Bush Set2
Optical D Cable SS Type L/ Rubber Bush Set2   (*17)
PEN E-PL2 PT-EP03 O X
(*7)
Optical D Cable LL Type L/ Rubber Bush Set2 -
Optical D Cable L Type L/ Rubber Bush Set2
Optical D Cable Type L/ Rubber Bush Set2
Optical D Cable SS Type L/ Rubber Bush Set2   (*17)
PEN E-PL1 PT-EP01 O X
(*7)
Optical D Cable LL Type L/ Rubber Bush Set2 -
Optical D Cable L Type L/ Rubber Bush Set2
Optical D Cable Type L/ Rubber Bush Set2
Optical D Cable SS Type L/ Rubber Bush Set2   (*17)
E-620 PT-E06 O X
(*7)
Optical D Cable LL TypeL/ Rubber Bush Set2 -
Optical D Cable L TypeL/ Rubber Bush Set2
Optical D Cable Type L/ Rubber Bush Set2
Optical D Cable SS Type L/ Rubber Bush Set2   (*17)
E-520 PT-E05 O X
(*7)
Optical D Cable LL Type L/ Rubber Bush Set2 -
Optical D Cable L Type L/ Rubber Bush Set2
Optical D Cable Type L/ Rubber Bush Set2
Optical D Cable SS Type L/ Rubber Bush Set2   (*17)
E-410 PT-E03 O
(*11)
X
(*10)
Optical D Cable L Type L/ Cap W38 Set -
Nikon
Nikon 1 J4 WP-N3 O X
(*7)
Optical D Cable LLType L Housing Fiber-optics
Cable Soket Cap
Optical D Cable LType L
Optical D Cable Type L
Optical D Cable SS Type L  (*17)
Nikon 1 J3 WP-N2 O X
(*7)
Optical D Cable LLType L Housing Fiber-optics
Cable Soket Cap
Optical D Cable LType L
Optical D Cable Type L
Optical D Cable SS Type L  (*17)
Nikon 1 J2 WP-N1 O X
(*7)
Optical D Cable LL Type L Housing Fiber-optics
Cable Soket Cap
Optical D Cable L Type L
Optical D Cable Type L
Optical D Cable SS Type L  (*17)
Panasonic
LUMIX GF2 X-2 for GF2 O X
(*7)
Optical D Cable LLType L -
Optical D Cable LType L
Optical D Cable Type L
Optical D Cable SS Type L  (*17 *18)
LUMIX GF1 X-2 for GF1 O X
(*7)
Optical D Cable LL Type L -
Optical D Cable L Type L
Optical D Cable Type L
Optical D Cable SS Type L  (*17 *18)
Canon
EOS80D X-2 for EOS80D O X
(*7)
Optical D Cable LL Type L -
Optical D Cable L Type L
Optical D Cable Type L
Optical D Cable SS Type L  (*17 *18)
EOS6D X-2 for EOS6D O X
(*7)
Optical D Cable LL Type L -
Optical D Cable L Type L
Optical D Cable Type L
Optical D Cable SS Type L  (*17 *18)
EOS 70D X-2 for EOS70D O X
(*7)
Optical D Cable LL Type L -
Optical D Cable L Type L
Optical D Cable Type L
Optical D Cable SS Type L  (*17 *18)
EOS 60D X-2 for EOS60D O X
(*7)
Optical D Cable LL Type L -
Optical D Cable L Type L
Optical D Cable Type L
Optical D Cable SS Type L  (*17 *18)
EOS 50D
EOS 40D
X-2 for EOS50D/40D O X
(*7)
Optical D Cable LLType L -
Optical D Cable LType L
Optical D Cable Type L
Optical D Cable SS Type L  (*17 *18)
EOS 30D X-2 for EOS30D O X
(*7)
Optical D Cable LL Type L -
Optical D Cable L Type L
Optical D Cable Type L
Optical D Cable SS Type L  (*17 *18)
EOS 20D X-2 for EOS20D O X
(*7)
Optical D Cable LLType L -
Optical D Cable LType L
Optical D Cable Type L
Optical D Cable SS Type L  (*17 *18)
EOS 10D X-2 for EOS10D O X
(*7)
Optical D Cable LL Type L -
Optical D Cable L Type L
Optical D Cable Type L
Optical D Cable SS Type L  (*17 *18)

page top

(*1) Compatible "Optical D Cable" product is not available. Use wireless connection.
(*2) There is no dedicated fiber optics set using the Optical D Cable SS Type L.
(*3) Clear Photo Films are included in "Optical D Cable/Cap Set" products for Clear Photo System compatible camera system.
(*5) Compatible "Optical D Cable" product varies depending on whether using a Mount Base or not.
(*6) A clear photo film is not included since "Optical D Cable" product or "Mount Base" product blocks built-in flash light.
(*7) A clear photo film is not included since the housing design does not allow the built-in flash light pass through.
(*10) A shade rubber sheet is supplied instead of a clear photo film.
(*11) When installing compatible Optical D Cable Cap Set, Shoe Base is not usable.
(*12) The camera is not compatible with Clear Photo System since the built-in flash automatically rises (Clear Photo System Film does not come with compatible Optical D Cable Type L / Cap Set).
(*16) As the built-in flash structure is not supported by Clear Photo System film, Clear Photo System film is not included. Attaching supplied Shade Sticker can suppress exposure of the built-in flash light.
(*17) When attaching a strobe directly on an underwater housing via Shoe Base products.
(*18) "Shoe Base Adapter X-2" is necessary.
(*19) Not compatible with Clear Photo System Film due to the built-in flash structure thus compatible fiber optics kit does not come with Clear Photo System Film. Using a Rubber Bush Base and Rubber Bush Sticker packaged in compatible fiber optics kit may suppress exposure of the built-in flash.
