UWL-67 XD

UCL-67 XD Underwater Close-up Lens

JAN/EAN code : 4570018120282

*Optional “XD Mount” is required.

+15 diopter

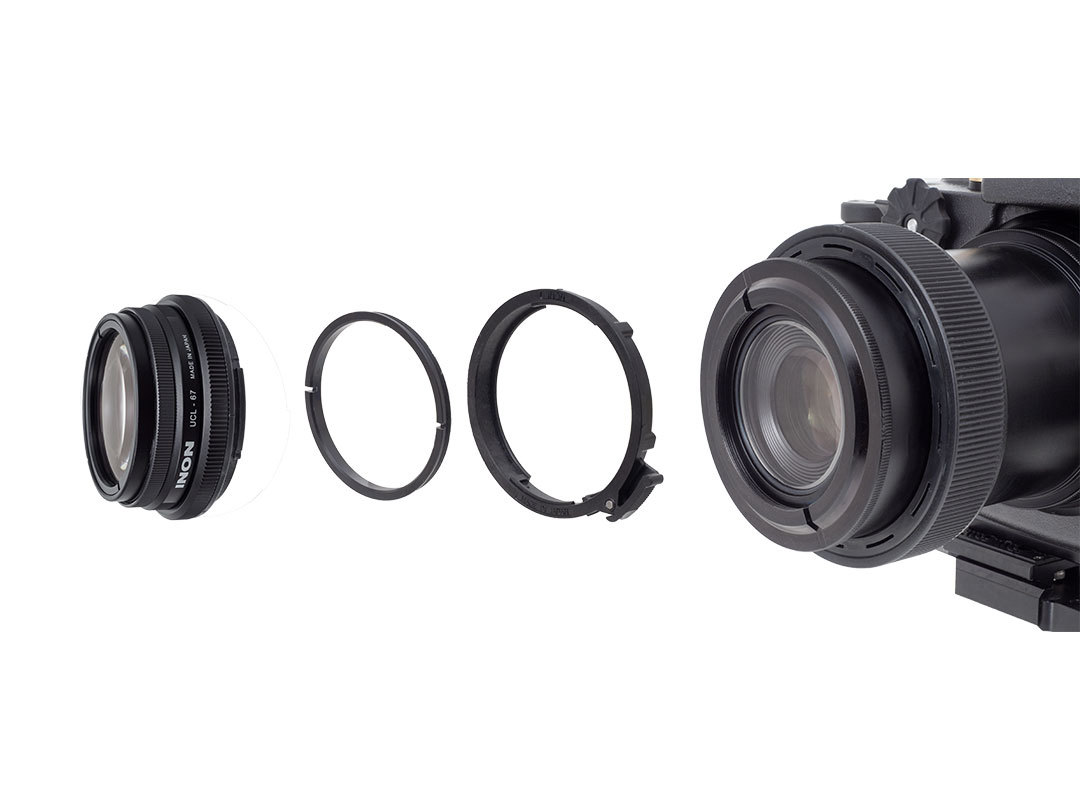

Can be attached on a housing/lens port equipped with standard M67 screw mount




XD Mount" for one-touch lens attachment and removal
The newly developed "XD Mount" enables one-touch lens attachment and removal. The "XD Mount" on a lens provides high durability, thin design without compromising lens optical performance and speedy lens attachment/removal in combination with XD Mount on housing side which has reasonable price and anti-slip lock function.

Features
The UCL-67 XD underwater close-up lens is designed to deliver high magnification yet superior image quality best suited to full frame SLR macro lenses of focal length 60mm - 100mm with comfortable long working distance enabling easy lighting. The lens also supports mirrorless as well as compact system.



Compatible Lens
A telephoto macro lens with a minimum focus distance longer than 20cm is recommended (*1)(*2)
Using short minimum focus distance lenses will reduce the magnification.


(*1) Vignetting may be observed depends on the distance between master lens and lens port glass and/or UCL-67 and lens port glass.

(*2) Only usable when the focal length is between 60mm and 100mm range at 35mm film equivalent. Beyond this range, there will be vignetting at the wide side and deteriorated image quality at the telephoto side.

Powerful magnification with underwater focal length 67mm (+15 diopter). Maximum magnification of the UCL-67 with range of 100mm macro lens for full frame SLR is 2.76x (area ratio: 7.65x) at the minimum focusing distance. (*3)

While the UCL-67 delivers high magnification, it still offers long working distance. When using with 100mm range macro lens for SLR, working distance is 52mm (83.4mm from housing port surface) at minimum focusing distance (*3).
Together with its compact size, the lens supports friendly lighting even at minimum focusing distance.

(*3) When using for AF-S VR Micro-Nikkor 105mm f/2.8G IF-ED.

CANON RF100mm F2.8 L MACRO IS USM
Without close-up lens
Without close-up lens
With UCL-67 XD
With UCL-67 XD
Without close-up lens
Without close-up lens
With UCL-67 XD
With UCL-67 XD

The lens is consists of 4 elements in 3 groups using high refractive index glass to accommodate with a macro lens for full-frame digital SLR with compact body yet delivering high magnification and superior image quality.

Employing achromatic lens effectively suppresses chromatic aberration and anti-reflection coating on all surfaces suppresses flare/ghost. Designed sole use underwater to provide effectively suppressed aberrations in all focal range and unparalleled high quality image on any supported shooting range. (*4)

(*4) This lens is designed for underwater use only. Using on land will have less magnification, distortion, vignetting etc.


Optional "Lens Adapter Ring for UCL-67/90" is attached on the front end of the UCL-67 lens barrel allowing to stack INON M67 series, "UCL-165M67"/"UCL-330" to support even higher magnification for super macro imaging needs. (*5)

(*5) Other higher magnification close-up lens, "UCL-67 M67", "UCL-90 M67" and "UCL-100M67"are not usable as those combinations will have significantly degrade image quality.


INON unique bayonet mount “XD Mount

XD Mount Conversion Set for UCL-90/UCL-67

XD Mount Converter for UCL-90/UCL-67

This conversion ring allows a user of the close-up lenses "UCL-90 M67", "UCL-90 LD", "UCL-67 M67" and "UCL-67 LD" to convert the lens to XD Mount type. Note that a Phillips head precision screwdriver is required.
