INON XD Mount

XD Mount for PT-056/058/059

JAN/EAN code : 4570018120305

For Olympus TG housings

XD Mount for URX100A

JAN/EAN code : 4570018120312

For Sony RX100 series housing

XD Mount for M67 Port

JAN/EAN code : 4570018120329

For housing/lens port equipped

with M67 thread

M27-XD Mount Converter
for UFL-M150 ZM80

JAN/EAN code : 4570018120336

Exclusively for UFL-M150 ZM80

M67-XD Mount Converter

JAN/EAN code : 4570018120343

For M67 screw mount lenses

"XD Mount" for quick lens attachment and removal
The newly developed "XD Mount" enables one-touch lens attachment and removal. By attaching the XD Mount on a housing, you can attach and remove a compatible XD Mount lens easily, securely and quickly. The "XD Mount" is free from lens anchoring due to salt built-up that would be the case with screw mount lenses.

Wide selection to fit each housing
The XD Mount is available in three types. The "XD Mount for PT-056/058/059" for Olympus "Tough TG" series housing, the "XD Mount for URX100A" for Sony "RX100" series housing and the "XD Mount for M67 Port" for a housing or port with M67 thread.

	Camera	Housing	Compatible XD Mount
Olympus	TG-4/TG-3	PT-056 (*1)	XD Mount for PT-056/058/059
	TG-5	PT-058
	TG-6	PT-059
Sony	RX100 (DSC-RX100)	MPK-URX100A	XD Mount for URX100A (*2)
	RX100II (DSC-RX100M2)
	RX100III (DSC-RX100M3)
	RX100IV (DSC-RX100M4)
	RX100V (DSC-RX100M5)

(*1)The optical cable adapter "PFCA-02" provided with the "PT-056" is not usable because it interferes with the "XD Mount". Please remove it or use optional "PFCA-03".
(*2) The "diffuser" supplied with the housing cannot be attached when the "XD Mount" is installed. Remove it or use the "External flash adapter" included in the housing.

	Compatible XD Mount
Housing/port equipped with M67 thread	XD Mount for M67 Port

PT-056 set-up example

MPK-URX100A set-up example

M67 port set-up example

	Camera	Housing	Compatible XD Mount
Olympus	TG-4/TG-3	PT-056 (*1)	XD Mount for PT-056/058/059
	TG-5	PT-058
	TG-6	PT-059
Sony	RX100(DSC-RX100)	MPK-URX100A	XD Mount for URX100A (*2)
	RX100II(DSC-RX100M2)
	RX100III(DSC-RX100M3)
	RX100IV(DSC-RX100M4)
	RX100V(DSC-RX100M5)

PT-056 set-up example

MPK-URX100A set-up example

	Compatible XD Mount
Housing/port equipped with M67 thread	XD Mount for M67 Port

M67 port set-up example

Ultra-slim design without compromising optical performance
Extremely slim and compact as an optional exterior mount part. By keeping optimal distance between master lens and conversion lens, high image quality is achieved when using a wide conversion lens.

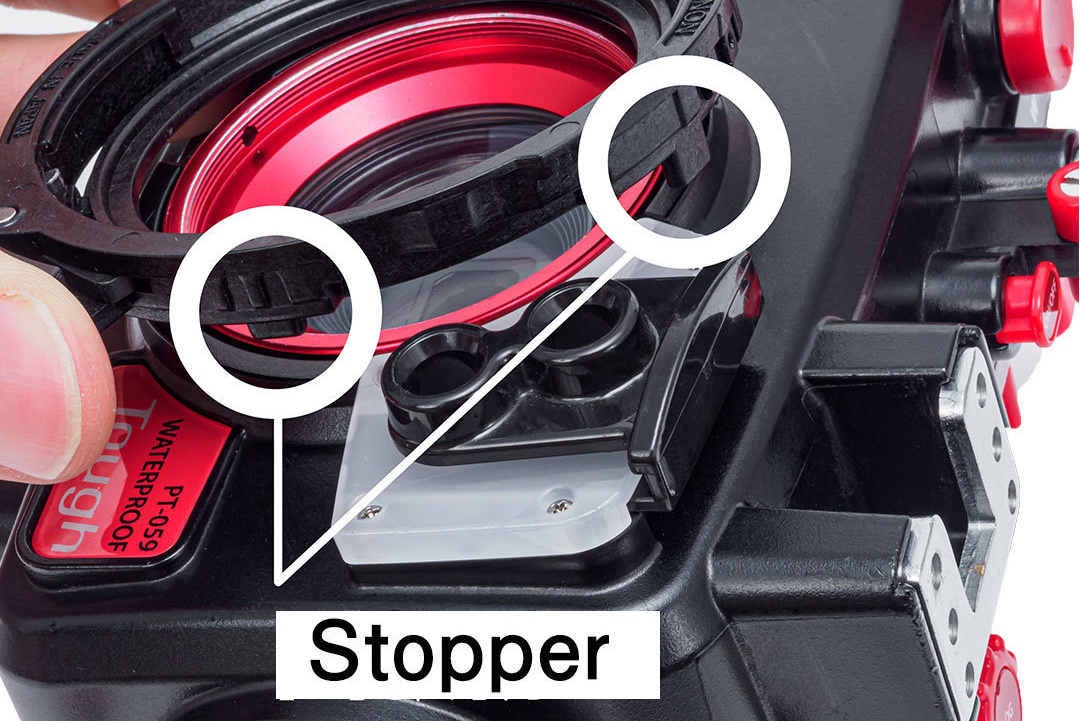

The anti-rotation design prevents loosening from rattling
Each "XD Mount" product is equipped with an anti-rotation design which keeps the same position of the mount part on a housing. This design prevents loose mount parts from rattling and also eliminates hood displacement of a wide conversion lens which tends to occur when a conversion lens is repeatedly attached and removed.

Locking mechanism with a large lever to prevent the lens from falling out
All "XD Mount" are equipped with a locking mechanism to prevent lens dropping. A large lever ensures proper functioning and easy to operate to enhance speedy lens exchange.

Olympus "optical fiber cable adapter PFCA-03" can be used as it is.
The "XD Mount for PT-056/058/059" designed exclusively for Olympus TG series is usable with "PFCA-03". Together with INON "Optical D Cable Type L Rubber Bush Set 2", you can enjoy stress-free strobe shooting.

Variety of XD lens holders provide more convenient underwater photography
Using various types of XD Lens Holder enables you to switch smoothly between wide and macro. The "XD Lens Holder Shoe Base" is directly attached on top of a housing to hold a lens holder without using an arm to make the entire system very compact. The "XD Mount" type is newly added to existing lens holder for arm to expand underwater system.

XD Lens Holder Shoe Base setup example

(Sony MPK-URX100A)

XD Lens Holder Shoe Base setup example

(Olympus PT-059)

XD Lens Holder Shoe Base

Stick Arm SS-T, M5 Joint.

Float Arm S,

Easy to install on housing
No separate tools are required, as it can be installed by simply using the supplied tool.

Convert the versatile M67 to XD mount
The "XD Mount M67 Port" is highly versatile enabling to use XD Mount series lenses on M67 lens port or housings equipped with M67 lens mount.

XD Mount package
The "XD Mount for PT056/058/059", "XD Mount for URX100A" and "XD Mount for M67 Port" come with a tool to attach the mount. The housing front cap is also included to protect the housing lens port when carrying.

XD Mount Converter features
Enables you to convert UFL-M150 ZM80 or M67 close-up lens to XD mount.

M27-XD Mount Converter
Conversion ring to use "UFL-M150 ZM80" with XD Mount.
M67-XD Mount Converter
A conversion ring to use M67 close-up lens with XD mount.

The "M67-XD Mount Converter" is not compatible with the M67 wide conversion lens since the distance between the housing lens surface and the wide conversion lens is too far.
