Nomenclature of Z-330 (front view)
1) Strobe Light Shade
2) Focus Light
3) Flash Tubes
4) Heat Radiation Ring
5) Slave Sensor
6) Sensor Cap
Nomenclature of Z-330 (bottom view)
7) Battery Box
8) Battery Box Inner Lid
9) Battery Box Inner Lid Screw
10) Battery Box Outer Cap
11) Sync Connector Cap
12) Sync Connector
13) Adapter/Joint Base(M6)

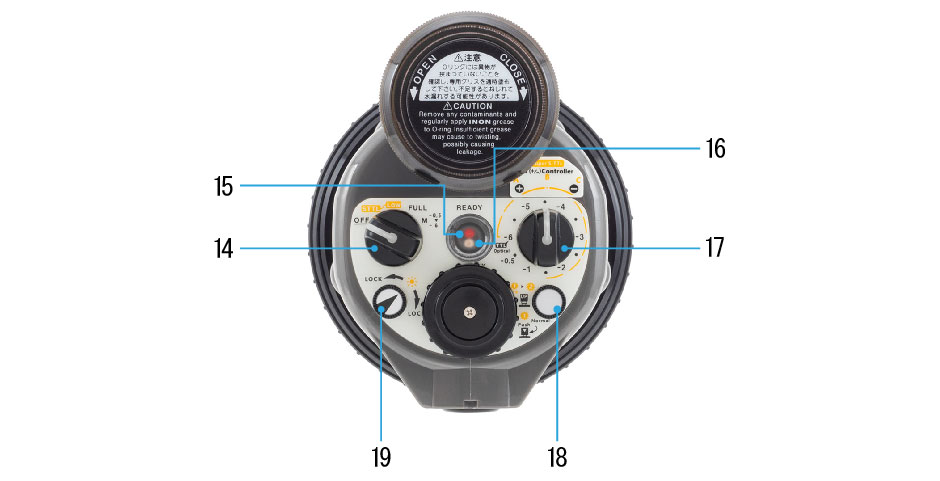

Nomenclature of Z-330 (rear view)
14) Main Mode Switch
15) Strobe Ready Lamp
16) TTL OK Lamp
17) EV. Control Switch
18) Advanced Cancel Circuit Switch
19) Focus Light Switch
