UW Tripod SystemHaving "UW Tripod Hub" as a fundamental part, this newly designed underwater tripod system offers wide variety of configurations of "pan-head parts" and "tripod legs".
In addition to use on land and in freshwater, whole system is usable in saltwater thanks to specially selected material, surface finishing and assembling method. (*1)

(*1) After using, make sure to rinse the product in fresh water to dissolve salt deposit and apply grease according to respective user manuals.

■UW Toripod Hub

JAN code: 4562121438682

UW Toripod Hub

■UW 3-Way Panhead

JAN code: 4562121438699

UW 3-Way Panhead

■Shoe Base 1/4-20UNC Head

Shoe Base 1/4-20UNC Head
1/4-20UNC Screw Type

■Shoe Base M6 Head

Shoe Base M6 Head
M6 Screw Type

■Shoe Base BALL Head

Shoe Base BALL Head
Arm Ball Type


UW Tripod Hub

●Make Your Own Underwater Tripod

The UW Tripod Hub is designed to use INON ”Carbon Telescopic Arm SS/S/M/L” or ”Stick Arm XS-T/SS-T/S-T/M-T” as tripod legs supporting wide range of tripod applications.
The UW Tripod Hub is equipped with 1/4 tripod screw to add "UW 3-Way Panhead" or head part of variety of Shoe Base products (*2). Usable as a simple tripod by attaching underwater housing directly.

(*2) Compatible Shoe Base products are "Shoe Base 1/4-20UNC", "Shoe Base M6" and "Shoe Base BALL" as their head part can be separated. Those head parts are available in the market.


■UW Tripod Hub [Leg mount] Compatibility
Stick Arm XS-T/SS-T/S-T/M-T
Carbon Telescopic Arm SS/S/M/L

■UW Tripod Hub [Screw mount] Compatibility
(1/4-20UNC screw)
UW 3-Way Panhead
Tripod Adapter for D Holder
Shoe Base 1/4-20UNC Head
Shoe Base M6 Head
Shoe Base BALL Head
Single Light Holder LF for Tripod
Single Light Holder LE for Tripod
Tripod Adapter
SD Mount Cage for HERO3/3+/4
SD Front Mask for HERO5/6 (with packaged "Mount Adapter ")
SD Front Mask STD (with packaged "Mount Adapter")
SD Mount Base for TG-Tracker (with packaged "Mount Adapter")
SD Mount Base UWH1 (with packaged "Mount Adapter")
An underwater housing equipped with "1/4-20UNC" tripod screw hole (screw hole depth 5mm or deeper).

UW Tripod System Chart

●Three Opening Angles

Each leg mount is equipped with a "Lock Lever" to lock leg position at either of [high], [middle] or [low] positions. Each leg can be set to different opening angles to make an elevator column vertical even in uneven or rough sea ground.
Friction when opening/closing legs can be adjusted by tightening/loosening fixing bolts on joints.

UW Tripod System Chart

●Center Column Type Elevator

The center column type elevator consists of two parts. Removing lower elevator enables to put combined camera position down close to the ground when opening angle is set to low position.
Remove the Lower Elevator Column You can get lower height. Extra "Lower Elevator" can be jointed on the original Lower Elevator to extend total height at 145mm/5.7in.
It is also possible to hang down a camera system by attaching the elevator upside-down for extremely low angle shooting or shooting a subject just underneath of the tripod.

UW Tripod System Chart

●2-Way Ferrule (rubber/spike)

Bundled "2-Way Ferrule" offers two configurations either rubber or spike tip. Ferrules are to be screwed on ball-joints on tripod leg edges. Turning rubber parts upwards will have spike tips to accommodate to different circumstances.

UW Tripod System Chart

●More Stability with Weight

There are several options to enhance stability of the tripod system including hanging a dive weight from the strap hole or jointing a dive weight by using a ball-joint on a tripod leg besides using a stone bag.

UW Tripod System Chart

page top

UW 3-Way Panhead

●Dedicated Panhead for UW Tripod Hub

Specifically designed for UW Tripod Hub and designed securely fasten the pan-head with a cap bolt and anti-rotation pins when panning. Double nuts system firmly fix combined camera system on the pan-head.

■Compatible products(1/4-20UNC screw)
An underwater housing equipped with "1/4-20UNC" tripod screw hole (screw hole depth 5mm or deeper).
Single Light Holder LF for Tripod
Single Light Holder LE for Tripod
SD Mount Cage for HERO3/3+/4
SD Front Mask for HERO5/6 (with packaged "Mount Adapter")
SD Front Mask STD (with packaged "Mount Adapter")
SD Mount Base for TG-Tracker (with packaged "Mount Adapter")
SD Mount Base UWH1 (with packaged "Mount Adapter")
Tripod Adapter for D Holder

UW Tripod System Chart

●Big Housing? No problem!

Packaged "Panhead Adapter Base" can hold a camera housing on the pan-head securely without rattle (*3). The "Panhead Adapter Base" further enables to attach a camera system combined with "Grip Base M1" or "System Base II" (*4)(*5).

(*3) The bundled "Panhead Adapter Base" is usable only when a housing is equipped with two tripod screw holes (1/4 in) with center-to-center distance of 33 to 80mm/1.3 to 3.1in on its bottom.
(*4) To install an underwater housing combined with INON Grip Base M1, the underwater housing has to have two tripod screw holes (1/4 in) with center-to-center distance of either 33 to 40mm/1.3 to 1.6in or 44 to 80mm/1.7 to 3.1in on its bottom.
(*5) To install an underwater housing combined with INON System Base II (Main Base II), the underwater housing has to have two tripod screw holes (1/4 in) with center-to-center distance of 47 to 80mm/1.9 to 3.1in on its bottom.


■Compatible products(when using Panhead Adapter Base)
Grip Base M1
Main Base II
Tripod Adapter for D Holder

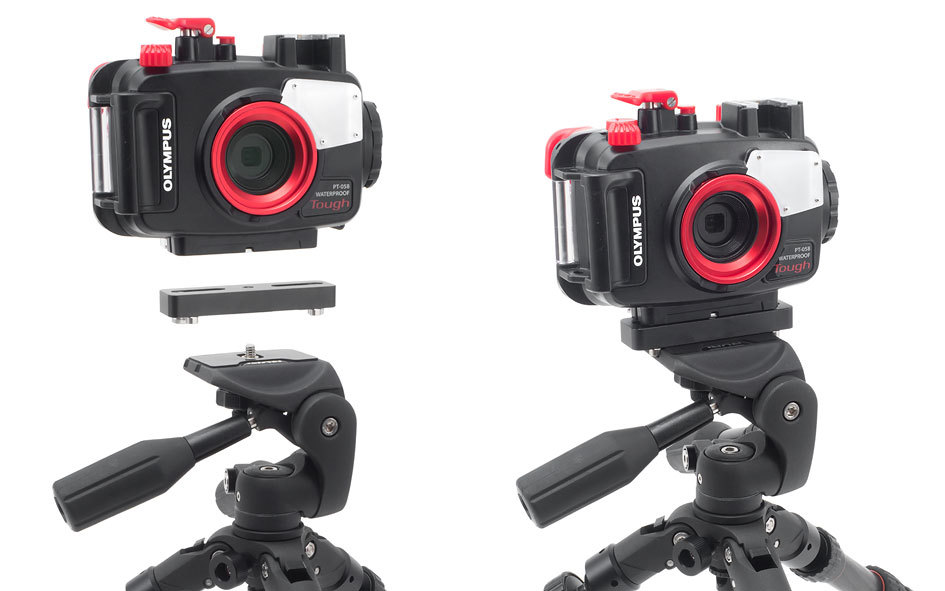

UW Tripod System ChartUsing Bundled "Panhead Adapter Base" supports secure and reliable underwater housing installation.
GripbaseM1_PanheadAdapterBase_UW3wayPanhead.jpgUsing Bundled "Panhead Adapter Base" also enables to attach an underwater housing combined with "Grip Base M1" or "System Base II".
TripodAdapter forDHolder_usage3.jpg

●Smooth Controllability

Large handles are easy to apply torque with effortless controllability supporting severe position adjustment.

UW Tripod System Chart

●Compact Storage Size

When storing/transporting the tripod, the Tilt Handle can be attached on the end of the Pan Handle to make the tripod compact.

UW Tripod System Chart

UW Tripod Hub, UW 3-Way Panhead Accessories / Service Parts

Tripod Adapter for D Holder

Tripod Adapter for D Holder

Single Light Holder LE for Tripod

Single Light Holder LE for Tripod

Single Light Holder LF for Tripod

Single Light Holder LF for Tripod

Tripod Adapter

Tripod Adapter

D Holder

D Holder

Grip Base M1

Grip Base M1

Holder II Set

Holder II Set

INON Grease

INON Grease

Lower Elevator

Lower Elevator
Service Parts

2-Way Ferrule

2-Way Ferrule
Service Parts

page top

Combined Arms Maximum Operating
Height
Maximum Operating Height
Maximum Operating
Height with
Elevator Down
Maximum Operating Height with Elevator Down
Minimum Operating
Height
Minimum Operating Height
Folded Length
Folded Length
UW Tripod Hub UW Tripod Hub +
UW 3-Way Panhead
UW Tripod Hub UW Tripod Hub +
UW 3-Way Panhead
UW Tripod Hub UW Tripod Hub +
UW 3-Way Panhead
UW Tripod Hub UW Tripod Hub +
UW 3-Way Panhead
Stick Arm XS-T 320mm
1.1ft
405mm
1.1ft
175mm
7in (*)
260mm
10in (*)
55mm
2in
140mm
6in
190mm
7in
275mm
11in
Stick Arm SS-T 360mm
1.2ft
445mm
1.5ft
220mm
9ft
305mm
1ft
65mm
3in
150mm
6in
235mm
9in
320mm
1.1ft
Stick Arm S-T 390mm
1.3ft
475mm
1.6ft
245mm
10in
330mm
1.1ft
70mm
3in
155mm
6in
265mm
10in
350mm
1.1ft
Stick Arm M-T 435mm
1.4ft
520mm
1.7ft
290mm
11in
375mm
1.2ft
80mm
3in
165mm
6in
320mm
1.1ft
405mm
1.3ft
Carbon Telescopic Arm SS 500mm
1.6ft
585mm
1.9ft
355mm
1.2ft
440mm
1.4ft
75mm
3in
160mm
6in
310mm
1.1ft
395mm
1.3ft
Carbon Telescopic Arm S 700mm
2.3ft
785mm
2.6ft
555mm
1.8ft
640mm
2.1ft
85mm
3in
170mm
7in
380mm
1.3ft
465mm
1.5ft
Carbon Telescopic Arm M 945mm
3.1ft
1,030mm
3.4ft
800mm
2.6ft
885mm
2.9ft
100mm
4in
185mm
7in
470mm
1.5ft
555mm
1.8ft
Carbon Telescopic Arm L 1,185mm
3.9ft
1,270mm
4.2ft
1,040mm
3.4ft
1,125mm
3.7ft
115mm
5in
200mm
8in
560mm
1.8ft
645mm
2.1ft


Maximum Operating Height: The height to camera plate with tripod legs fully extended (when using Carbon Telescopic Arms), opening angle set to "High" and elevator raised to its highest position.
Maximum Operating Height with Elevator Down: The height to camera plate with same conditions above except position of the elevator which is set to its lowest position.
Minimum Operating Height: The height to camera plate with opening angle set to "Low".
Folded Length: Overall length when all tripod legs collapsed for transporting or storage.

(*) Without Lower Elevator being attached as it will conflict with the ground.
