INON

Quick Shoe System

The Quick Shoe uses the Arca-Swiss system, commonly used for tripods. The handle with locking mechanism on the clamp part provides secure locking without any rattling and easy and quick installation/removal. You can freely change combination of INON Quick Shoe plate and clamp for various applications.

*Please note that INON Inc. has not confirmed compatibility of this product with other brands' Arca-Swiss style products.



Grip Base D-PRO

Grip Base D-PRO

JAN code : 4570018120152

グリップベースD-PRO

INON's unique Arca-Swiss system "Quick Shoe System" at five locations provides secure and reliable installation without any rattle, and speedy and easy separation of component parts. Underwater, the Grip Base D-PRO dramatically increases the lighting options while it serves as a space-saving solution on land benefitting you with comfortable and budget friendly transportation.



Dimensions (W x H x D) 375.6 x 205.1 x 96.7 mm/14.8 x 8.1 x 3.8 inch
Weight [air] 835 g/1.8 lb, [u/w] Approx. 553 g/1.2 lb
Material/surface finishing Corrosion resisting aluminum alloy/rigid alumite etc.

The "Quick Shoe" clamp is equipped with a handle having a locking mechanism which visually indicates LOCK/UNLOCK status. The green display indicates LOCK status showing the clamp is in use mode, and the red display indicates UNLOCK status showing the clamp is in installation/removal mode.


ロック機構付き

Having the "Quick Shoe L-Type Bracket" which can be attached on a housing with 12-52 mm/0.5-2.0 inch tripod screw hole spacing enables to change the camera to vertical position without altering the lighting.


ライティングを変えずにカメラを縦位置に変更可能

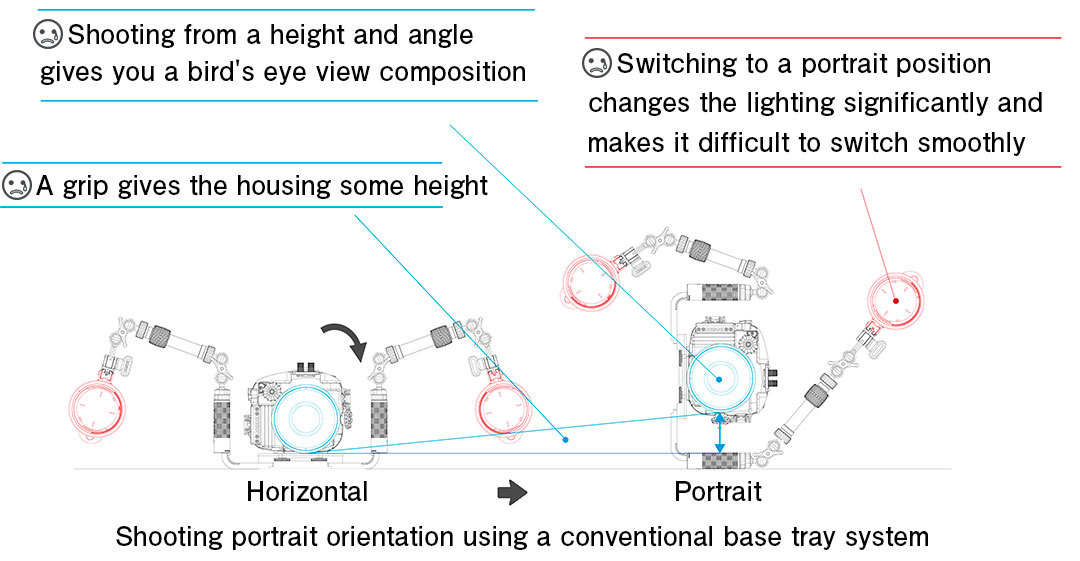

Drawback of Existing Base Tray

Drawback of Existing Base Tray

Advantage of using Quick Shoe L-Type Bracket

Advantage of using Quick Shoe L-Type Bracket

Now you can shoot vertical low angle shot which is not possible with a conventional base tray with integrated grip.

撮影例



*Please note that not all of products are confirmed compatible with this product. If the installation of this product interferes in opening/closing the housing, it should not be used.

page top

Quick Shoe Main Base

Quick Shoe Main Base

JAN code : 4562121439863

クイックシューメインベース

An all new main base equipped with a Quick Shoe clamp.



Dimensions (W x H x D) 250 x 28.3 x 94.8 mm/9.8 x 1.1 x 3.7 inch
Weight [air] 248 g/8.7 oz, [u/w] Approx. 160 g/5.6 oz
Material/surface finishing Corrosion resisting aluminum alloy/rigid alumite

With the D5 Holder attached on both ends, it functions as a handle and tray for camera.

D5ホルダー取り付け例
D5ホルダー取り付け例
D5ホルダー取り付け例

Various Quick Shoe plates and clamps can be attached for a wide variety of arm configurations.

アーム展開例
アーム展開例
アーム展開例
アーム展開例
アーム展開例
アーム展開例
アーム展開例
アーム展開例
アーム展開例
page top

Quick Shoe L-Type Bracket

Quick Shoe L-Type Bracket

JAN code : 4562121439856

クイックシューL型ブラケット

An innovative item for a housing enabling low angle portrait shot without changing the lighting, which was not possible with conventional accessory. It can be attached on a housing with tripod screw hole spacing from 12 mm/0.5 inch to 56 mm/2.2 inch.


*Please note that not all of products are confirmed compatible with this product. If the installation of this product interferes in opening/closing the housing, it should not be used.




Dimensions (W x H x D) 122.2 x 113.5 x 42 mm/4.8 x 4.5 x 1.7 inch
Weight [air] 131 g/4.6 oz, [u/w] Approx. 83g/2.9 oz
Material/surface finishing Corrosion resisting aluminum alloy/rigid alumite

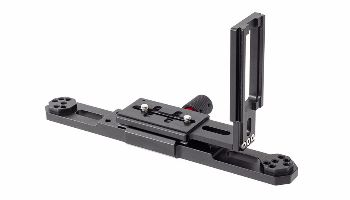

Designed to use in combination with the Quick Shoe W50 Clamp and Quick Shoe Main Base.

W50クランプと組み合わせ
メインベースとの組み合わせ

Installation and configuration

ハウジング取り付け例
ハウジング取り付け例
ハウジング取り付け例
ハウジング取り付け例
ハウジング取り付け例
page top

Quick Shoe Set

Quick Shoe W27 Set

JAN code : 4570018120169

クイックシューW27セット


クイックシューW27セット

Compact Quick Shoe with 27 mm/1.1 inch width. Set of the Quick Shoe W27 Plate and Quick Shoe W27 Clamp.



Dimensions (W x H x D) 27.5 x 26.2 x 94.8 mm/1.1 x 1.0 x 3.7 inch
Weight [air] 90 g/3.2 oz, [u/w] Approx. 60 g/2.1 oz
Material/surface finishing Corrosion resisting aluminum alloy/rigid alumite

Various arm configurations are available by attaching on the Quick Shoe Main Base, Underwater 3-way Panhead or D5 Holder.

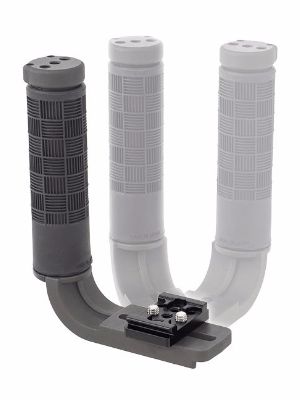

クイックシューメインベースとの組み合わせ
クイックシューメインベースとの組み合わせ
水中3ウェイ雲台との組み合わせ
D5ホルダーとの組み合わせ

Quick Shoe W50 Set

JAN code : 4570018120176

クイックシューW50セット


クイックシューW50セット

Standard Quick Shoe with 50 mm/2.0 inch width. Set of the Quick Shoe W50 Plate and Quick Shoe W50 Clamp.



Dimensions (W x H x D) 50 x 28.3 x 94.8 mm/2.0 x 1.1 x 3.7 inch
Weight [air] 146 g/5.1 oz, [u/w] Approx. 96g/3.4 oz
Material/surface finishing Corrosion resisting aluminum alloy/rigid alumite, ABS etc.

Designed to combine with the Grip Base D5, Underwater 3-way Panhead or D5 Holder.

グリップベースD5との組み合わせ
水中3ウェイ雲台との組み合わせ
D5ホルダーとの組み合わせ
page top

Quick Shoe Plate

Quick Shoe W27 Plate

JAN code : 4562121439801

クイックシューW27プレート

Compact Quick Shoe plate with 27 mm/1.1 inch width. Designed to use with the Quick Shoe W27 Clamp.



Dimensions (W x H x D) 27.5 x 10.5 x 42 mm/1.1 x 0.4 x 1.7 inch
Weight [air] 20 g/0.7 oz, [u/w] Approx. 12 g/0.4 oz
Material/surface finishing Corrosion resisting aluminum alloy/rigid alumite

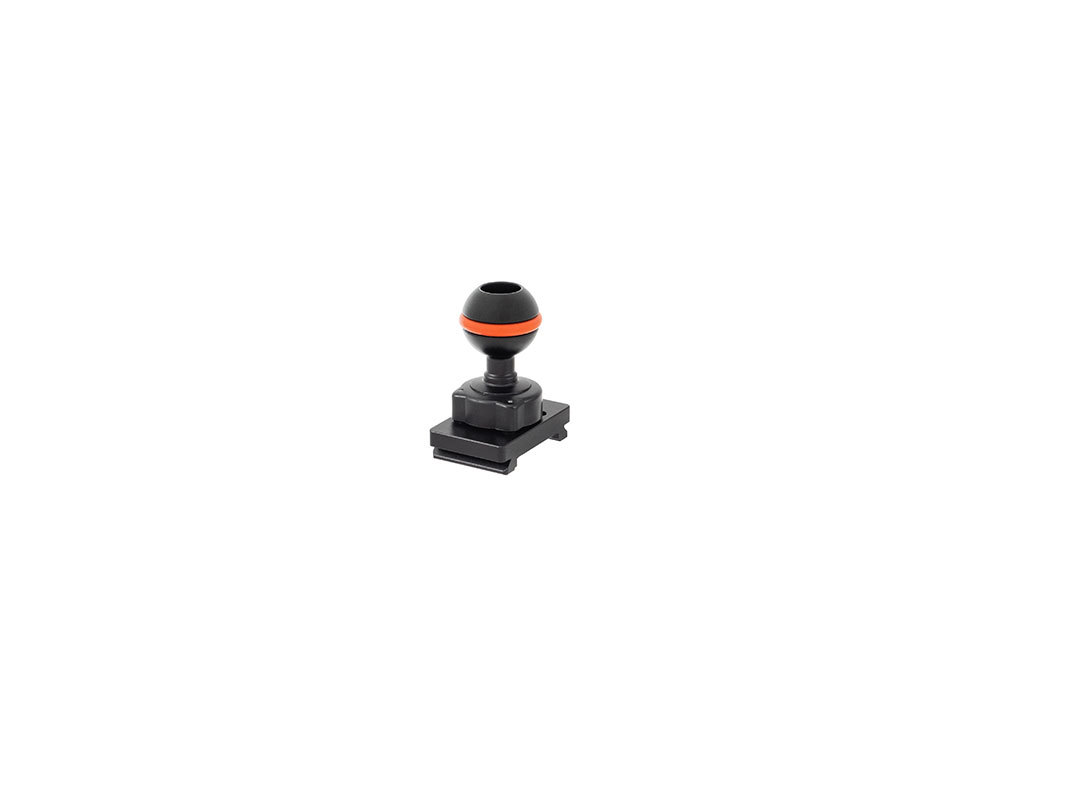

Various adapters and arms can be attached to the plate section.

アーム取り付け例
アーム取り付け例
アーム取り付け例
アーム取り付け例
アーム取り付け例
アーム取り付け例
アーム取り付け例

Quick Shoe W50 Plate

JAN code : 4562121439818

クイックシューW50プレート

Standard Quick Shoe plate with 50 mm/2.0 inch width. Designed to use with the Quick Shoe W50 Clamp.



Dimensions (W x H x D) 50 x 12.5 x 42 mm/2.0 x 0.5 x 1.7 inch
Weight [air] 45 g/1.6 oz, [u/w] Approx. 29 g/1.0 oz
Material/surface finishing Corrosion resisting aluminum alloy/rigid alumite, ABS etc.

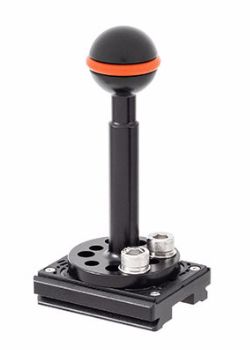

The W50 Plate can be attached to a housing with 20 mm/0.8 inch to 36 mm/1.4 inch between tripod screw holes, and a variety of adapters are also attachable other than a housing.

アーム取り付け例
アーム取り付け例
アーム取り付け例
アーム取り付け例
アーム取り付け例

アーム取り付け例
アーム取り付け例

The W50 Plate can be also attached on the bottom of the Grip Base D5 or Quick Shoe Main Base to hold the entire camera system on a tripod etc.

グリップベースD5取り付け例
メインベース取り付け例

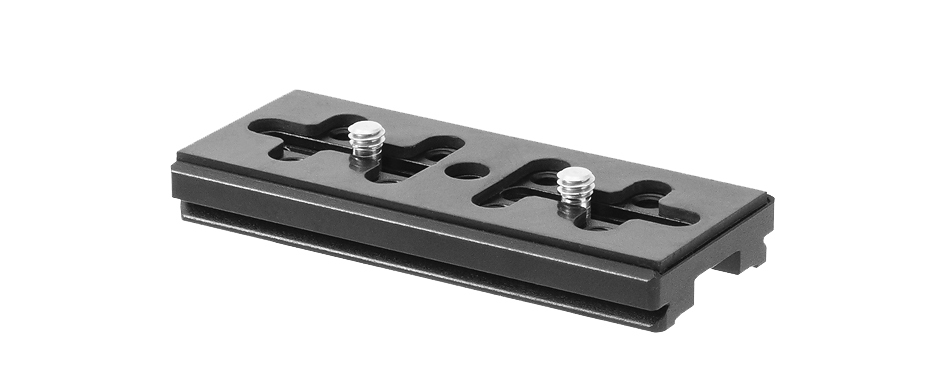

Quick Shoe W95 Plate

JAN code : 4562121439825

クイックシューW95プレート

A wide Quick Shoe plate with 95 mm/3.7 inch width.



Dimensions (W x H x D) 95.3 x 12.5 x 42 mm/3.8 x 0.5 x 1.7 inch
Weight [air] 76 g/2.7 oz, [u/w] Approx. 47 g/1.7 oz
Material/surface finishing Corrosion resisting aluminum alloy/rigid alumite etc.

W27クランプとの組み合わせ
W50クランプとの組み合わせ
メインベースとの組み合わせ

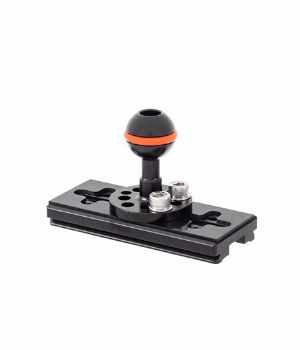

Compatible with mainly large size housings with tripod thread spacing from 20mm/0.8 inch to 80mm/3.1 inch and Multi Direct Base II products.

マルチダイレクトベースII取り付け例
マルチダイレクトベースII取り付け例
ハウジング取り付け例
ハウジング取り付け例

The W95 Plate can be also attached on the bottom of the Grip Base D5 or Quick Shoe Main Base to hold the entire camera system on a tripod etc.

グリップベースD5取り付け例
メインベース取り付け例
page top

Quick Shoe Clamp

Quick Shoe W27 Clamp

JAN code : 4562121439832

クイックシューW27クランプ

Compact Quick Shoe clamp with 27 mm/1.1 inch width. Designed to use with the Quick Shoe W27 Plate.

Various arm configurations are available by attaching on the Quick Shoe Main Base or D5 Holder.



Dimensions (W x H x D) 27.5 x 20.2 x 93.8 mm/1.1 x 0.8 x 3.7 inch
Weight [air] 70 g/2.5 oz, [u/w] Approx. 48 g/1.7 oz
Material/surface finishing Corrosion resisting aluminum alloy/rigid alumite etc.

Quick Shoe W50 Clamp

JAN code : 4562121439849

クイックシューW50クランプ

Standard Quick Shoe clamp with 50 mm/2.0 inch width. Designed to use with the Quick Shoe W50 Plate.


Usable with the Grip Base D5 or UW 3-way Panhead.



Dimensions (W x H x D) 50 x 20.2 x 93.8 mm/2.0 x 0.8 x 3.7 inch
Weight [air] 101 g/3.6 oz, [u/w] Approx. 67 g/2.4 oz
Material/surface finishing Corrosion resisting aluminum alloy/rigid alumite etc.

page top

Hand Grip

Hand Grip

JAN code : 4562121439870

ハンドグリップ

For use with LED lights, strobes or GoPro.
Made from robust corrosion resisting aluminum alloy wrapped with easy-to-grasp rubber and equipped with YS mount on the tip.

握りやすいハンドグリップ


Dimensions (W x H x D) 32 x 162.6 x 51.7 mm/1.3 x 6.4 x 2.0 inch
Weight [air] 131 g/4.6 oz, [u/w] approx.65 g/2.3 oz
Material/surface finishing Corrosion resisting aluminum alloy/rigid alumite, POM etc.

The YS mount is removable to attach various INON adapters as like INON D5 Holder when the YS mount is removed.

アーム取り付け例
アーム取り付け例
アーム取り付け例
アーム取り付け例
アーム取り付け例
アーム取り付け例
アーム取り付け例
アーム取り付け例

The bottom end is designed to attach Multi Direct Base II products.

マルチダイレクトベースII取り付け例
マルチダイレクトベースII取り付け例
マルチダイレクトベースII取り付け例

By installing optional Quick Base S, LED light, strobe, GoPro camera with Quick Holder can be instantly attached on the Hand Grip. The Hand Grip greatly increases the flexibility of lighting options such as sidelight or backlit shooting, as well as usability of handheld GoPro shooting.

GoPro取り付け例
ストロボ取り付け例
ライト取り付け例
page top

D5 Lanyard Plate

D5 Lanyard Plate

JAN code : 4570018120145

D5ランヤードプレート



By attaching it on top of the D5 holder, a commercially available lanyard can be attached.



Dimensions (W x H x D) 29 x 19.1 x 50.2 mm/1.1 x 0.8 x 2.0 inch
Weight [air] 26 g/0.9 oz, [u/w] Approx. 12 g/0.4 oz
Material/surface finishing Stainless steel
