INON

  • INON
  • >
  • Products Information
  • >
  • Action Camera
  • >
  • Front Mask
  • >
  • ZD Front Mask

Accessory for Action Camera


ZD Front Mask
(GoPro®HERO9 - 13/Insta360®Ace Pro)

ZD Front Mask
(GoPro®HERO9 - 13/Insta360®Ace Pro)

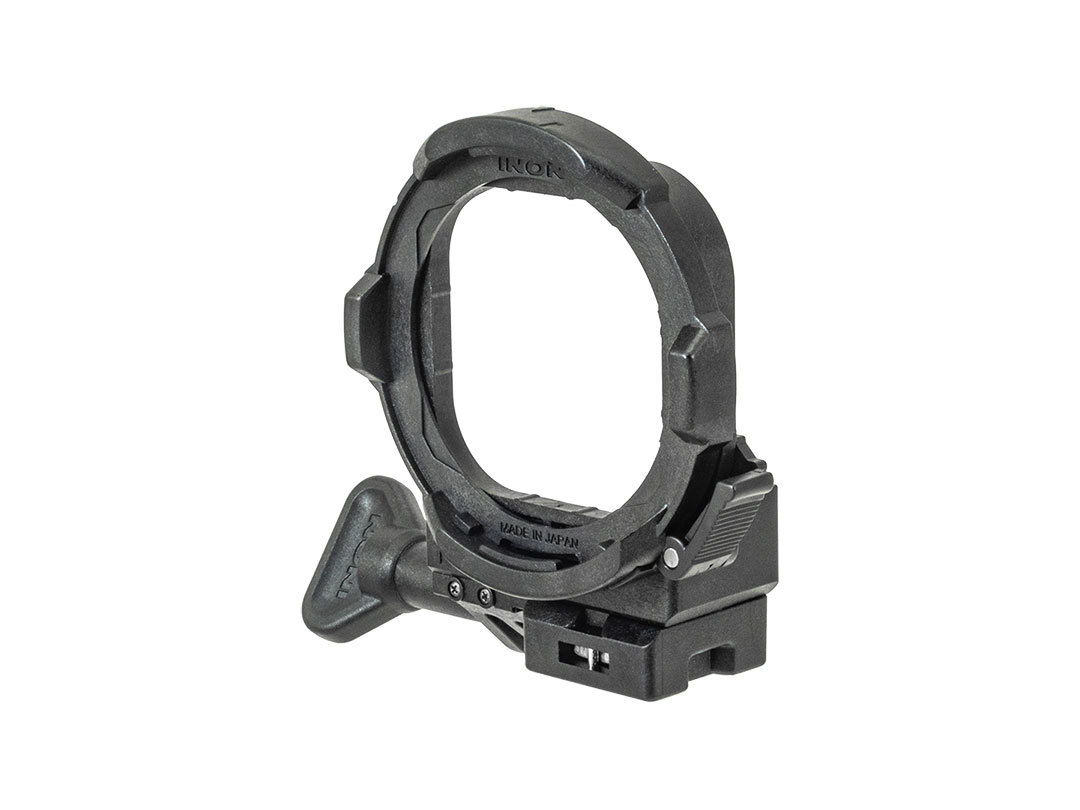

ZD Front Mask for HERO12

JAN/EAN code : 4570018120992

ZD Front Mask for HERO12
ZD Front Mask for HERO12
GoPro HERO13
GoPro ®HERO13

Compatible model:

  • GoPro®HERO13 Black
  • GoPro®HERO12 Black
  • GoPro®HERO11 Black
  • GoPro®HERO10 Black
  • GoPro®HERO9 Black

Only compatible with GoPro genuine protective housing.


Compatible lens:

  • UFL-GR140 ZD/UFL-GR140 Pro ZD (Supports all FOV settings)
  • UFL-G140 ZD (Supports up to 4:3 frame/aspect ratio)
  • UCL-G55 ZD (Supports up to 4:3 frame/aspect ratio)
  • UCL-G100 ZD (Supports up to 4:3 frame/aspect ratio)
  • UCL-G165II ZD (Supports up to 4:3 frame/aspect ratio)
ZD Front Mask for HERO12
ZD Front Mask for HERO12
GoProHERO13
GoPro ®HERO13
Compatible model:
  • GoPro®HERO13 Black
  • GoPro®HERO12 Black
  • GoPro®HERO11 Black
  • GoPro®HERO10 Black
  • GoPro®HERO9 Black

Only compatible with GoPro genuine protective housing.


Compatible lens:

  • UFL-GR140 ZD/UFL-GR140 Pro ZD (Supports all FOV settings)
  • UFL-G140 ZD (Supports up to 4:3 frame/aspect ratio)
  • UCL-G55 ZD (Supports up to 4:3 frame/aspect ratio)
  • UCL-G100 ZD (Supports up to 4:3 frame/aspect ratio)
  • UCL-G165II ZD (Supports up to 4:3 frame/aspect ratio)

page top

ZD Front Mask for Ace Pro

JAN/EAN code : 4570018121005

ZD Front Mask for Ace Pro
ZD Front Mask for Ace Pro
Insta360Ace Pro
Insta360 ®Ace Pro

*Packaged anti-reflection sticker is attached.

Compatible model:

  • Insta360®Ace Pro

Only compatible with Insta360®Ace Pro genuine Dive Case.


Compatible lens:

  • UFL-GR140 ZD/UFL-GR140 Pro ZD (supports all FOV settings)
  • UFL-G140 ZD(supports up to Dewarp)
ZD Front Mask for Ace Pro
ZD Front Mask for Ace Pro
ZDフロントマスク for Ace Pro 装着例
Insta360 ®Ace Pro

*Packaged anti-reflection sticker is attached.

Compatible model:

  • Insta360®Ace Pro

Only compatible with Insta360®Ace Pro genuine Dive Case.


Compatible lens:

  • UFL-GR140 ZD/UFL-GR140 Pro ZD (supports all FOV settings)
  • UFL-G140 ZD(supports up to Dewarp)

page top

Features

Quick Lens Replacement with ZD Mount

Equipped with INON "ZD Mount" bayonet system with additional locking feature to support easy and speedy lens exchange as well as reliable installation of INON "UFL-G140 ZD underwater semi-fisheye conversion lens", "UFL-GR140 ZD underwater semi-fisheye conversion lens", "UCL-G165ll ZD underwater wide close-up lens", “UCL-G100 ZD underwater close-up lens”, “UCL-G55 ZD underwater close-up lens”designed exclusively for an action cameras. Of course the ZD Front Mask is usable without any attachment lens.

GoProHERO13
GoPro ®HERO13
Insta360Ace Pro
Insta360 ®Ace Pro
GoProHERO13
GoPro ®HERO13
Insta360Ace Pro
Insta360 ®Ace Pro
Sample movie by GoPro HERO7 Black + UFL-G140 SD
Sample movie by GoPro HERO9 Black + UFL-G140 SD

Optional Accessories for Selfie, Follow Camera

Using an optional “Ball Adapter for GoPro” attached on the “Carbon Telescopic Arm” to combine with your GoPro camera, is an ideal selfie system to record while swimming around. INON's original fixing screw can securely hold the camera in place, enabling stable video recording underwater without worrying about unexpected camera displacement due to current. All components are designed for underwater use offering superior durability and corrosion resistant characteristic. Attaching a conversion lens on an action camera gets heavy especially when using a “Carbon Telescopic Arm”. Optional“Mega Float Tube” attached on top end of the arm supports comfortable handing underwater without having heavy load on hand grip.

Set-up example - Carbon telescopic Arm S
Set-up example - Carbon telescopic Arm S
Set-up example - Stick Arm S-T
Set-up example - Stick Arm S-T
Set-up example - Carbon telescopic Arm S
Set-up example - Carbon telescopic Arm S
Set-up example - Stick Arm S-T
Set-up example - Stick Arm S-T
Following shot using selfie stick


By using a selfie stick and underwater semi-fisheye lens "UFL-G140 ZD/”UFL-GR140 ZD”, you can get closer to marine lives that are usually difficult to get close to and capture larger images to easily shoot high quality images with full of realism.

Lightweight Reinforced Plastic Body

Made of reinforced plastic (FRP) for durability and not to compromise benefit of lightweight action camera. Easy to install to snap on the front of a housing and fix with a thumbscrew.

Lightweight Reinforced Plastic Body

Made of reinforced plastic (FRP) for durability and not to compromise benefit of lightweight action camera. Easy to install to snap on the front of a housing and fix with a thumbscrew.

Lightweight Reinforced Plastic Body

Versatility

The bottom of the ZD Front Mask has a screw hole to attach joint adapters including “Quick Holder Set S-Z”, "Direct Base III", "Z Joint", "Z Adapter MV" and "Shoe Base M6" to use combined action camera for various applications.
The ZD Front Mask comes with "Male Adapter" which is attached on the bottom of the ZD Front Mask to use action camera compatible accessories.

Versatility

A wide variety of accessories to support various situations in underwater imaging

*Images use SD Front Mask for HERO9
Versatility

A wide variety of accessories to support various situations in underwater imaging

*Images use SD Front Mask for HERO9

Stability

Supplied Mount Adapter enables to install one "D5 Holder" on the left hand side supporting stable shooting underwater. Combining with the “Compact Grip Base for GoPro” allows you to hold the camera steadily with both hands for stable shooting underwater with less camera shake and you can enjoy a full-scale underwater video system with dual lighting.

Single handle
Single handle
Compact Grip Base for GoPro
Compact Grip Base for GoPro
Single handle
Single handle
Compact Grip Base for GoPro
Compact Grip Base for GoPro

Tripod, Monopod

The Mount Adapter is equipped with the tripod screw (1/4”) to link to a tripod or monopod for shooting no camera shake footage, time-lapse, fixed-point observation etc.

Tripod, Monopod

The Mount Adapter is equipped with the tripod screw (1/4”) to link to a tripod or monopod for shooting no camera shake footage, time-lapse, fixed-point observation etc.

Tripod, Monopod
page top

Compatible Accessories

Front Cap
(for HERO12/for Ace Pro)

Front Cap

M5 thumbscrew
(for HERO12/for Ace Pro)

M5 thumbscrew

Male adapter
(for HERO12/for Ace Pro)

Male adapter

Mount Adapter
(for HERO12/for Ace Pro)

Mount Adapter

Anti-reflection sticker
(for Ace Pro)

Anti-reflection sticker
page top

Lesnses

UFL-GR140 ZD
(for HERO12/for Ace Pro)

UFL-GR140 ZD

UFL-GR140 Pro ZD
(for HERO12/for Ace Pro)

UFL-GR140 Pro ZD

UFL-G140 ZD
(for HERO12/for Ace Pro)

UFL-G140 ZD

UCL-G165II ZD
(for HERO12)

UCL-G165II ZD

UCL-G100 ZD
(for HERO12)

UCL-G100 ZD

UCL-G55 ZD
(for HERO12)

UCL-G55 ZD
page top

Options

Light Adapter
(for HERO12/for Ace Pro)

Light Adapter

Hand Grip
(for HERO12/for Ace Pro)

Hand Grip

Compact Grip Base for GoPro
(for HERO12/for Ace Pro)

Compact Grip Base for GoPro

D5 Holder
(for HERO12/for Ace Pro)

D5 Holder

Carbon Telescopic Arm
(for HERO12/for Ace Pro)

Carbon Telescopic Arm

Mega Float Tube
(for HERO12/for Ace Pro)

Mega Float Tube

Quick Holder Set S-Z
(for HERO12/for Ace Pro)

Quick Holder Set S-Z

Z Joint
(for HERO12/for Ace Pro)

Z Joint

Ball Adapter
(for HERO12/for Ace Pro)

Ball Adapter

Z Adapter MV
(for HERO12/for Ace Pro)

Z Adapter MV

Direct Base III
(for HERO12/for Ace Pro)

Direct Base III

Direct Base YS RT
(for HERO12/for Ace Pro)

Direct Base YS RT

Direct Base YS
(for HERO12/for Ace Pro)

Direct Base YS

M28 Ring Adapter
(for HERO12/for Ace Pro)

M28 Ring Adapter

Shoe Base M6
(for HERO12/for Ace Pro)

Shoe Base M6
page top

Specifications

  ZD Front Mask for HERO12 ZD Front Mask for Ace Pro
Compatible housing GoPro®genuine Protective housing for HERO9/10/11/12/13 Insta360®Ace Pro Dive Case
Mount INON ZD Mount
Compatible lens UFL-GR140 ZD/UFL-GR140 Pro ZD (Supports all FOV)
UFL-G140 ZD (Supports up to 4:3 frame/aspect ratio)
UCL-G55 ZD (Supports up to 4:3 frame/aspect ratio)
UCL-G100 ZD (Supports up to 4:3 frame/aspect ratio)
UCL-G165II ZD (Supports up to 4:3 frame/aspect ratio)
UFL-GR140 ZD/UFL-GR140 Pro ZD (Supports all FOV)
UFL-G140 ZD (Supports up to Dewarp)
Size
(excl. handle)
74.5mm/2.9in (W) x 92.3mm/3.6in (H) x 40.1mm/1.6in (D) 74.5mm/2.9in (W) x 95.4mm/3.7in (H) x 41.2mm/1.6in (D)
Weight
(incl. handle)
approx. 60g/2.1oz [air]
approx. 25g/0.9oz [underwater]
Material PC, POM etc.
Remarks Third party housings are not supported. Third party housings are not supported.
The Ace Pro 2 Dive Case is not supported.
Close-up lenses to be supported.

  ZD Front Mask for HERO12 ZD Front Mask for Ace Pro
Compatible housing GoPro®genuine Protective housing for HERO9/10/11/12/13 Insta360®Ace Pro Dive Case
Mount INON ZD Mount
Compatible lens UFL-GR140 ZD/UFL-GR140 Pro ZD (Supports all FOV)
UFL-G140 ZD (Supports up to 4:3 frame/aspect ratio)
UCL-G55 ZD (Supports up to 4:3 frame/aspect ratio)
UCL-G100 ZD (Supports up to 4:3 frame/aspect ratio)
UCL-G165II ZD (Supports up to 4:3 frame/aspect ratio)
UFL-GR140 ZD/UFL-GR140 Pro ZD (Supports all FOV)
UFL-G140 ZD (Supports up to Dewarp)
Size
(excl. handle)
74.5mm/2.9in (W) x 92.3mm/3.6in (H) x 40.1mm/1.6in (D) 74.5mm/2.9in (W) x 95.4mm/3.7in (H) x 41.2mm/1.6in (D)
Weight
(incl. handle)
approx. 60g/2.1oz [air]
approx. 25g/0.9oz [underwater]
Material PC, POM etc.
Remarks Third party housings are not supported. Third party housings are not supported.
The Ace Pro 2 Dive Case is not supported.
Close-up lenses to be supported.

page top

Remarks

[When using ZD Front Mask]
“UFL-GR140 ZD”, ”UFL-GR140Pro ZD”, ”UFL-G140 ZD”, ”UCL-G165II ZD”, ”UCL-G100 ZD”and ”UCL-G55 ZD」 are designed only for underwater use.


*GOPRO, HERO, are trademarks or registered trademarks of GoPro, Inc.
*Insta360 is a trademark or registered trademark of Arashi Vison Inc.
*Specifications are subject to change without notice.
