Compact Macro Set
(Caonon EF-S60mm Macro USM)
Product configuration
1. MRS60 Port II (w/o control ring)
2. Holder II
3. X-2 Holder II Spcer
4. Multi Direct Base IIa
5. Clamp III
6. Z Adapter MV
7. S-2000
8. Optical D Cable SS Type L
This compact and lightweight set uses "MRS60 Port (w/o control ring)" for Canon EF-S60mm macro lens and attaches a strobe directly on the X-2 housing via short arm. The "Holder II" is attached via "X-2 Holder II Spacer" to support the right hand.
Advanced Macro Set
(Caonon EF100mm F2.8L Macro IS USM)
Product configuration
1. MRS100 Port Type UIII + MRS Magnet Ring
2. Holder II
3. X-2 Holder II Spacer
4. Multi Direct Base IIa x2
5. Mega Float Arm S x2
6. Clamp III x4
7. Z Adapter II x2
8. M67 Lens Holder for Floar Arm
9. Close-up Lens
10. Z-330 x2
11. Optical D Cable Type L x2
12. LF1300-EWf
13. Single Light Holder LF
14. Shoe Base II
15. Shoe Base Adapter X-2
This advanced set uses "MRS100 Port Type UIII" and "MRS Magnet Ring " for Canon EF 100mm F2.8L Macro IS USM lens to control focusing by INON patented MRS (Magnet Rotary System). The MRS system employs magnetic attraction where lens focus ring rotates as you turn outer "MRS Control Ring" by same gear ration / torque as you control the lens on land. The lens port has screw mount to hold versatile M67 mount close-up lens. You can attach / remove a close-up lens underwater and no need to worry to darken an image as like a teleconverter. INON offers "UCL-67 M67", "UCL-90 M67", "UCL-165M67" and "UCL-330" with different optical power to choose depending on a subject or your creative intention.

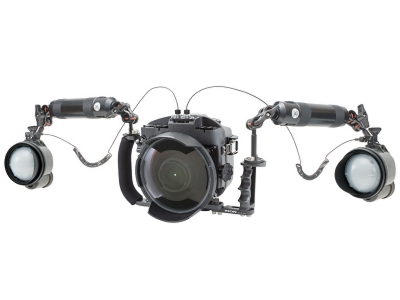

Fisheye-Wide set
(Tokina AT-X107DX Fisheye Zoom)
Product configuration
1. Dome Port 2 + Shade 2 Set + Extension Ring S + Zoom Gear AT-X107
2. Holder II Grip Set
3. Multi Direct Base IIa
4. Multi Direct Base II Long
5. Clamp III x4
6. Float Arm ML x2
7. Z Adapter II x2
8. Z-330 x2
9. Optical D Cable L Type L x2
Example set for Tokina 10–17mm fish-eye zoom lens. Compatible zoom gear supports fish-eye imaging at wide end as well as wide imaging at telephoto end. The lens is housed in well-established INON port "Dome Port 2+Shade 2 Set" which is attached on the X-2 housing via "Extension Ring S". The "Holder II Grip Set" enhances controllability of the zoom / focus dial. The shutter release lever, aperture dial is accessible by the right fingers with holding a housing. So you can comfortably control aperture setting / zoom position without seeing dials to concentrate on composition or to capture the moment through a viewfinder.
