| Fisheye Lens | Port/EXT. Ring | Magnet Ring |
| Canon EF 8-15mm f/4L Fisheye USM Mount Adapter EF-EOS R |
M86 Dome Port 110 MRS EXT. Ring 33 EXT. Ring 18 |
S-MRS Magnet Ring 1 |
| Fisheye Lens | Port/EXT. Ring | Magnet Ring |
| Canon EF 8-15mm f/4L Fisheye USM Mount Adapter EF-EOS R |
M86 Dome Port 110 MRS EXT. Ring 33 EXT. Ring 18 |
S-MRSMagnet Ring 1 |
| Wide lens | Port/Extension Ring | Magnet Ring |
| Canon RF10-20mm F4L IS USM 5 |
Dome Port II･ Protector II Set MRS EXT.Ring50 |
S-MRS Magnet Ring RF14-35 1 |
| Canon RRF14-35mm F4L IS USM 5 |
M96 Dome Port 110 MRS EXT. Ring 50 |
S-MRS Magnet Ring RF14-35 1 |
| Dome Port II･ Protector II Set MRS EXT. Ring 50 |
||
| Canon RF15-30mm F4.5-6.3 IS STM 5 |
M86 Dome Port 110 MRS EXT. Ring 54 |
S-MRS Zoom Ring RF15-30 S-MRS Focus Ring RF15-30 |
| Canon RF16mm F2.8 STM 5 |
M96 Dome Port 110 | N/A *AF only |
| Dome Port II･ Protector II Set |
| Wide lens | Port/Extension Ring | Magnet Ring |
| Canon RF10-20mm F4L IS USM 5 |
Dome Port II･ Protector II Set MRS EXT.Ring50 |
S-MRS Magnet Ring RF14-35 1 |
| Canon RRF14-35mm F4L IS USM 5 |
M96 Dome Port 110 MRS EXT. Ring 50 |
S-MRS Magnet Ring RF14-35 1 |
| Dome Port II･ Protector II Set MRS EXT. Ring 50 |
||
| Canon RF15-30mm F4.5-6.3 IS STM 5 |
M86 Dome Port 110 MRS EXT.Ring 54 |
S-MRS Zoom Ring RF15-30 S-MRS Focus Ring RF15-30 |
| Canon RF16mm F2.8 STM 5 |
M96 Dome Port 110 | N/A *AF only |
| Dome Port II･ Protector II Set |
| Macro Lens | Port/EXT. Ring | Magnet Ring |
| Canon RF24mm F1.8 MACRO IS STM 5 |
M86 Dome Port 110 MRS EXT. Ring 33 |
S-MRS Magnet Ring RF35 set 3 |
| Canon RF35mm F1.8 MACRO IS STM |
M86 Dome Port 110 MRS EXT. Ring 33 |
S-MRS Magnet Ring RF35 set 3 |
| M86 Port 17 2 MRS EXT. Ring 33 |
||
| SIGMA 70mm F2.8 DG MACRO |
M86 Port 82 MRS EXT. Ring 33 EXT. Ring 36 |
S-MRS Magnet Ring S70 set |
| Canon RF85mm F2 MACRO IS STM |
M86 Port 55 MRS EXT. Ring 33 |
S-MRS Magnet Ring 3 |
| Canon RF100mm F2.8 L MACRO IS USM |
M86 Port 07 MRS EXT. Ring 111 |
S-MRS Magnet Ring 4 |
| Canon EF 100mm f/2.8L Macro IS USM Mount Adapter EF-EOS R |
M86 Port 49 MRS EXT. Ring 33 EXT. Ring 36 |
S-MRS Magnet Ring |
| Macro Lens | Port/EXT. Ring | Magnet Ring |
| Canon RF24mm F1.8 MACRO IS STM 5 |
M86 Dome Port 110 MRS EXT. Ring 33 |
S-MRS Magnet Ring RF35 set 3 |
| Canon RF35mm F1.8 MACRO IS STM |
M86 Dome Port 110 MRS EXT. Ring 33 |
S-MRS Magnet Ring RF35 set 3 |
| M86 Port 17 2 MRS EXT. Ring 33 |
||
| SIGMA 70mm F2.8 DG MACRO |
M86 Port 82 MRS EXT. Ring 33 EXT. Ring 36 |
S-MRS Magnet Ring S70 set |
| Canon RF85mm F2 MACRO IS STM |
M86 Port 55 MRS EXT. Ring 33 |
S-MRS Magnet Ring 3 |
| Canon RF100mm F2.8 L MACRO IS USM |
M86 Port 07 MRS EXT. Ring 111 |
S-MRS Magnet Ring 4 |
| Canon EF 100mm f/2.8L Macro IS USM Mount Adapter EF-EOS R |
M86 Port 49 MRS EXT. Ring 33 EXT. Ring 36 |
S-MRS Magnet Ring |
1 For zooming when using auto focus. Manual focus is not supported.
2 Use large f number when shooting with open aperture at minimum focusing distance to prevent image quality deterioration at corners.
3 Manual focusing only. The Control Ring operation is not supported.
4 "S-MRS Magnet Ring" is necessary for each of the Control Ring, Focus Ring and SA Control Ring of "RF100mm f/2.8 L MACRO IS USM". Prepare enough "S-MRS Magnet Ring" for each Ring you use underwater.
5 It is recommended to always enable lens profile correction for RAW images, etc. as disabling the feature will have vignetting and significant optical vignetting when shooting macro. This issue occurs between the camera and the camera lens, and is not caused by the port.
When using X-2 Port (DSLR)
| Macro Lens | Port/EXT. Ring | Magnet Ring |
| Canon EF 8-15mm f/4L Fisheye USM Mount Adapter EF-EOS R |
Dome Port 115(M96 Dome Port 110) EXT. Ring 36 |
N/A |
| Dome Port II･ Protector II Set EXT. Ring 36 |
N/A | |
| Canon EF 100mm f/2.8L Macro IS USM Mount Adapter EF-EOS R |
MRS100 Port Type UIII EXT. Ring 18 |
MRS Magnet Ring |
| MRS100 Port Type UII EXT. Ring 36 |
MRS Magnet Ring |
When using X-2 Port (DSLR)
| Macro Lens | Port/EXT. Ring | Magnet Ring |
| Canon EF 8-15mm f/4L Fisheye USM Mount Adapter EF-EOS R |
Dome Port 115(M96 Dome Port 110) EXT. Ring 36 |
N/A |
| Dome Port II･ Protector II Set EXT. Ring 36 |
N/A | |
| Canon EF 100mm f/2.8L Macro IS USM Mount Adapter EF-EOS R |
MRS100 Port Type UIII EXT. Ring 18 |
MRS Magnet Ring |
| MRS100 Port Type UII EXT. Ring 36 |
MRS Magnet Ring |

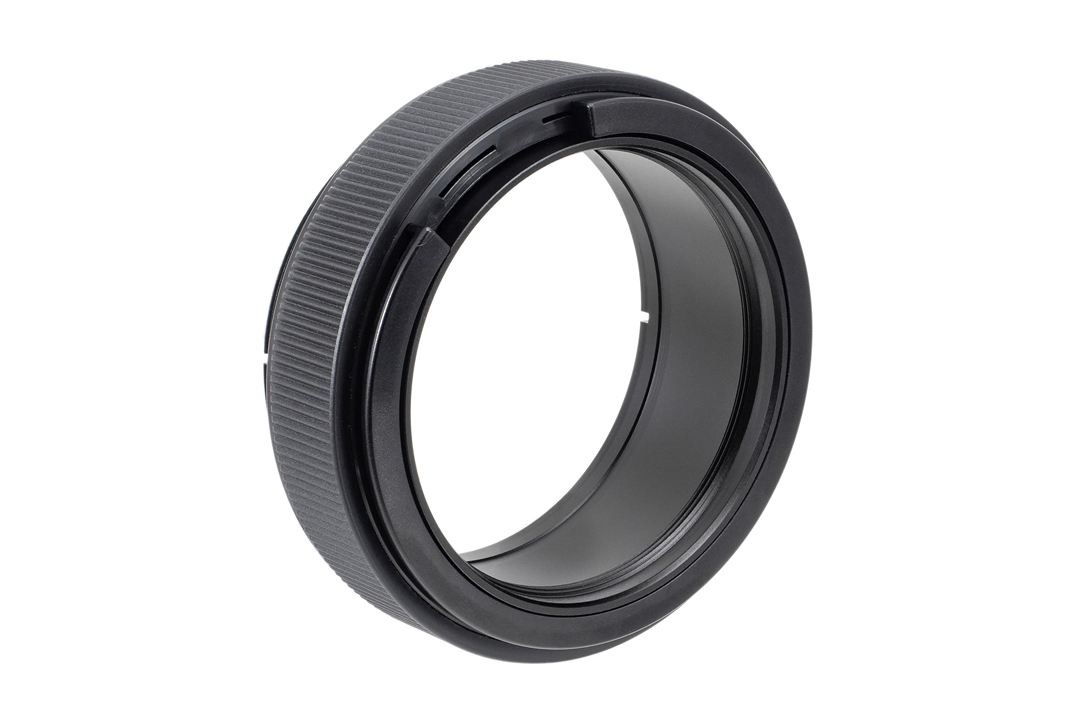

MRS EXT. Ring 33
JAN/EAN code : 4570018120428
The new S-MRS provides smoother operation with less play or rattle comparing to the previous model. By combining the EOS R6 with an RF lens, the MF Peaking function can also be used during full-time manual focusing. Together with the focus guide function, this enables ultra-precise focusing.
Housing side is same M96 threads and M86 threads on the front edge to combine with M86 Port to use wide variety of lenses.
Only “S-MRS Magnet Ring” is usable. The "MRS Magnet Ring" is not usable.
Specifications
| Size | φ115 × 45 mm/4.5 × 1.7 in |
| Weight (air) | 206 g/7.2 oz |
| Depth Rating | 75 m/246 ft |
| Material | Corrosion-resistant aluminum alloy (rigid black alumite) POM (S-MRS Control Ring) |
■MRS EXT.Ring 50
JAN/EAN code : 4570018120626
An extension ring tailored for Canon RF14-35mm F4L IS USM to provide smoother operation with less play or rattle in combination with the S-MRS Magnet Ring RF14-35 on the lens.
Housing side is same M96 threads on the front edge.
Only “S-MRS Magnet Ring RF14-35” is usable. Other "MRS Magnet Ring" are not usable.
Specifications
| Size | φ120 × 62.4 mm/4.7 × 2.4 in |
| Weight (air) | 273 g/9.6 oz |
| Depth Rating | 75 m/246 ft |
| Material | Corrosion-resistant aluminum alloy (rigid black alumite) POM (S-MRS Control Ring) |
MRS EXT.Ring 54
JAN/EAN code : 4570018120633
An Extension Ring for Canon "RF15-30mm F4.5-6.3 IS STM" employing the S-MRS system, where zooming operation is controlled by the magnetic attraction.
Attaching "S-MRS Zoom Ring RF15-30" on the camera lens enables zooming and attaching "S-MRS Focus Ring RF15-30" enables focusing by turning the Control Ring on the Extension Ring.
Slide the Control Ring on the port to instantly switch between zoom/focus operation.
The housing side has the same M96 threads as the conventional X-2 housing and front end has M86 threads.
Canon "RF15-30mm F4.5-6.3 IS STM" is supported in combination with the "M86 Dome Port 115" attached on the front end.
Specifications
| Size | φ115mm × 65.3mm φ115 × 65.3 mm/4.5 × 2.5 in |
| Weight (air) | 238 g/8.3 oz |
| Depth Rating | 75 m/246 ft |
| Material | Corrosion-resistant aluminum alloy (rigid black alumite) POM (S-MRS Control Ring) |
MRS EXT. Ring 111
JAN/EAN code : 4570018120435
MRS EXT. Ring exclusively for "RF100mm f/2.8 L MACRO IS USM". Use with "M86 Port 07" attached on the front end.
The new S-MRS provides smoother operation with less play or rattle comparing to the previous model. By combining the EOS R6 with an RF lens, the MF Peaking function can also be used during full-time manual focusing. Together with the focus guide function, this enables ultra-precise focusing.
One S-MRS Control Ring is equipped and it can slide freely between each of "Control Ring", "Focus Ring" and "SA Control Ring" of "RF100mm f/2.8 L MACRO IS USM" with "S-MRS Magnet Ring" being attached to control them individually.
Housing side is same M96 threads and M86 threads on the front edge to combine with M86 Port to use wide variety of lenses.
Only “S-MRS Magnet Ring” is usable. The "MRS Magnet Ring" is not usable.
Specifications
| Size | φ115 × 123 mm/4.5 × 4.8 in |
| Weight (air) | 347 g/12.2 oz |
| Depth Rating | 75 m/246 ft |
| Material | Corrosion-resistant aluminum alloy (rigid black alumite) POM (S-MRS Control Ring) |
MRS EXT. Ring exclusively for "RF100mm f/2.8 L MACRO IS USM". Use with "M86 Port 07" attached on the front end.
The new S-MRS provides smoother operation with less play or rattle comparing to the previous model. By combining the EOS R6 with an RF lens, the MF Peaking function can also be used during full-time manual focusing. Together with the focus guide function, this enables ultra-precise focusing.
One S-MRS Control Ring is equipped and it can slide freely between each of "Control Ring", "Focus Ring" and "SA Control Ring" of "RF100mm f/2.8 L MACRO IS USM" with "S-MRS Magnet Ring" being attached to control them individually.
Housing side is same M96 threads and M86 threads on the front edge to combine with M86 Port to use wide variety of lenses.
Only “S-MRS Magnet Ring” is usable. The "MRS Magnet Ring" is not usable.
Specifications
| Size | φ115 × 123 mm/4.5 × 4.8 in |
| Weight (air) | 347 g/12.2 oz |
| Depth Rating | 75 m/246 ft |
| Material | Corrosion-resistant aluminum alloy (rigid black alumite) POM (S-MRS Control Ring) |
M86 Dome Port 110
JAN/EAN code : 4570018120640
A compact dome port with 110mm diameter glass dome with M86 threaded mount. Compatible with various lenses in combination with " MRS EXT. Ring 33 ", " MRS EXT. Ring 54 ", etc.
Optical glass/multi-coating reduces flare and ghosting.
Specifications
| Size | φ132 × 56 mm/5.1 × 2.2 in |
| Weight | (air) 313 g/11.0 oz (including protector) |
| Depth Rating | 75 m/246 ft |
| Material | Corrosion-resistant aluminum alloy (rigid black alumite) Optical glass (multicoated on the inner surface) PC (protector) |
M86 Port 07
JAN/EAN code : 4570018120459
A compact port with M86 threaded mount. Compatible with Canon "RF100mm F2.8 L MACRO IS USM" in combination with "MRS EXT. Ring 111".
Specifications
| Size | φ95 × 18 mm/3.7 × 0.7 in |
| Weight (air) | 134 g/4.7 oz |
| Depth Rating | 75 m/246 ft |
| Material | Corrosion-resistant aluminum alloy (rigid black alumite) Optical glass (multicoated on the inner surface) |
M86 Port 17
JAN/EAN code : 4570018120466
A port with M86 threaded mount. Compatible with Canon "RF35mm F1.8 MACRO IS STM" in combination with "MRS EXT. Ring 33".
Specifications
| Size | φ95 × 28 mm/3.7 × 1.1 in |
| Weight (air) | 164 g/5.7 oz |
| Depth Rating | 75 m/246 ft |
| Material | Corrosion-resistant aluminum alloy (rigid black alumite) Optical glass (multicoated on the inner surface) |
M86 Port 49
JAN/EAN code : 4570018120473
A port with M86 threaded mount. Compatible with Canon "EF100mm f/2.8L Macro IS USM" + "Mount Adapter EF-EOS R" in combination with "MRS EXT. Ring 33" and "EXT. Ring 36".
Specifications
| Size | φ95 × 60 mm/3.7 × 2.3 in |
| Weight (air) | 196 g/6.9 oz |
| Depth Rating | 75 m/246 ft |
| Material | Corrosion-resistant aluminum alloy (rigid black alumite) Optical glass (multicoated on the inner surface) |
M86 Port 55
JAN/EAN code : 4570018120480
A port with M86 threaded mount. Compatible with Canon "RF85mm F2 MACRO IS STM" in combination with "MRS EXT. Ring 33".
Specifications
| Size | φ95 × 65 mm/3.7 × 2.5 in |
| Weight (air) | 213 g/7.5 oz |
| Depth Rating | 75 m/246 ft |
| Material | Corrosion-resistant aluminum alloy (rigid black alumite) Optical glass (multicoated on the inner surface) |
M86 Port 82
JAN/EAN code : 4570018120497
A port with M86 threaded mount. Compatible with Sigma "70mm F2.8 DG MACRO" + "Mount Adapter EF-EOS R" in combination with "MRS EXT. Ring 33" and "EXT. Ring 36".
Specifications
| Size | φ95 × 97 mm/3.7 × 3.8 in |
| Weight (air) | 296 g/10.4 oz |
| Depth Rating | 75 m/246 ft |
| Material | Corrosion-resistant aluminum alloy (rigid black alumite) Optical glass (multicoated on the inner surface) |
M96 Dome Port 110
JAN/EAN code : 4570018120657
A compact dome port with 110mm diameter glass dome with M96 thread mount. Compatible with various lenses directly attached on the "X-2 R6" housing or in combination with an M96 threaded EXT. ring such as " MRS EXT. Ring 50 ". Optical glass/multi-coating reduces flare and ghosting.
Specifications
| Size | φ132 × 56 mm/5.1 × 2.2 in |
| Weight | (air) 339 g/11.9 oz (including protector) |
| Depth Rating | 75 m/246 ft |
| Material | Corrosion-resistant aluminum alloy (rigid black alumite) Optical glass (multicoated on the inner surface) PC (protector) |
Dome Port II･ Protector II Set (M96)
JAN/EAN code : 4562121430235
The large 150mm diameter dome glass with M96 threaded connection is perfect for split shots. Directly attached on the "X-2 R6" housing or connected to the M96 threaded EXT. Ring to use various types of lenses. Optical glass/multi-coating reduces flare and ghosting.
Specifications
| Size | φ170 × 63 mm/6.6 × 2.4 in |
| Weight (air) | 675 g/23.8 oz (including protector) |
| Depth Rating | 75 m/246 ft |
| Material | Corrosion-resistant aluminum alloy (rigid black alumite) Optical glass (multicoated on the inner surface) PC (protector) |
EXT. Ring 18
JAN/EAN code : 4562121435872
An extension ring with effective length of 18mm using M96 male/female threaded mounts. For use with Canon "EF8-15mm F4L Fisheye USM" + "Mount Adapter EF-EOS R" in combination with "MRS EXT. Ring 33" and "M86 Dome Port 115".
Specifications
| Effective Length | 18 mm/0.7 in |
| Weight (air) | 83.1 g/2.9 oz |
| Material | Corrosion-resistant aluminum alloy (rigid black alumite) |
EXT. Ring 36
JAN/EAN code : 4562121435896
An extension ring with 36mm effective length using M96 male/female threaded mounts. Required when using Canon "EF100mm f/2.8L Macro IS USM" + "Mount Adapter EF-EOS R" or "Sigma 70mm f/2.8 DG MACRO" + "Mount Adapter EF-EOS R".
Specifications
| Effective Length | 36 mm/1.4 in |
| Weight (air) | 135.1 g/4.8 oz |
| Material | Corrosion-resistant aluminum alloy (rigid black alumite) |
S-MRS Magnet Ring
JAN/EAN code : 4570018120503
A magnet ring attached on the camera lens to control various lens rings by magnetic attraction with an S-MRS Control Ring on "MRS EXT. Ring 33" or "MRS EXT. Ring 111".
The S-MRS Magnet Ring has been newly designed to optimize the magnetic attraction to achieve smoother operation without any play or rattle comparing to the previous model. Only "MRS EXT. Ring 33" and "MRS EXT. Ring 111" are usable. Other MRS ports are not compatible.
Specifications
| Weight (air) | 17 g/0.5 oz |
S-MRS Magnet Ring C8-15 Set
JAN/EAN code : 4570018120510
A set of "S-MRS Magnet Ring" and "Magnet Ring Adapter C8-15". Attaching on the Canon "EF8-15mm F4L Fisheye USM" lens enables zoom operation. Only "MRS EXT. Ring 33" and "MRS EXT. Ring 111" are usable. Other MRS ports are not compatible.
Specifications
| Weight (air) | 72 g/2.5 oz |
S-MRS Magnet Ring RF35 Set
JAN/EAN code : 4570018120527
A set of "S-MRS Magnet Ring" and "Magnet Ring Adapter RF35". Attaching on the Canon "RF35mm F1.8 MACRO IS STM" lens enables manual focus operation. Only "MRS EXT. Ring 33" and "MRS EXT. Ring 111" are usable. Other MRS ports are not compatible.
Specifications
| Weight (air) | 63 g/2.2 oz |
S-MRS Magnet Ring S70 Set
JAN/EAN code : 4570018120534
A set of "S-MRS Magnet Ring" and "Magnet Ring Adapter S70". Attaching on the Sigma "70mm F2.8 DG MACRO" lens enables manual focus operation. Only "MRS EXT. Ring 33" and "MRS EXT. Ring 111" are usable. Other MRS ports are not compatible.
Specifications
| Weight (air) | 75 g/2.6 oz |
■S-MRS Magnet Ring RF14-35
JAN/EAN code : 4570018120664
A magnet ring specifically designed for "Canon RF14-35mm F4L IS USM". In combination with compatible "MRS EXT. Ring 50", it supports zoom operation of the "RF14-35mm F4L IS USM".
Not compatible with other MRS port group except "MRS EXT. Ring 50".
Specifications
| Weight (air) | 60 g/2.1 oz |
S-MRS Zoom Ring RF15-30
JAN/EAN code : 4570018120688
Tailored magnet ring for Canon "RF15-30mm F4.5-6.3 IS STM".
In combination with the compatible "MRS EXT. Ring 54", it enables zoom operation of the "RF15-30mm F4.5-6.3 IS STM".
Specifications
| Weight (air) | 63 g/2.2 oz |
S-MRS Focus Ring RF15-30
JAN/EAN code : 4570018120671
Tailored magnet ring for Canon "RF15-30mm F4.5-6.3 IS STM".
In combination with compatible "MRS EXT. Ring 54", it enables "RF15-30mm F4.5-6.3 IS STM" focus operation.
Canon "RF15-30mm F4.5-6.3 IS STM" can drastically reduce minimum focus distance by setting to manual focus enabling to approach to a subject up-close.
Use of this product "S-MRS Focus Ring RF15-30" is the one to get.
Specifications
| Weight (air) | 36 g/1.2 oz |
