INON

UWL-95 C24 M52 Wide Conversion Lens

 [Discontinued]

UWL-95 C24 M52

M52 screw mount type for Olympus TG series housings.

Compatible camera system (as of April, 2020)
・Olympus PT-059, PT-058, PT-056

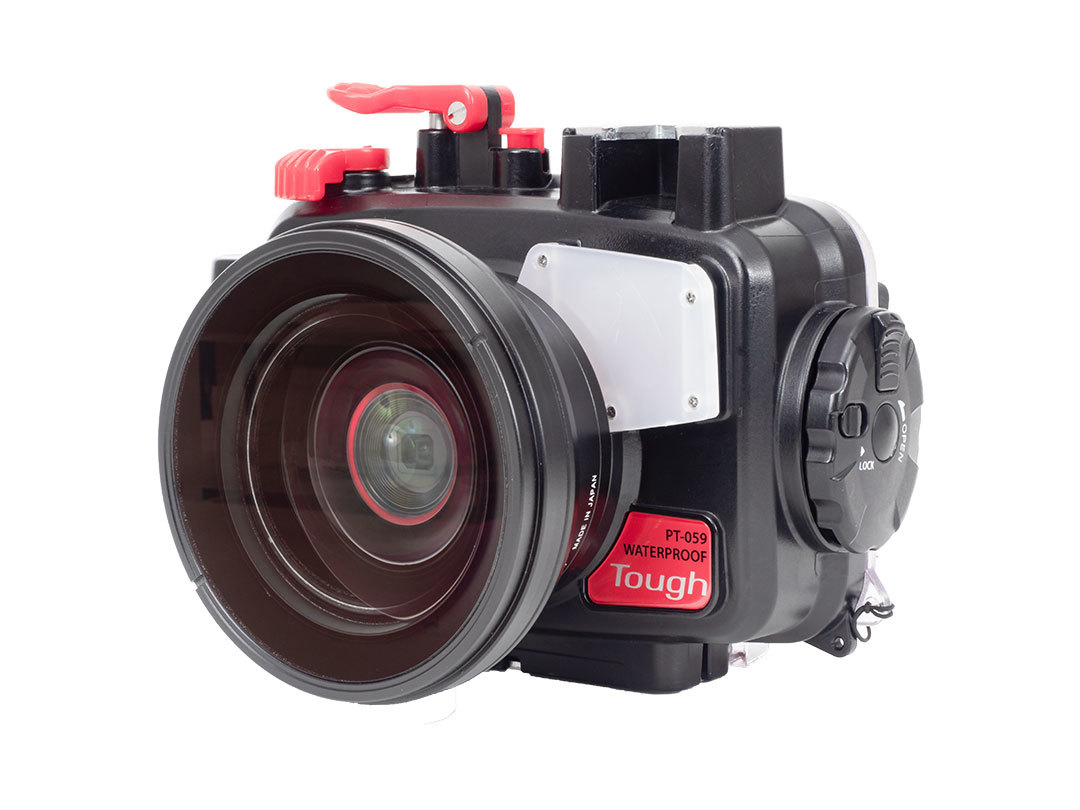

Olympus PT-059 set-up example

Olympus PT-059 set-up example
Olympus PT-059 set-up example


UWL-95 C24 M67 Type 1 Wide Conversion Lens

 [Discontinued]

UWL-95 C24 M67

Installing on Sony MPK-URX100A

M67 screw mount type for Sony RX100 series housing.

Compatible camera system (as of April, 2020)
・Sony MPK-URX100A
Confirmed camera models: RX100M3, RX100M4, RX100M5, RX100M5A


Type1 screw mount
Type1 screw mount

UWL-95 C24 M67 Type2 Wide Conversion Lens

 [Discontinued]

UWL-95 C24 M67

Versatile M67 screw mount for various housings.

Compatible camera system (as of April, 2020)
A housing with a lens port of 6 mm/0.2 inch or less distance between lens port edge and lens port surface.


Type2 screw mount
Type2 screw mount
page top

UWL-95 C24 Features

Newly designed optical design enables to shoot with 1-inch large sensor cameras from 24mm wide end without vignetting providing you high quality underwater wide imaging in any environment.

Dual Use Land/Underwater
Maximum angle of view underwater is approx. 95°. When using on land, maximum angle of view increases approx. 159° to easily enjoy fisheye effect. Miniaturized lens body benefits you to capture both a subject in confined area and open space with camera stored in a housing.


Minimum Focusing Distance 0cm
Installing the UWL-95 C24 on compatible camera/housing will shorten minimum focusing distance to 0cm. A subject just in front of the lens or distant seascape never get out of focus. The lens won’t limit shooting distance.

*When shooting at zoom wide end.


Renewed Optical Design for Quality Underwater Images
Redesigned optical construction effectively suppresses flare/ghosting even in unfavorable condition like shooting a subject with backlight. Optimized optical design for compatible cameras’ master lenses, brings out sharp contrast and clear images

Optical Anti-Reflection Coating (AR-Coating)
Having AR-coating on each optical element provides clear and stable image quality in any situation including unfavorable condition likely to have flare/ghosting.

Usable with All Zoom Range
Usable throughout all optical zoom range when the lens is being attached on the compactible housing/camera.

For confirmed usable camera/housing click here

Versatile Three Different Lens Mounts
Available lens mounts are M67 Type1, M67 Type2 and M52. Newly introduced M52 mount is directly screwed in a housing lens port with M52 thread without a step-up ring.

Super Wide Option Compatibility for Underwater Angle of View 141°
Installing optional Dome Lens Unit IIIA/Dome Lens Unit IIIG increases the UWL-95 C24 native underwater angle of view 95° to 141°.
