INON

XD Mount

XD Mount for M67 Port

JAN/EAN code : 4570018120329

XD Mount for M67 Port
XD mount for M67 port installation example

An adapter attached to the M67 screw on the port end to convert to "XD mount" enabling instant attachment of various INON XD Mount close-up lenses, variable red filter and commercially available ND filters. Ultra thin design keeps the camera lens and conversion lens close together. Despite being an optional part, it maintains quality image when using various close-up lenses.

Compatible port
M86 Port 07, M86 Port 17, M86 Port 49, M86 Port 55

page top

Finder Unit

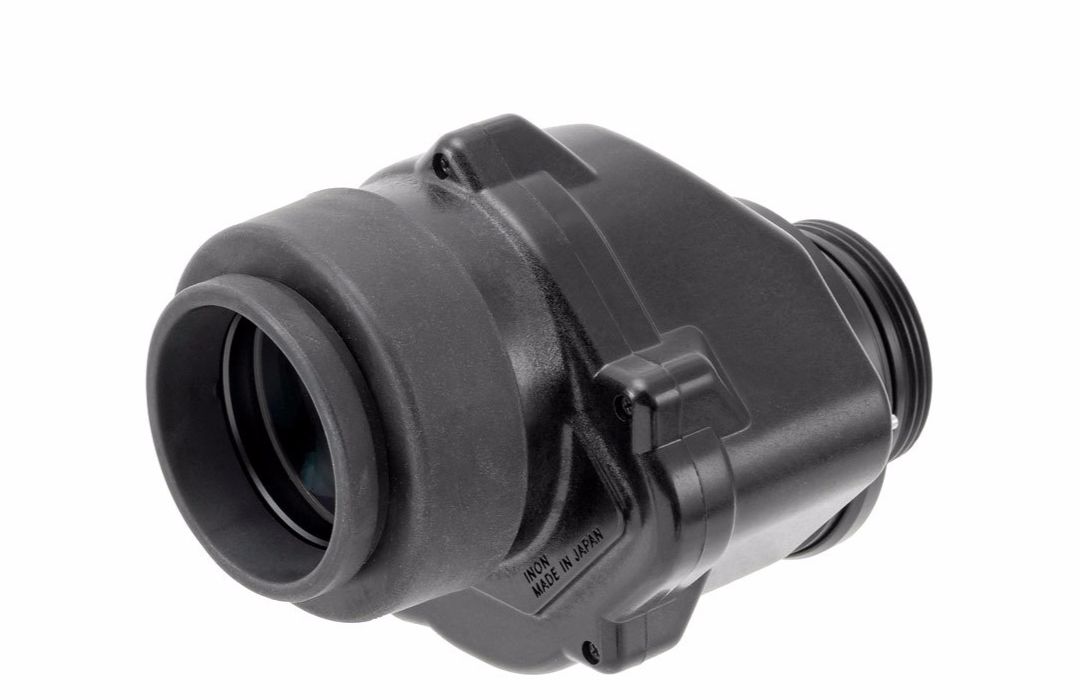

Straight Viewfinder Unit II for X-2

JAN/EAN code : 4562121439207

Straight Viewfinder Unit II for X-2

Compact and lightweight straight type viewfinder designed for full frame DSLR. Using a large prism having less light attenuation enables to see clearer and brighter viewfinder image even corners and to provide less visual variation with different eye positions. INON viewfinder provides unparalleled bright finder image to support fine focusing comfortably even dark underwater. Optically designed to suit to an EVF: electrical viewfinder of a full size DSLR camera providing wider viewing angle having minimal vignetting or blurred part even at corners. The viewfinder provides same magnification as camera’s viewfinder (1.0x) and extends its eye-point at 60 mm/2.4 in. not to have vignetting even through a mask. High quality optical components are carefully housed in a small, light yet durable body which is made from corrosion resistant aluminum alloy and FRP: fiber reinforced plastic.
Optional “Lock Ring Tool for X-2 Finder Unit” is required for installation.

Weight (air) : 305 g/10.7 oz

Straight Viewfinder Unit II for X-2

Compact and lightweight straight type viewfinder designed for full frame DSLR. Using a large prism having less light attenuation enables to see clearer and brighter viewfinder image even corners and to provide less visual variation with different eye positions. INON viewfinder provides unparalleled bright finder image to support fine focusing comfortably even dark underwater. Optically designed to suit to an EVF: electrical viewfinder of a full size DSLR camera providing wider viewing angle having minimal vignetting or blurred part even at corners. The viewfinder provides same magnification as camera’s viewfinder (1.0x) and extends its eye-point at 60 mm/2.4 in. not to have vignetting even through a mask. High quality optical components are carefully housed in a small, light yet durable body which is made from corrosion resistant aluminum alloy and FRP: fiber reinforced plastic.
Optional “Lock Ring Tool for X-2 Finder Unit” is required for installation.

Weight (air) : 305 g/10.7 oz

45°Viewfinder Unit II for X-2

JAN/EAN code : 4562121439306

45° Viewfinder Unit III for X-2

Enables to see all finder image without vignetting even through a mask by extending eye point without changing finder image size (1.0x). 45° angled eyepiece benefits you to shoot a low angle subject like a goby on sand area etc. Also the eyepiece rotates 360° supporting comfortable vertical low angle shot.Viewfinders with serial number D294600 or later are compatible with the "X-2 R6 Mark II" housing. Earlier serial numbers are not compatible.


Factory modification is available if you own previous version and need to retrofit to use for the X-2 R6 Mark II housing. Please consult your purchasing dealer.

Optional “Lock Ring Tool for X-2 Finder Unit” is required for installation.

Weight (air) :337 g/11.8 oz

45° Viewfinder Unit III for X-2

Enables to see all finder image without vignetting even through a mask by extending eye point without changing finder image size (1.0x). 45° angled eyepiece benefits you to shoot a low angle subject like a goby on sand area etc. Also the eyepiece rotates 360° supporting comfortable vertical low angle shot.
Viewfinders with serial number D294600 or later are compatible with the "X-2 R6 Mark II" housing. Earlier serial numbers are not compatible.


Factory modification is available if you own previous version and need to retrofit to use for the X-2 R6 Mark II housing. Please consult your purchasing dealer.

Optional “Lock Ring Tool for X-2 Finder Unit” is required for installation.

Weight (air) :337 g/11.8 oz

Lock Ring Tool for X-2 Finder Unit

JAN/EAN code : 4562121433052

Lock Ring Tool for X-2 Finder Unit

Required tool to attach and remove a viewfinder unit on the X-2 R5/X-2 R6/ X-2 R6 Mark II housing.

page top

Cable

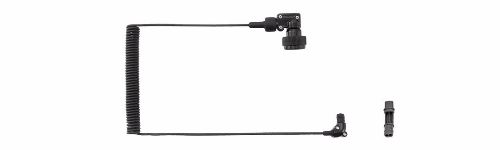

Optical D Cable Type L Rubber Bush Set 2

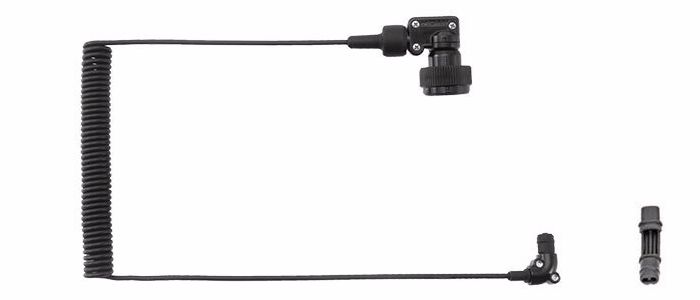

Optical D Cable Type L Rubber Bush Set 2

Fiber optics products to connect the X-2 R5/X-2 R6/X-2 R  Mark IIhousing and compatible strobe via optical cable adapter. Four different lengths to select; Optical D Cable Type L Rubber Bush Set 2 (free length approx. 43 cm/17 in.), Optical D Cable L Type L Rubber Bush Set 2 (free length approx. 68 cm/27 in.), Optical D Cable LL Type L Rubber Bush Set 2 (free length approx. 110 cm/43 in.) or Optical D Cable SS Type L Rubber Bush Set 2 (free length approx. 24 cm/9 in.)

page top

Tray, Handle

Advanced Quick Shoe Compatible Tray

Quick Shoe Main Base
JAN/EAN code : 4562121439863
Quick Shoe W50 Plate x2
JAN/EAN code : 4562121439818
D5 Holder x2
JAN/EAN code : 4562121439542

Advanced Quick Shoe Compatible Tray


INON unique Arca Swiss system "Quick Shoe". The system is composed of two "Quick Shoe W50 Plate" attached on a housing body, one "Quick Shoe Main Base" and two "D5 Holder" enabling to quickly change camera positions between landscape and portrait without changing lighting position benefitting to shoot a low angle portrait image with ideal lighting.

Standard combo, Grip Base D5 + D5 Holder

Grip Base D5
JAN/EAN code : 4562121439535
D5 Holder
JAN/EAN code : 4562121439542

Standard combo, Grip Base D5 + D5 Holder


Standard tray with handles featuring high durability and affordability.
The combination of "Grip Base D5" and "D5 Holder" allows arms to extend from both sides.
Enabling to use a commercially available lanyard.
With the "Direct Base III", the attachment angle can be selected from 8 directions, and with the "Multi Direct Base II", from 4 directions.

Size: W33.6 x H47.8 x T1.5 mm/W1.3 x H1.9 x T0.1 inch
Weight: [air]9.8g/0.3oz [underwater] approx.8g/0.3 oz
Material: Stainless

page top

Direct Base

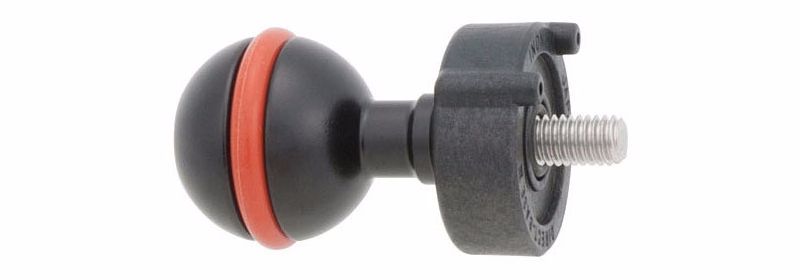

Direct Base III

JAN/EAN code : 4562121436541

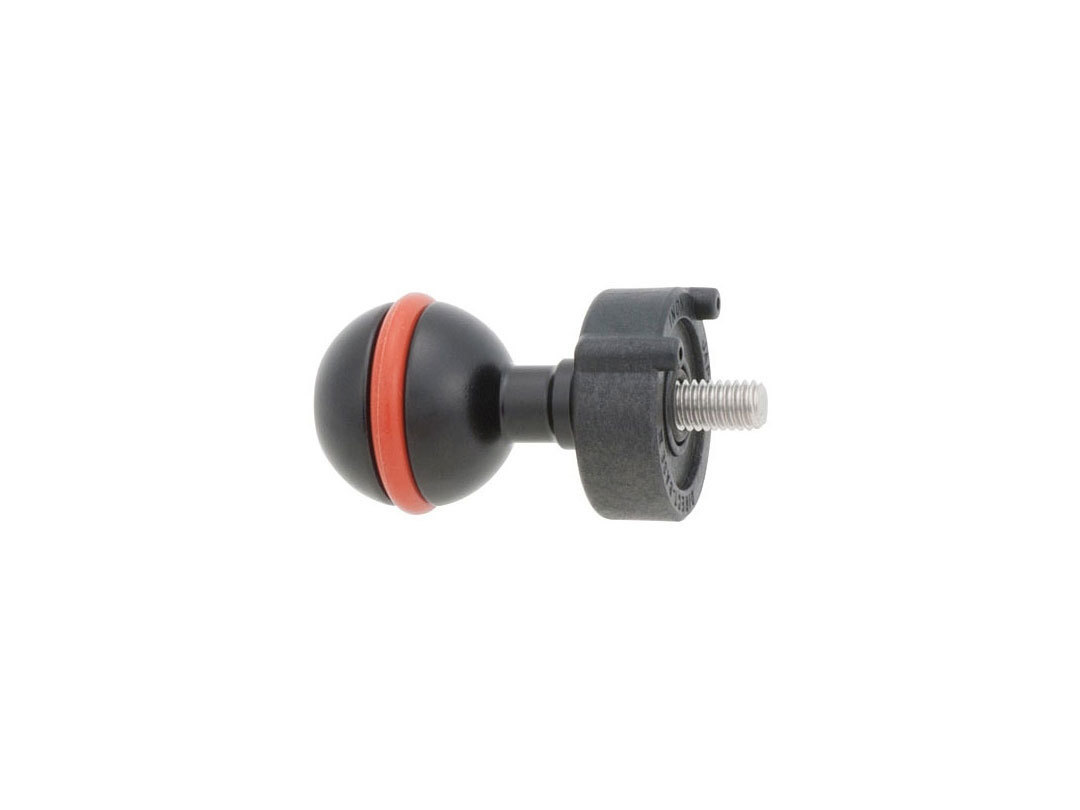

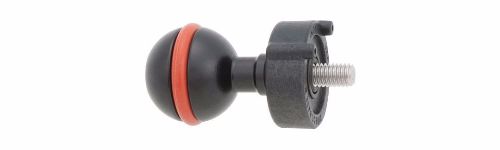

Direct Base III

A ball adapter attached on the "D5 Holder" equipped on both sides of the X-2 R6 Mark II housing. An arm system can be attached via "Clamp III".

Full length : 45 mm/1.8 in
Effective length : 32 mm/1.3 in
Weight : 35 g/1.2 oz[air]/approx.23 g/0.8 oz[underwater]

page top

Lanyard Plate

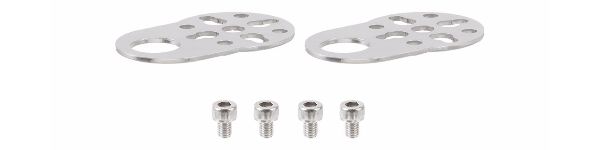

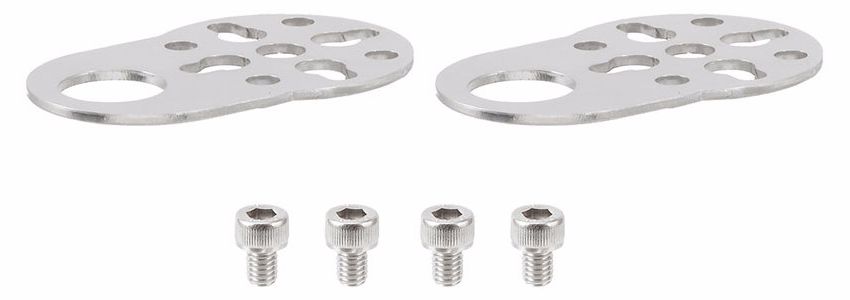

D5 Lanyard Plate 2

JAN/EAN code : 4570018120541

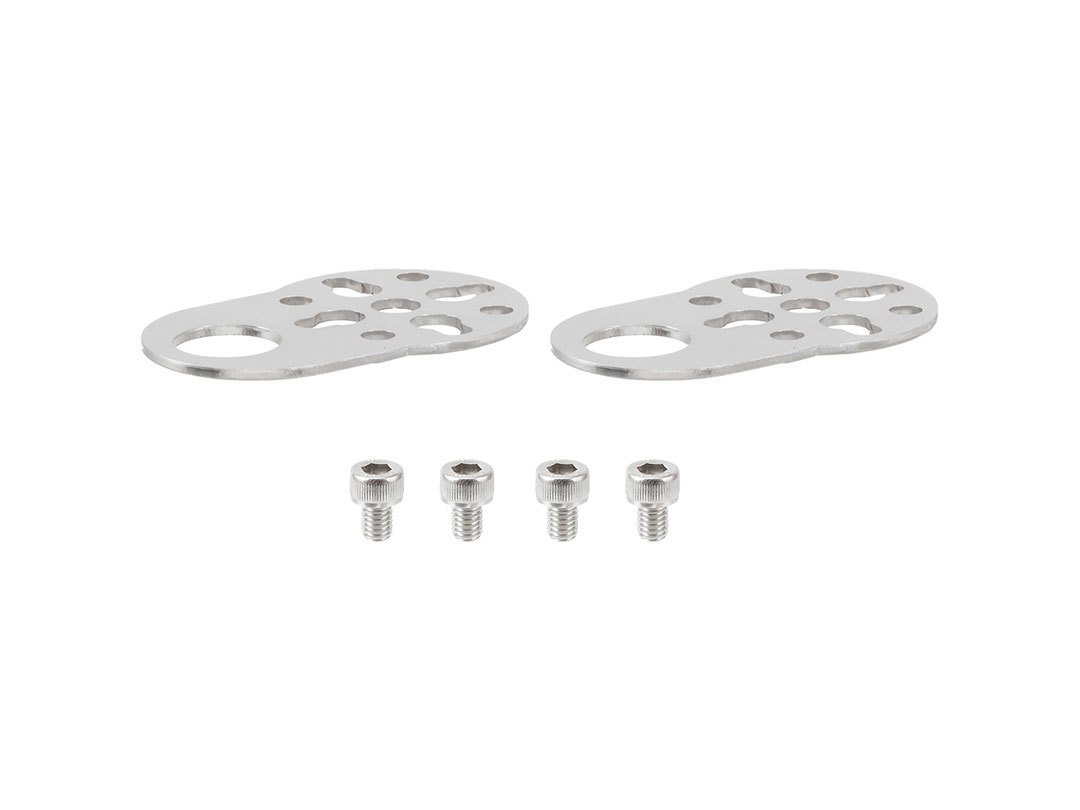

D5 Lanyard Plate 2

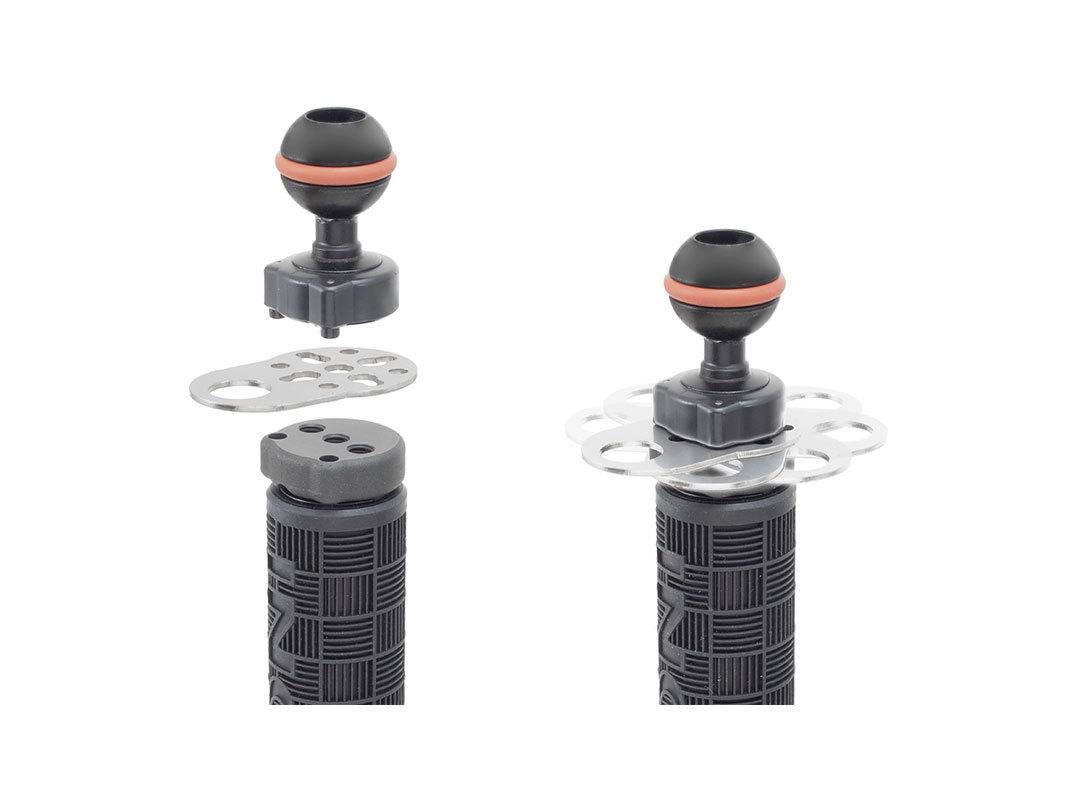

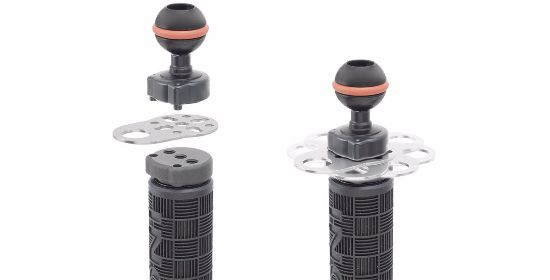

Installing this plate on top of the D5 Holder enables to attach a commercially available lanyard.
The lanyard eyelet location can be selected from 8 directions ( Direct Base III), or 4 directions (Multi Direct Base II).

Size : W33.6 x H47.8 x T1.5 mm /W1.3 x H1.8 x T0.05 in
Weight : [Air] 52 g (1.8 oz) [Underwater] approx. 42 g (1.5 oz)
Material : Stainless

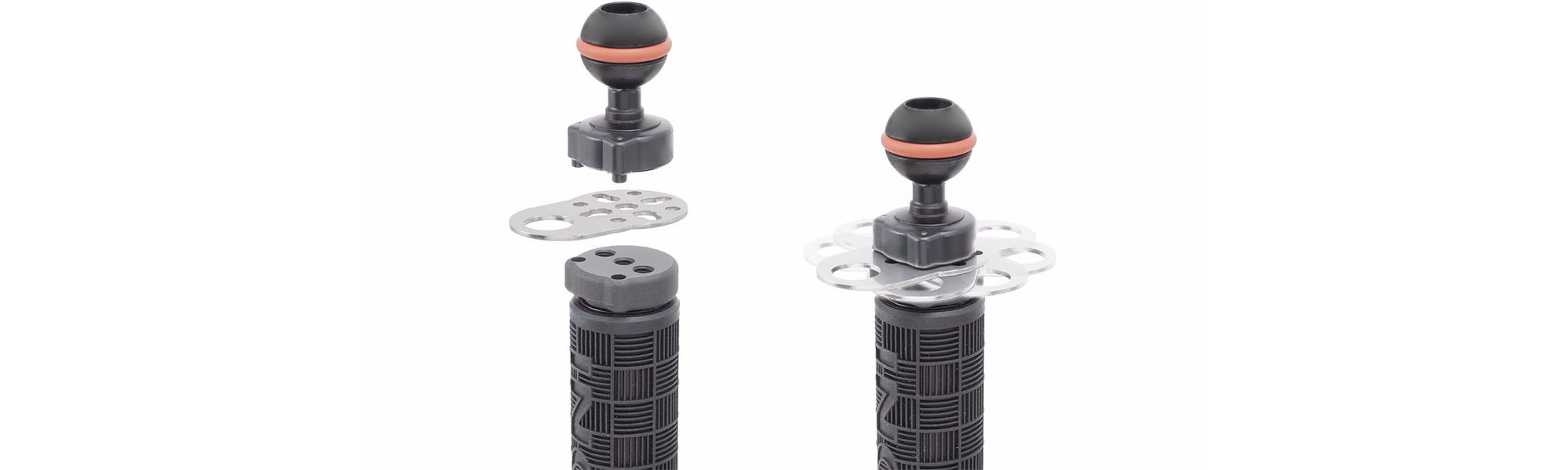

装着例
page top

Quick Shoe

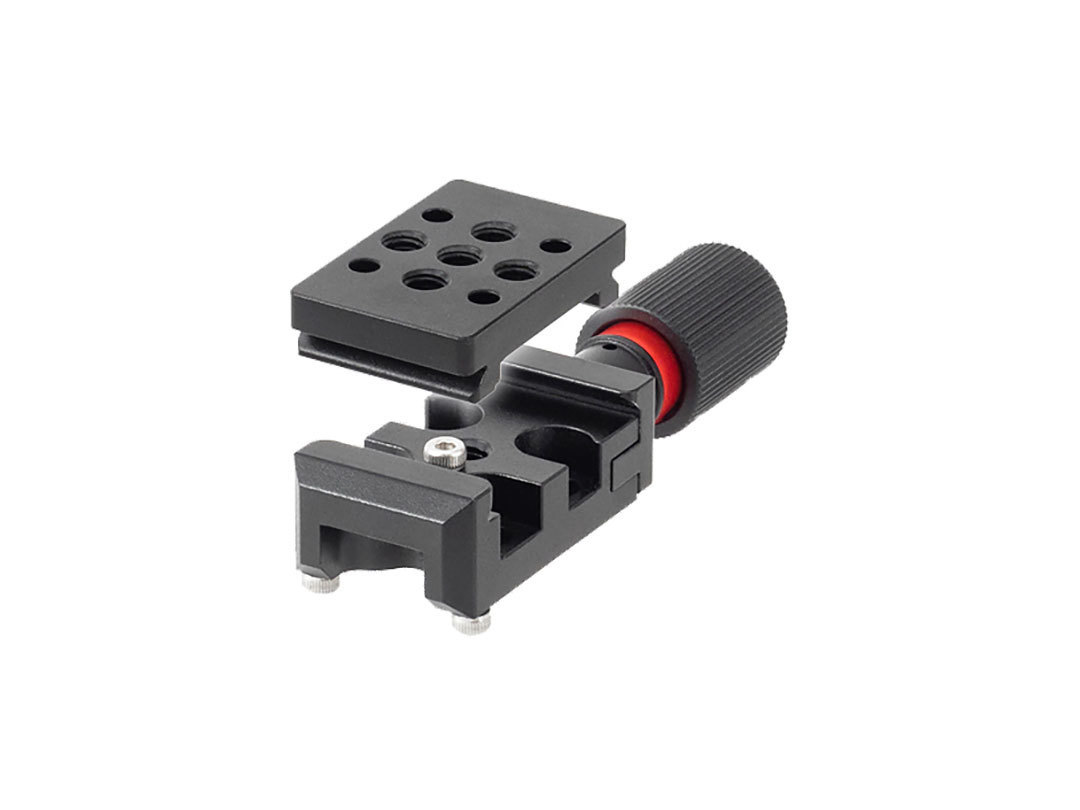

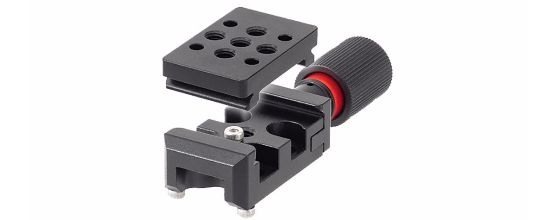

Quick Shoe W27 Set

JAN/EAN code : 4570018120169

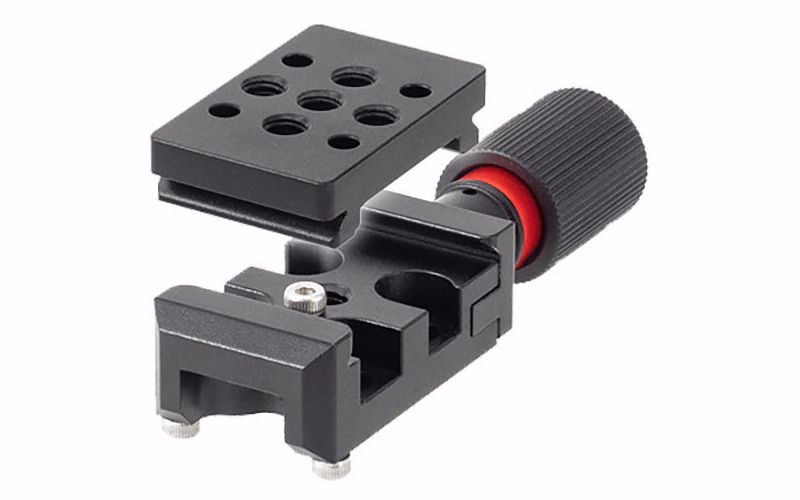

Quick Shoe W27 Set

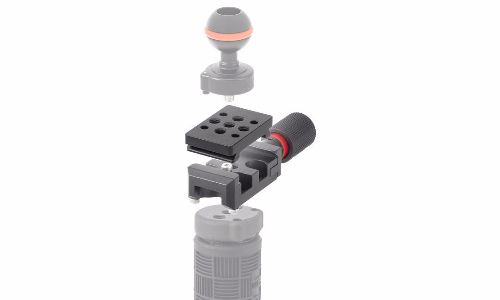

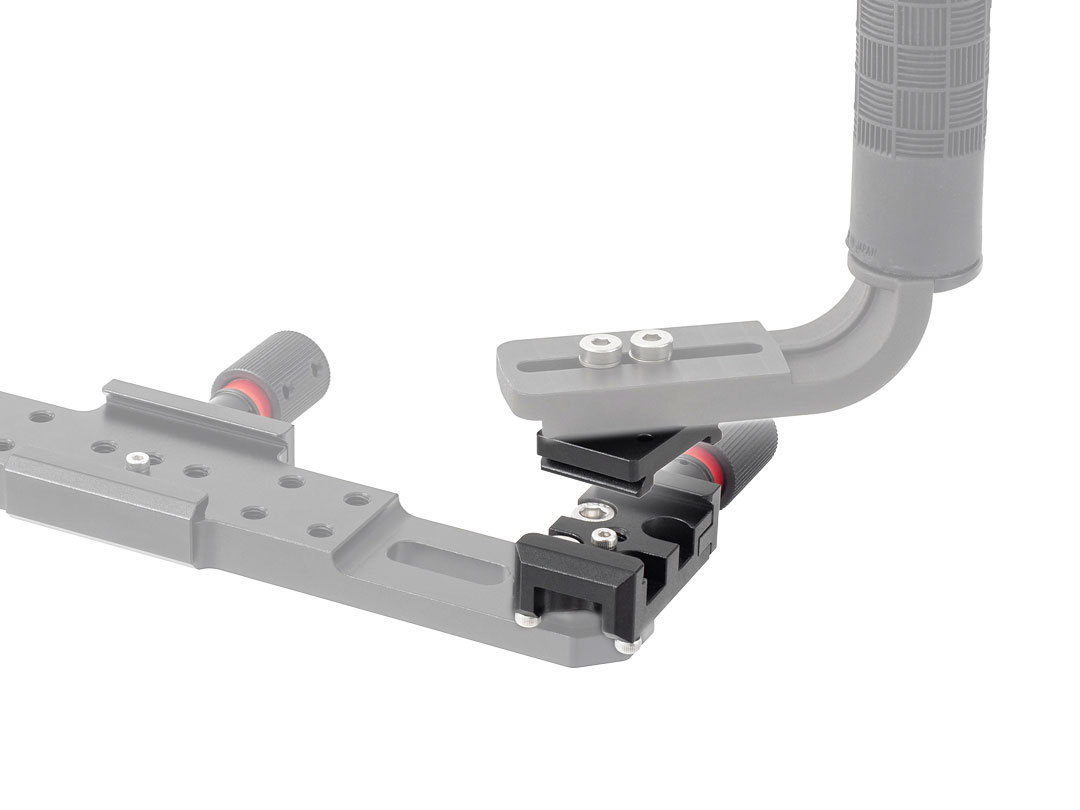

Quick Shoe W27 Set Setup example
Compact Quick Shoe with 27 mm/1.1 inch width. Set of the Quick Shoe W27 Plate and Quick Shoe W27 Clamp.

Attached on the "D5 Holder" to easily attach and detach combined base stay and ball arm underwater.

Full length : 95 mm/3.7 inch
Weight : 90 g/3.1 oz[air]/approx.60 g/2.1 oz[underwater]

クイックシューW27セット
クイックシューW27セット装着例
クイックシューW27セット装着例

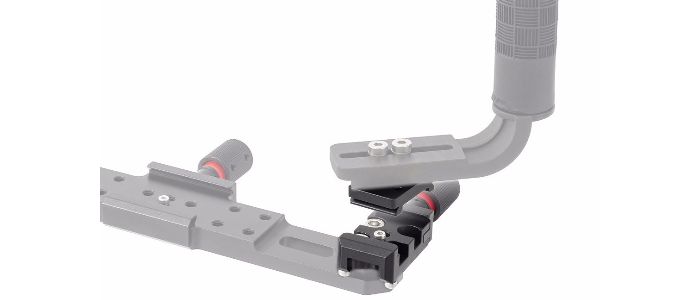

Quick Shoe W27 Set Setup example
Compact Quick Shoe with 27 mm/1.1 inch width. Set of the Quick Shoe W27 Plate and Quick Shoe W27 Clamp.

Attached on the "D5 Holder" to easily attach and detach combined base stay and ball arm underwater.

Full length : 95 mm/3.7 inch
Weight : 90 g/3.1 oz[air]/approx.60 g/2.1 oz[underwater]

page top

Shoe Base

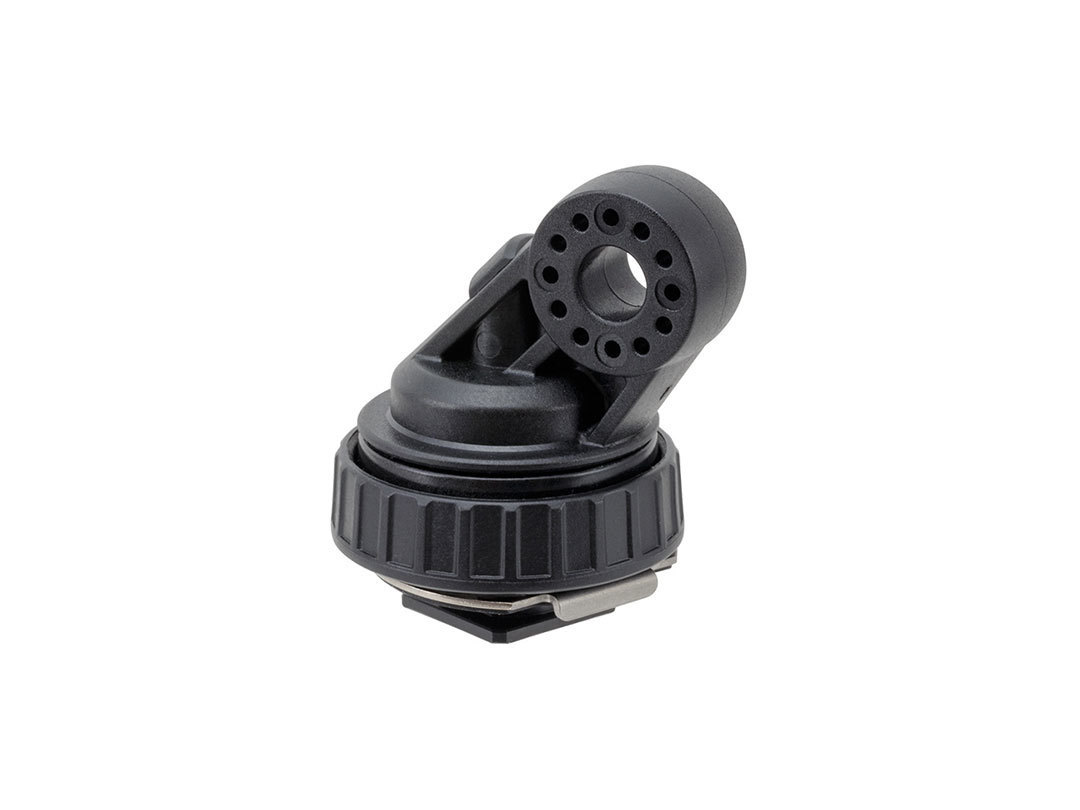

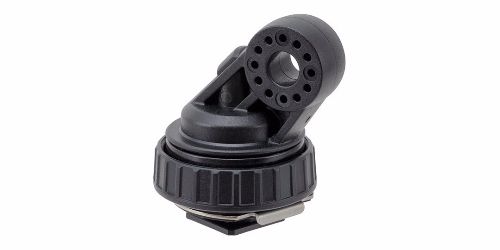

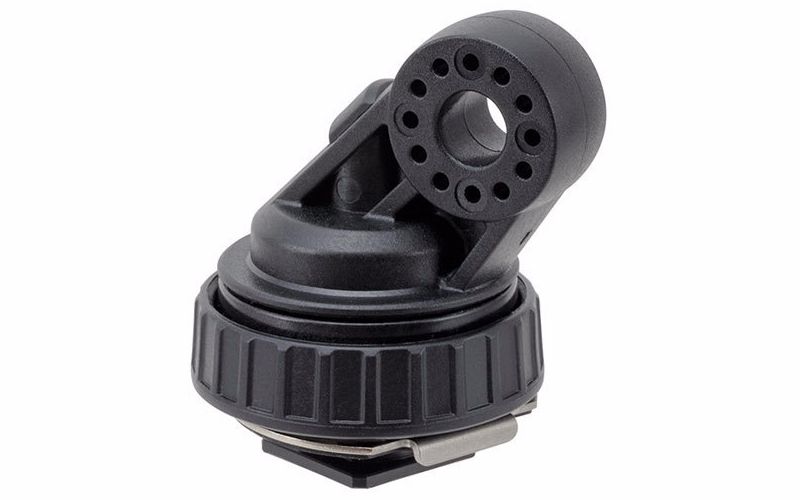

Shoe Base II

JAN/EAN code : 4562121438705

Shoe Base II

A YS mount adapter to use on an accessory shoe of the X-2 R5/X-2 R6/X-2 R6 Mark II. The base part rotates 360 degree which benefit you to adjust aiming of combined lighting system sideways in addition to up and down adjustment.

Compatible products (YS joint)
Full length : 52 mm/2.0 in
Weight : 45 g/1.5 oz[air]/approx.20 g/0.7 oz[underwater]

Shoe Base BALL

JAN/EAN code : 4562121438521

Shoe Base BALL

A ball adapter attached on the accessory shoe of the X-2 R5/X-2 R6/X-2 R6 Mark II housing. An arm system can be attached via "Clamp III".

Full length : 55 mm/2.1 in
Weight : 52 g/1.8 oz[air]/approx.28 g/0.9 oz[underwater]

page top

Housing, Port Cap

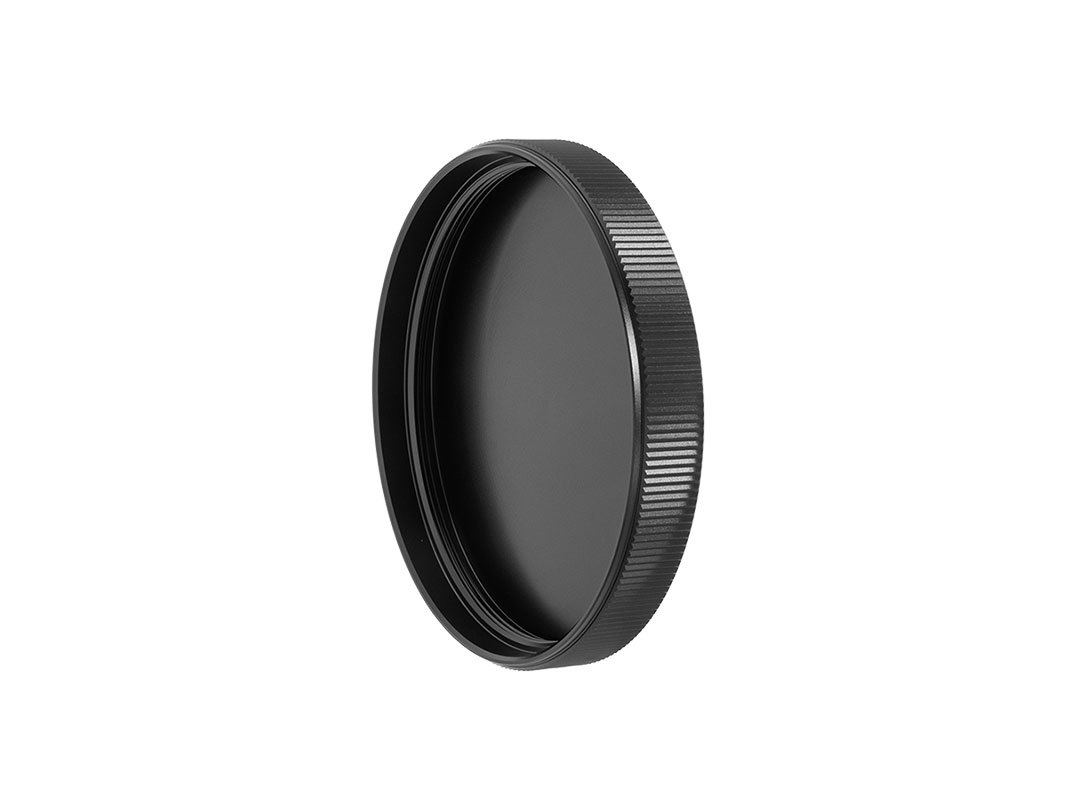

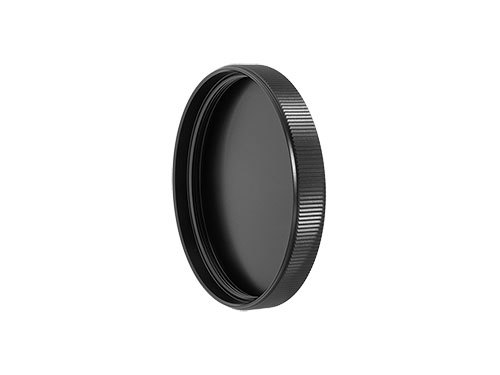

M86 Rear Port Cap

JAN/EAN code : 4570018120923

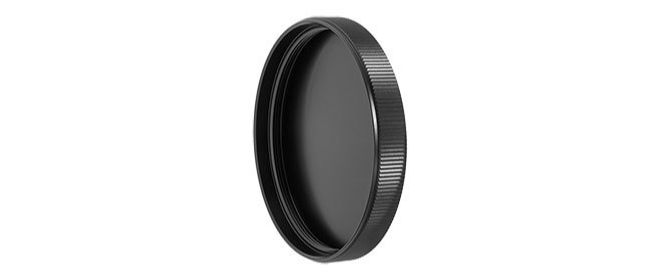

M86 Rear Port Cap

A rear port cap for M86 thread lens ports to protect the port O-ring during transportation and storage. Designed to vent air not to have excessive pressure inside when transporting in airplanes.

Compatible Port
M86 Dome Port 110
M86 Port 07
M86 Port 17
M86 Port 49
M86 Port 55
M86 Port 82

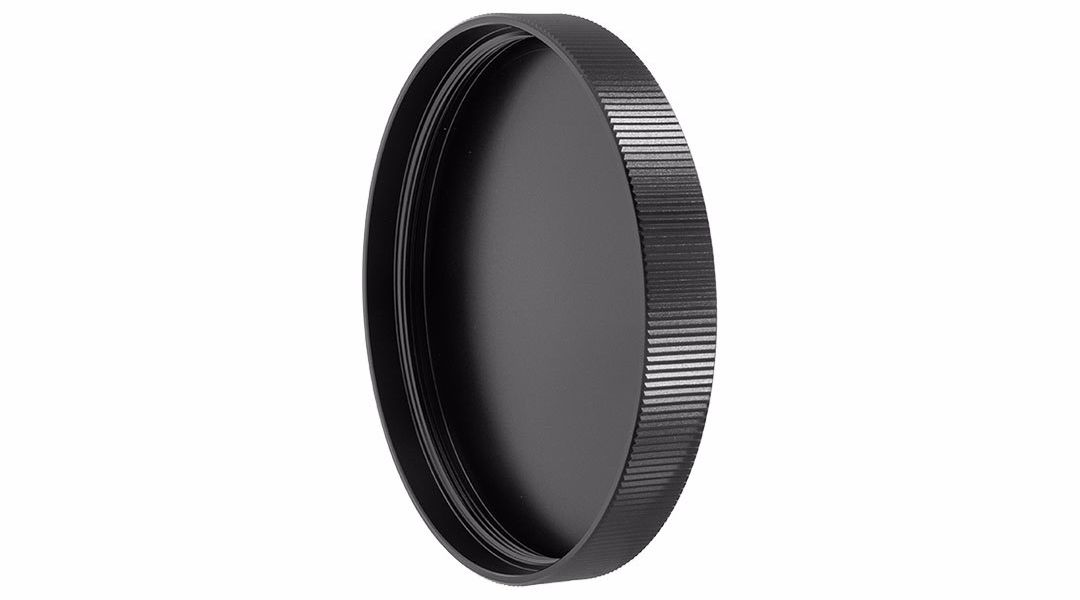

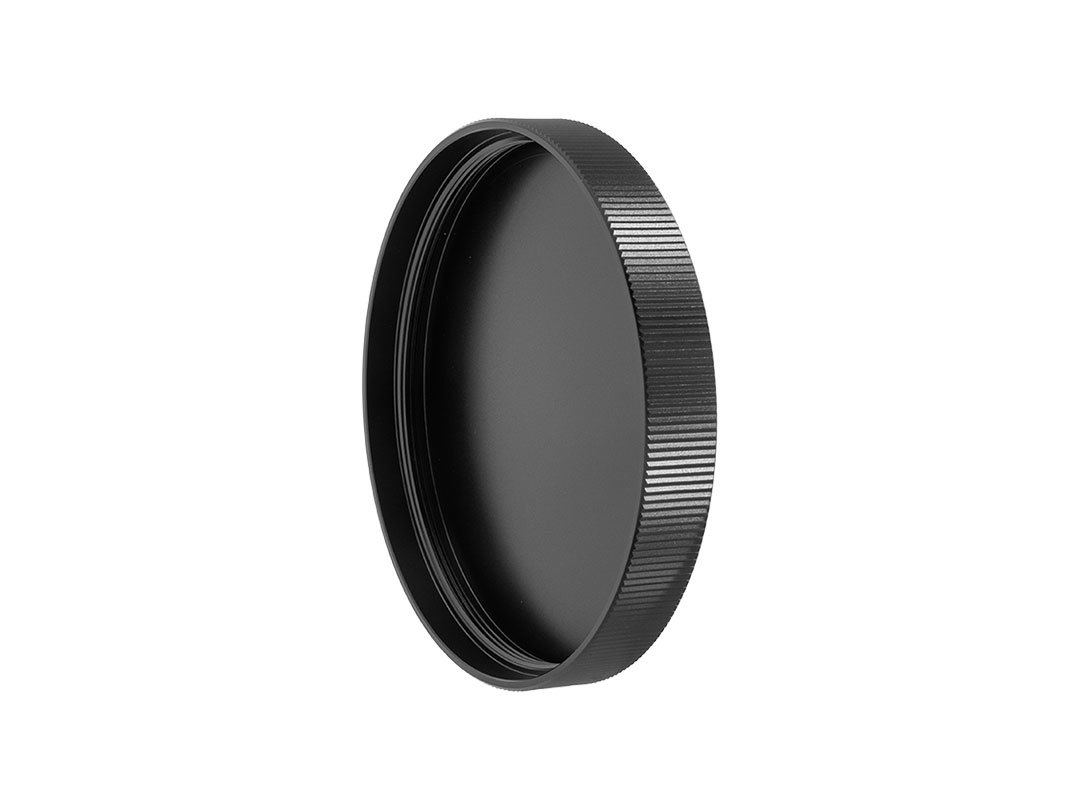

M96 Rear Port Cap

JAN/EAN code : 4570018120930

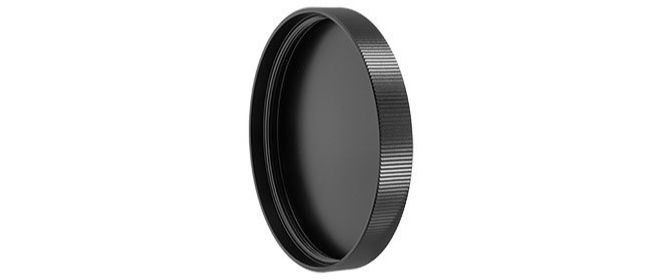

M96 Rear Port Cap

A rear port cap for M96 thread lens ports to protect the port O-ring during transportation and storage. Designed to vent air not to have excessive pressure inside when transporting in airplanes.

Compatible Port
M96 Dome Port 110
Dome Port II・ Protector II Set (M96)

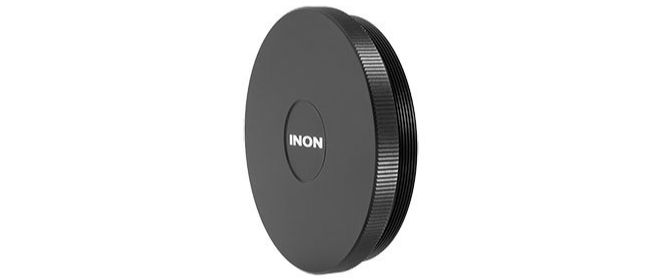

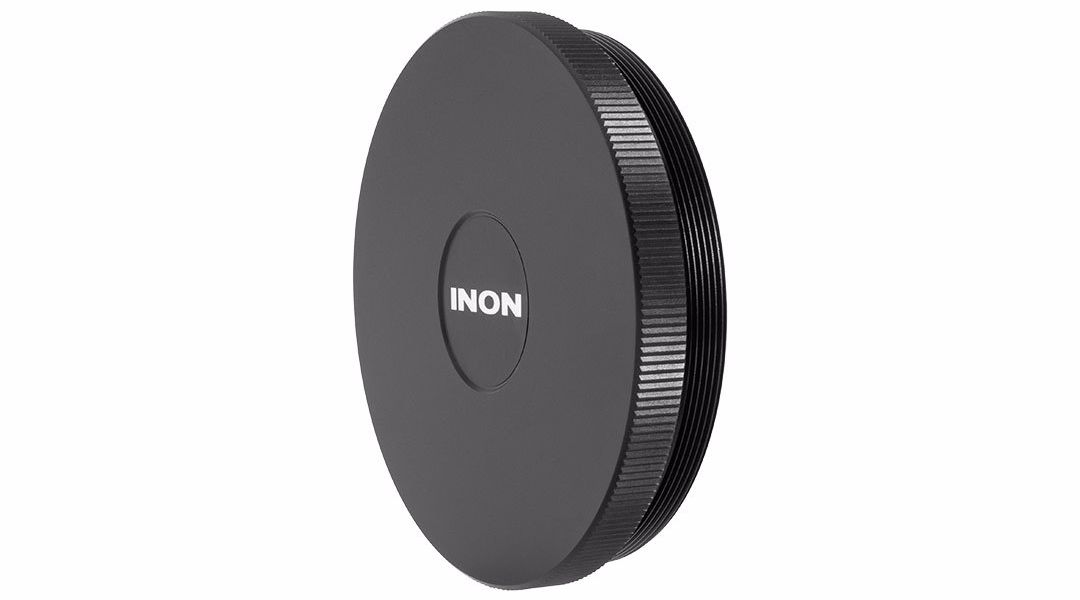

Housing Body Cap

JAN code : 4562121430136

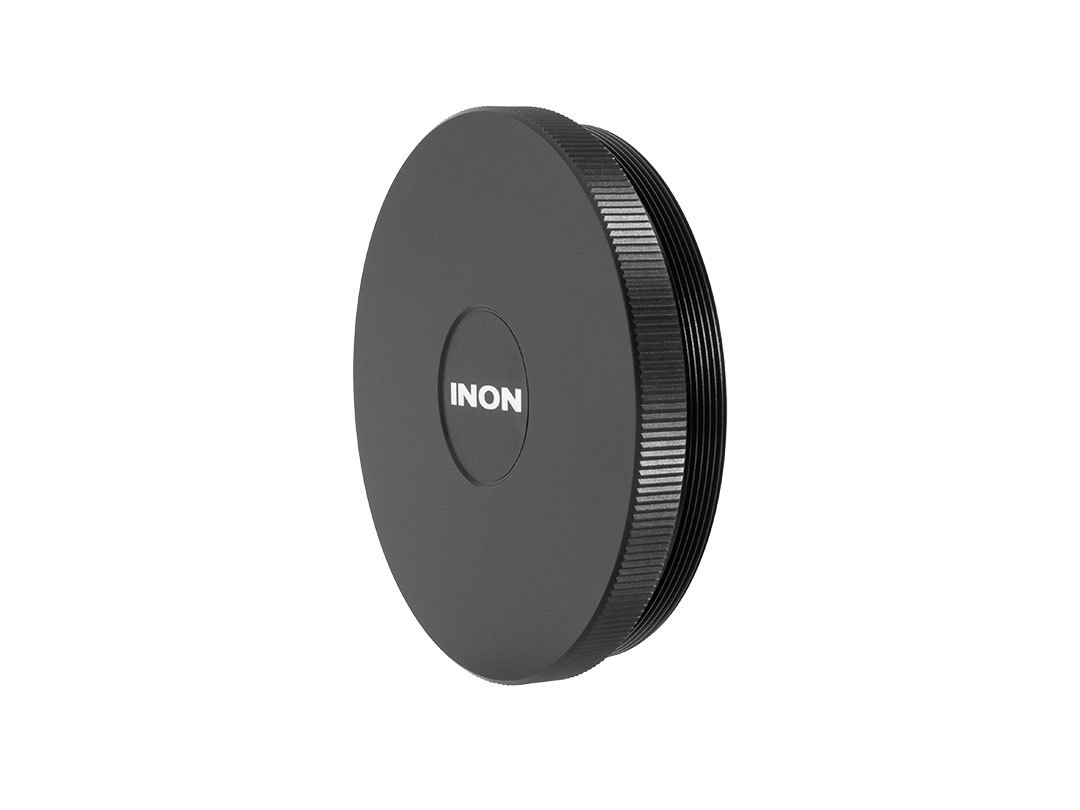

Housing Body Cap

Usage example

A cap for port mount of a housing to protect O-ring contact surface. The cap is designed to equalize with ambient pressure when transporting in an aircraft.

page top

Service Parts

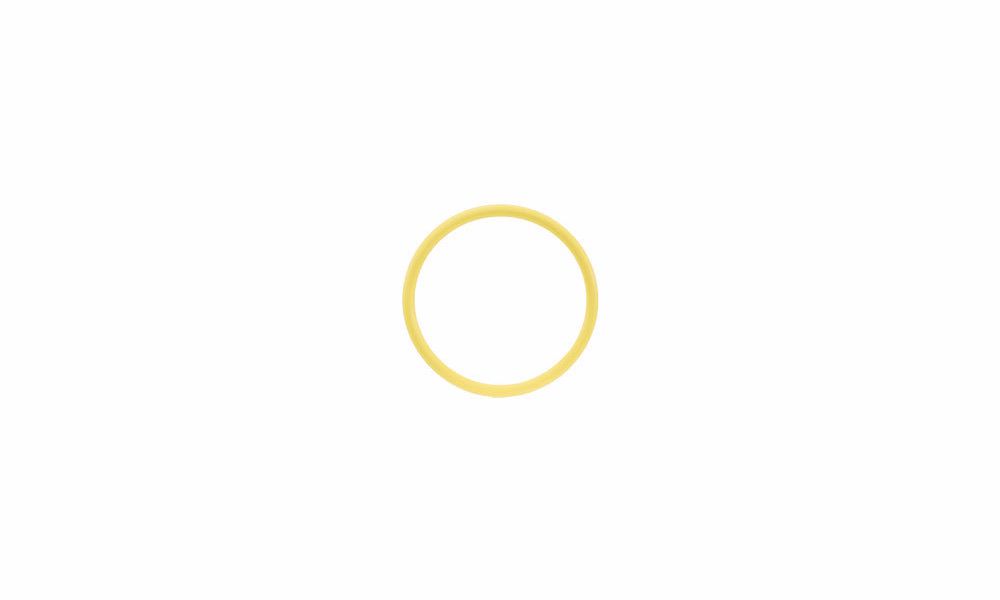

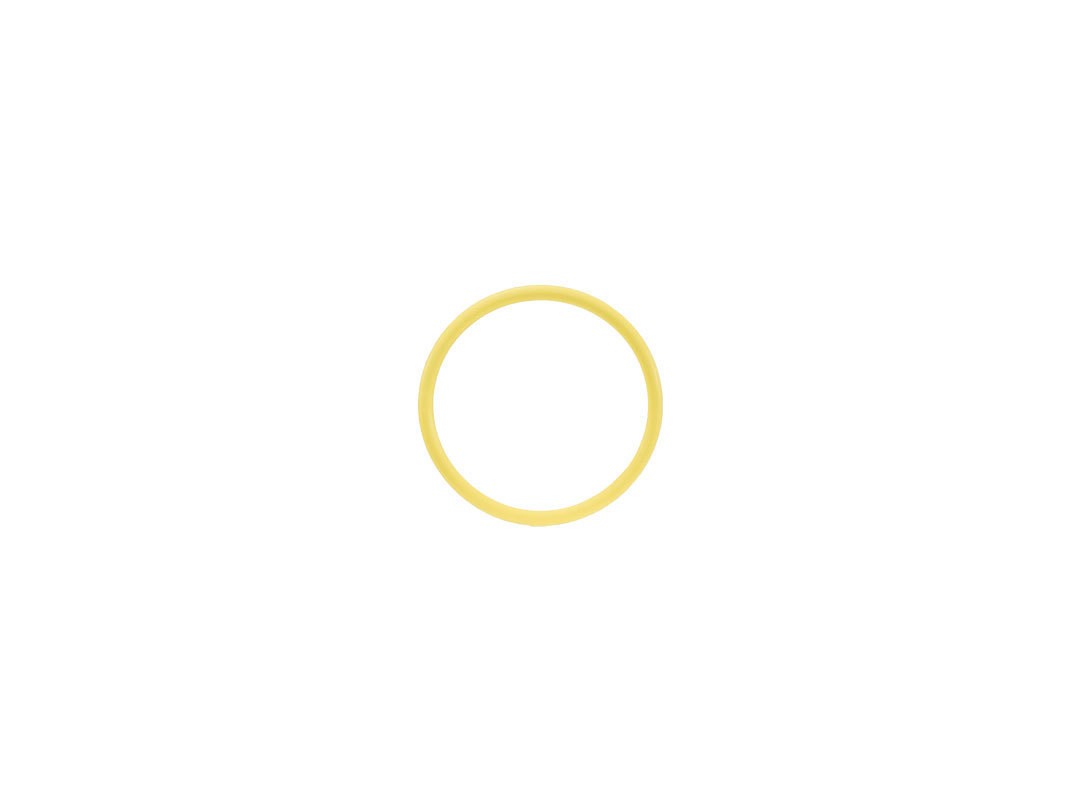

X-2 Main O-ring 175

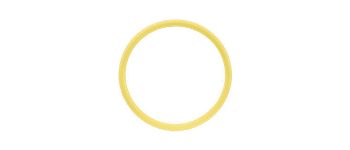

X-2 Main O-ring 175

Spare oil-bearing INON yellow O-ring for housing body.

Compatible Housing
X-2 R5, X-2 R6, X-2 R6 Mark II
X-2 for EOS10D, X-2 for EOS20D,X-2 for EOS30D, X-2 for EOS50D/40D,
X-2 for EOS60D, X-2 for EOS70D, X-2 for EOS6D, X-2 for GF1, X-2 for GF2

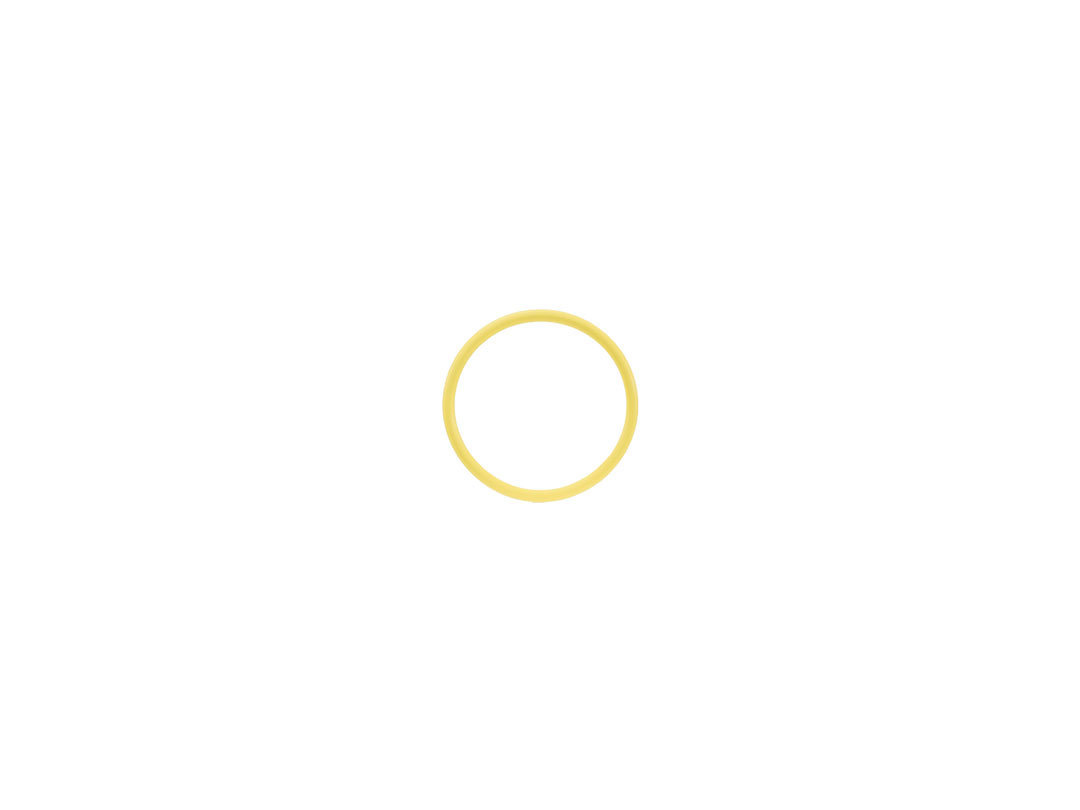

O-ring for Port/Extension Ring

O-ring for Port/Extension Ring

Spare oil-bearing INON yellow O-ring for M96 threaded port/EXT. Ring.

Compatible Port
MRS Extension Ring 33, MRS Extension Ring 111, Extension Ring 18,
 Extension Ring 36

O-ring for M86 Port

O-ring for M86 Port

Spare oil-bearing INON yellow O-ring for M86 threaded port.

Compatible Port
M86 Dome Port 115, M86 Port 07, M86 Port 17, M86 Port 49,
M86 Port 55, M86 Port 82

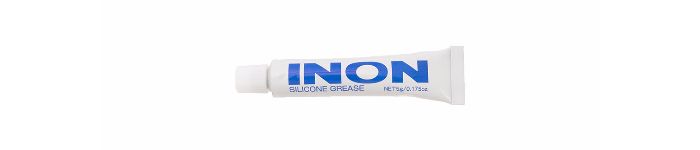

INON Grease

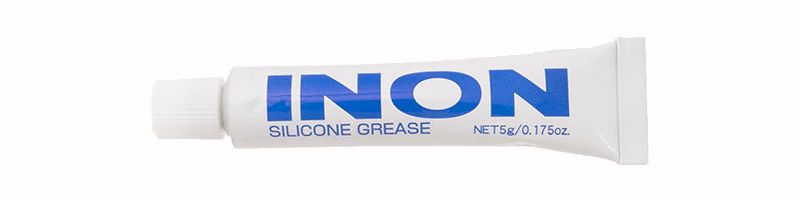

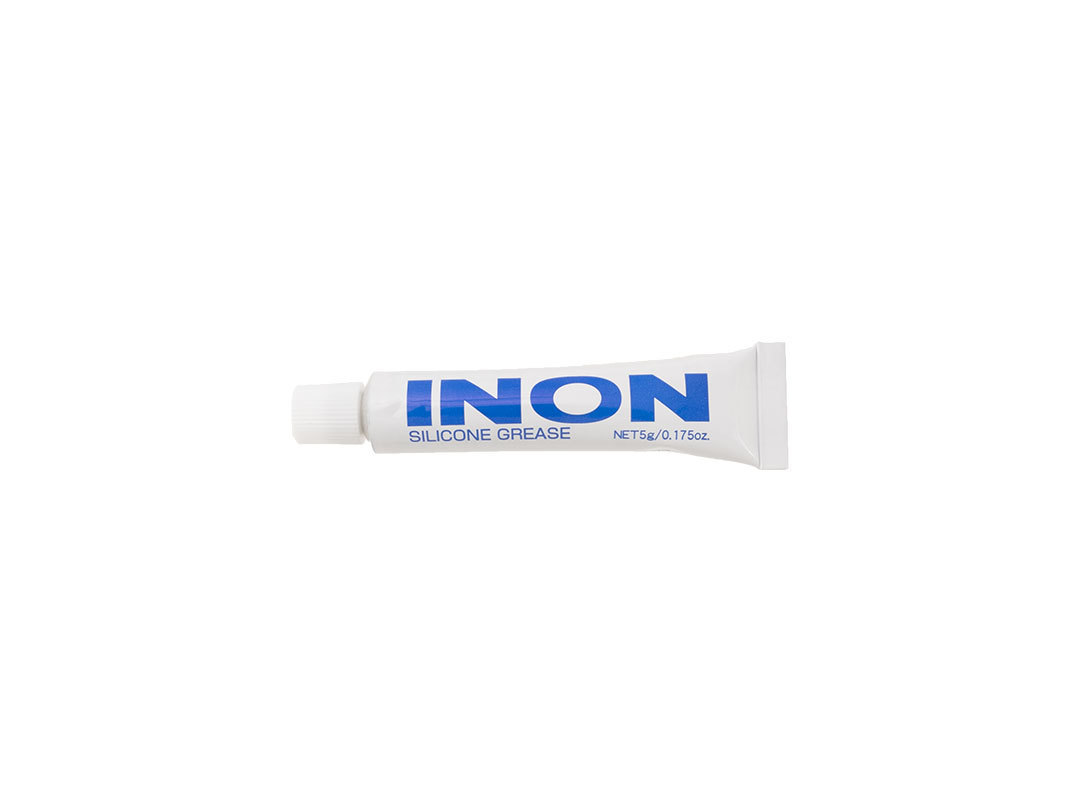

INON Grease

Grease exclusively for oil bearing INON yellow O-ring.

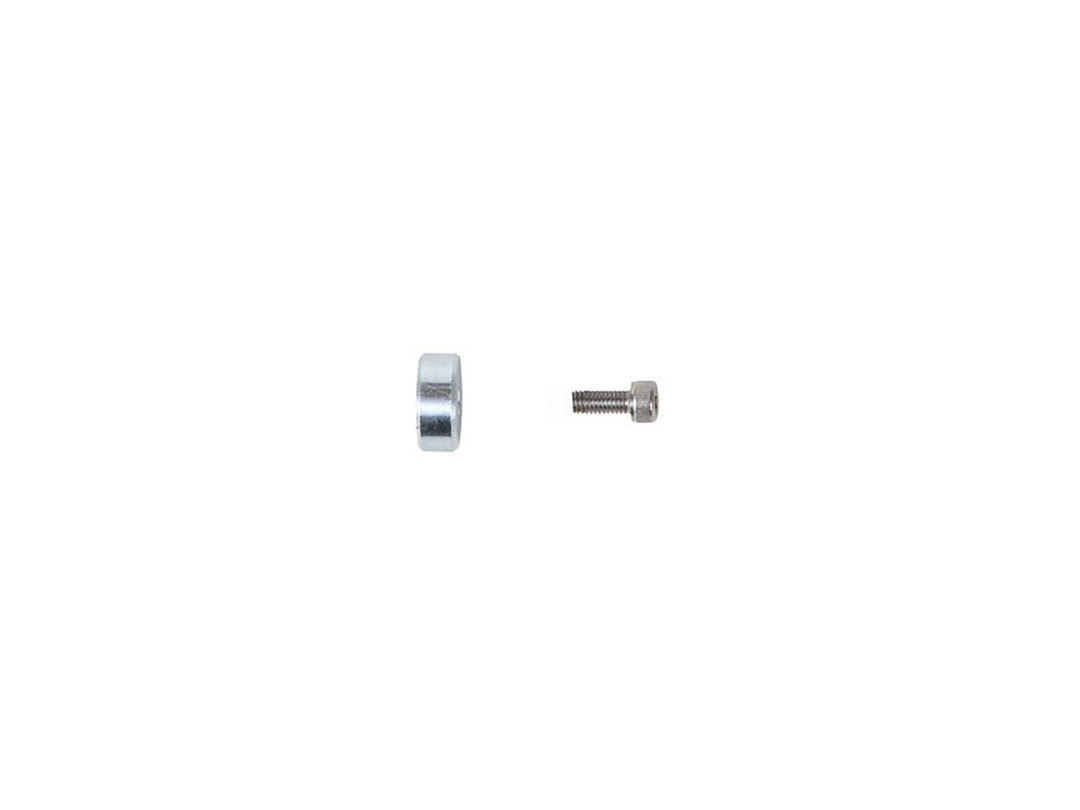

GX Corrosion Suppression Unit

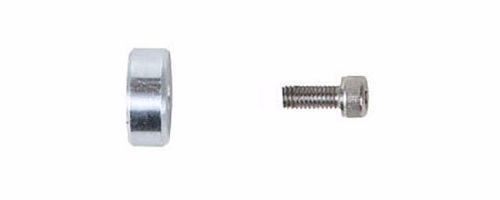

GX Corrosion Suppression Unit

Optional replacement unit when pre-installed unit gets worn. The unit suppresses housing corrosion by oxidizing before the X-2 housing body gets rusted.
