INON

LE700-S

Replaced by LE700-S Type2

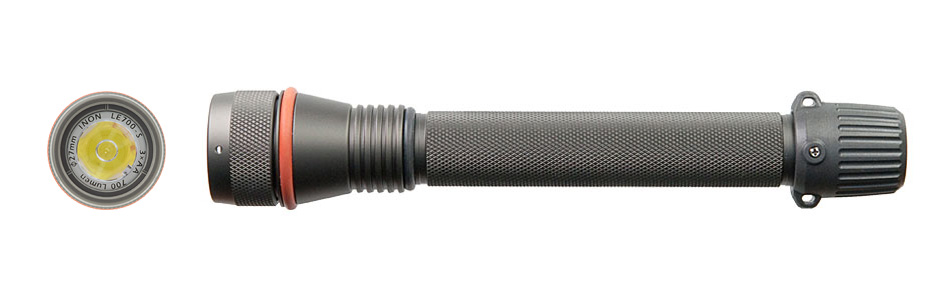

SIDE VIEW
click to enlarge


[FRONT VIEW]

FRONT VIEW

[Standard Accessory]
Red Filter LE / Pink Filter LE / Orange Filter LE
W50° Filter LE / W50° Pink Filter LE / W50° Orange Filter LE

Standard Accessory
Hand strap
INON Grease


Rear switch

Rear switch

3 x AA size batteries

3 x AA size batteries

Multipurpose Diving Flashlight
Even for Macro Shooting

●Powerful 700 lumen and 30 degree coverage is convenient as a dive light and its even yet strong beam is best suit for macro shooting as well. Versatile multipurpose flashlight for various underwater scenes.

●Optional "W50° Filter LE" effectively increases the beam coverage up to approx. 60 degree thanks to its fly-eye lens structure. Two options on beam coverage are useful for different situation together with packaged Color Filter LE which changes color tone of the LE series product.


●The LE700-S comes with "Red Filter LE" not to stimulate shy underwater life by changing light beam color to red.

●Wide range of optional accessories is available to install on photographic / videographic system.

●Operated by easily obtainable 3 x AA size batteries. Compatible rechargeable battery like "eneloop" / "eneloop pro" etc. gives you approx. 75 minutes continuous operation underwater* with low running cost.
* Average time to get half brightness when continuously turn ON the product with eneloop pro batteries

●The Light Head and battery Box is made from corrosion-resistant aluminum alloy. Simple yet durable construction with double O-ring for moving parts supports depth rating 120m. The independent rotary switch part is equipped with a stopper to prevent accidental flooding due to over loosening.

●Gold coating on electrical contacts of the Light Head and Battery Box provide maintenance free circumstances under normal usage.

●Interchangeable Light Head design enable you to use "LE700-W", "LE550-W", "LE550-S", "LE350", "LE250" Light Head depending on usage and supports possible upgrading to future model as well.

BEAM ANGLE

Beam Angle
without a filter
Beam coverage
30 degree
Beam Angle
With W50° Filter LE
Beam coverage
60 degree

ACCESSORIES

Single Light Holder LE
Double Light Holder LE
Quad Light Holder LE
Strobe Light Holder LE
Bar Mount
Light Case LE 3AA
Color Filter LE Set

SPECIFICATION (*1)

LED Components High-intensity Power LED (Cree XM-L"T6") Depth Rating 120m / 394ft (*9)
Luminouus Flux
(*2)(*3)
700 lumen Size Max. diameter 33.7mm / 1.3in
Length 198.0mm / 7.8in
Coverage 30° [without a filter,
with packaged Red/Pink/Orange Filter LE]
Weight (*10) [air] 217g / 7.7oz,
[underwater] approx. 128g / 4.5oz
60° [with packaged 50° Clear/Pink/Orange Filter LE] Working / Storage
Temperature
±0°C–+30°C / 32°F–86°F
Color Temperature
(*3)
approx. 6,000K LED Life Time approx. 10,000 hours
Usable Environment underwater Material / Finishing Corrosion resistant aluminum alloy / rigid almite,
PBT, Optical grass etc.
Operable Duration
(*5)(*6)
approx. 60 minutes ["eneloop" battery] Standard Accessory Red Filter LE, Pink Filter LE, Orange Filter LE,
W50°Filter LE
W50°Pink Filter LE, W50°Orange Filter LE,
Hand Strap
INON Grease
approx. 75 minutes ["eneloop pro" battery]
approx. 80 minutes [Alkaline battery]
approx. 125 minutes [Lithium battery (1.5V)]
Compatible Battery AA "eneloop"/"eneloop pro" battery x 3 (*7) EMC standards EN 55015:2006 + A1:2007
EN 61547:1995 + A1:2000
AA NiMH [good quality] x 3 (*8)
AA Alkaline battery x 3 CRF 47 FCC Part 15 [incidental radiator]
AA Lithium battery (1.5V) x 3 AS/NZS CISPER 15:2006

(*1) Subject to change without prior notice
(*2) Nominal value calculated from LED manufacture specification sheet.
(*3) Due to individual variability of LED, drive circuit or battery etc., luminous flux, color temperature or intensity may vary within rated specification.
(*4) Average time to get half brightness when continuously turn ON the product with below listed batteries on land (approx. 20°C / 68°F).
- "eneloop" battery: SANYO "eneloop", HR-3UTGB, 1.2V, Min.1,900mAh
- "eneloop pro" battery: SANYO "eneloop pro", HR-3UWX, 1.2V, Min.2,400mAh
- Alkaline battery: Panasonic "EVOLTA" LR6(EJ), 1.5V
- Lithium battery (1.5V): Energizer e2 LITHIUM, FR6, 1.5V
(*5) Average time to get half brightness when continuously turn ON the product with below listed batteries on underwater (approx. 25°C / 77°F).
- "eneloop" battery: SANYO "eneloop", HR-3UTGB, 1.2V, Min.1,900mAh
- "eneloop pro" battery: SANYO "eneloop pro", HR-3UWX, 1.2V, Min.2,400mAh
- Alkaline battery: Panasonic "EVOLTA" LR6(EJ), 1.5V
- Lithium battery (1.5V): Energizer e2 LITHIUM, FR6, 1.5V
(*6) Actual measured data by INON. The value may vary depending on product individual variability, battery manufacture/model, test condition.

(*7) "New generation" NiMH batteries carrying less self-discharging and heat generating characteristic comparing to "conventional" or "high-capacity" NiMH including listed batteries as below confirmed compatible by INON INC. as same as recommended [Panasonic "eneloop"/"eneloop pro" battery (BK-3MCC, BK-3HCC, BK-3HCD)].
- Panasonic Corporation
Model name: eneloop [recommended]/Model code: BK-3MCC
- Panasonic Corporation
Model name: eneloop pro [recommended]/Model code: BK-3HCC, BK-3HCD
- SANYO Electric Co.,Ltd
Model name: eneloop [recommended]/Model code: HR-3UTG, HR-3UTGA, HR-3UTGB
- SANYO Electric Co.,Ltd
Model name: eneloop pro [recommended]/Model code: HR-3UWX
- Sony Corp.
Model name: Cycle Energy Blue/Model code: NH-AA-2BKA, NH-AA-4BKA
- Panasonic Corporation
Model name: Rechargeable Ni-MH (AA)/Model code: HHR-3MPS
- Maha Energy Corporation
Model name: IMEDION/Model code: MHRAAI4
- GP Batteries International Ltd
Model name: ReCyko+/Model code: 210AAHCBE
- ANSMANN AG
Model name: maxE/Model code: 5030991, 5030992, 5035052
- Electrochem Automation Inc.
Model name: NEXcell energyON/Model code: n/a (AA 2000mAh)
(*8) Some "conventional" or "high-capacity" NiMH rechargeable batteries have significant self-discharge and heat-generating characteristic resulting difficulty to keep their performance during usage. We recommend using recommended batteries.
(*9) Without operating the "Switch". INON has confirmed depth rating 84m/276' including switch operation.
(*10) Including 3 x AA "eneloop" batteries.
