INON

LE550-W

  [Discontinued]

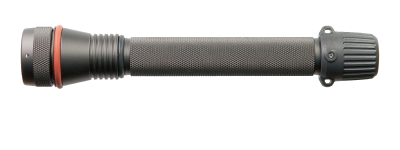

SIDE VIEW
click to enlarge

[FORNT VIEW]

FORNT VIEW

[Standard Accessory]
LSU(*) Filter LE
(LSU Filter Red LE / LSU Filter Pink LE /
LSU Filter Orange LE / LSU Filter LE

Standard Accessory
Hand Strap
INON Grease
*LSU=Light Source Uniformize




LE550-W Sample movie
LE550-W Sample movie




Enfolding a Subject with Even & Rich Light
Photographic Quality Underwater Flashlight

●Ample features as primary lighting source for photography / videography with powerful 550 lumen and wide 75 degree coverage as well as diving light to illuminate wide area for night or cave diving.

●Packaged "LSU Filter LE" suppress negligible uneven beam providing seamless and ideal light quality for photography / videography. Four different LSU Filter LE (clear/red/pink/orange) are available to change color tone depending on camera, shooting condition or personal preference.
(LSU = Light Source Uniformize)

●Wide range of optional accessories are available to install on photographic / videographic system.

●Operated by easily obtainable 3 x AA size batteries. Compatible rechargeable battery like "eneloop" etc. gives you approx. 70 minutes continuous operation underwater* with low running cost.
* Average time to get half brightness when continuously turn ON the product with eneloop batteries.

●The Light Head and battery Box is made from corrosion-resistant aluminum alloy. Simple yet durable construction with double O-ring for moving parts supports depth rating 120m. The independent rotary switch part is equipped with a stopper to prevent accidental flooding due to over loosening.

●Gold coating on electrical contacts of the Light Head and Battery Box provide maintenance free circumstances under normal usage.

●Interchangeable Light Head design enables you to use "LE550-S", "LE250"Light Head depending on usage and supports possible upgrading to future model as well.

BEAM ANGLE

Beam Angle
without a filter
Beam coverage
75 degree
Beam Angle
With LSU Filter LE
Beam coverage
75 degree

SPECIFICATION (*1)

LED Components High-intensity Power LED (Cree MC-E"M") Depth Rating 120m / 394ft (*9)
Luminouus Flux
(*2)(*3)
550 lumen Size Max. diameter 33.7mm / 1.3in
Length 1.3in x 194.6mm / 7.7in
Coverage 75° [without a filter, with LSU Filter LE] Weight (*10) [air] 220.0g / 7.8oz,
[underwater] approx. 132g / 4.7oz
Color Temperature
(*3)
approx. 6,000K Working / Storage
Temperature
±0°C–+30°C / 32°F–86°F
Usable Environment underwater LED Life Time approx. 10,000 hours
Operable Duration
(*5)(*6)
approx. 70 minutes ["eneloop" battery] Material / Finishing Corrosion resistant aluminum alloy / rigid almite,
PBT, Optical grass etc.
approx. 100 minutes [NiMH battery]
approx. 95 minutes [Alkaline battery] Standard Accessory LSU Filter LE, LSU Filter Red LE, LSU Filter Pink LE,
LSU Filter Orange LE, Hand Strap, INON Grease
approx. 125 minutes [Lithium battery (1.5V)]
Compatible Battery AA "eneloop" battery x 3 (*7) EMC standards EN 55015:2006 + A1:2007
EN 61547:1995 + A1:2000
AA NiMH [good quality] x 3 (*8)
AA Alkaline battery x 3 CRF 47 FCC Part 15 [incidental radiator]
AA Lithium battery (1.5V) x 3 AS/NZS CISPER 15:2006

(*1) Subject to change without prior notice
(*2) Nominal value calculated from LED manufacture specification sheet.
(*3) Due to individual variability of LED, drive circuit or battery etc., luminous flux, color temperature or intensity may vary within rated specification.
(*4) Average time to get half brightness when continuously turn ON the product with below listed batteries on land (approx. 20°C / 68°F).
- "eneloop" battery: SANYO "eneloop", HR-3UTG, 1.2V, Min.1,900mAh
- NiMH battery: SANYO Twicell 2700 Series, HR-3UG, 1.2V, Min 2,500mAh
- Alkaline battery: Panasonic "EVOLTA" LR6(EJ), 1.5V
- Lithium battery (1.5V): Energizer e2 LITHIUM, FR6, 1.5V
(*5) Average time to get half brightness when continuously turn ON the product with below listed batteries on underwater (approx. 25°C / 77°F).
- "eneloop" battery: SANYO "eneloop", HR-3UTGA, 1.2V, Min.1,900mAh
- NiMH battery: SANYO Twicell 2700 Series, HR-3UG, 1.2V, Min 2,500mAh
- Alkaline battery: Panasonic "EVOLTA" LR6(EJ), 1.5V
- Lithium battery (1.5V): Energizer e2 LITHIUM, FR6, 1.5V
(*6) Actual measured data by INON. The value may vary depending on product individual variability,
battery manufacture/model, test condition.



(*7) "New generation" NiMH batteries carrying less self-discharging and heat generating characteristic comparing to "conventional" or " high-capacity" NiMH including listed batteries as below confirmed compatible by INON INC. as same as recommended [Sanyo "eneloop" battery (HR-3UTG)].
- SANYO Electric Co.,Ltd
Model name: eneloop [recommended]/Model code: HR-3UTG,HR-3UTGA
- Sony Corp.
Model name: Cycle Energy Blue/Model code: NH-AA-2BKA,NH-AA-4BKA
- Panasonic Corporation
Model name: Rechargeable Ni-MH (AA)/Model code: HHR-3MPS
- Maha Energy Corporation
Model name: IMEDION/Model code: MHRAAI4
- GP Batteries International Ltd
Model name: ReCyko+/Model code: 210AAHCBE
- ANSMANN AG
Model name: maxE/Model code: 5030991, 5030992, 5035052
- Electrochem Automation Inc.
Model name: NEXcell energyON/Model code: n/a (AA 2000mAh)
(*8) Some "conventional" or " high-capacity" NiMH rechargeable batteries have significant self-discharge and heat-generating characteristic resulting difficulty to keep their performance during usage. We recommend using recommended batteries.
(*9) Without operating the "Switch". INON has confirmed depth rating 84m/276' including switch operation.
(*10) Including 3 x AA "eneloop" batteries.
