INON Inc. is pleased to announce official release of INON's unique Arca-Swiss style "Quick Shoe Series" products on March 12, 2021. The "Quick Shoe Series" allows you to easily detach/attach a housing or a handle from/on a base tray.
INON Inc. is pleased to announce official release of INON's unique Arca-Swiss style "Quick Shoe Series" products on March 12, 2021. The "Quick Shoe Series" allows you to easily detach/attach a housing or a handle from/on a base tray.
 |
||
| Quick Shoe W50 Set | ||
| --Release date: March 12, 2021 | ||
| -- JAN/EAN code: 457001812 017 6 | ||
 |
||
| Quick Shoe W27 Set | ||
| --Release date: March 12, 2021 | ||
| -- JAN/EAN code: 457001812 016 9 | ||
 |
||
| Quick Shoe L-Type Bracket | ||
| --Release date: March 12, 2021 | ||
| -- JAN/EAN code: 456212143 985 6 | ||
|
||
| Quick Shoe W50 Set | ||
| --Release date: March 12, 2021 | ||
| -- JAN/EAN code: 457001812 017 6 | ||
|
||
| Quick Shoe W27 Set | ||
| --Release date: March 12, 2021 | ||
| -- JAN/EAN code: 457001812 016 9 | ||
|
||
| Quick Shoe L-Type Bracket | ||
| --Release date: March 12, 2021 | ||
| -- JAN/EAN code: 456212143 985 6 | ||
 |
||
| Quick Shoe W95 Plate | ||
| -- Release date: March 12, 2021 | ||
| -- JAN/EAN code: 456212143 982 5 | ||
 |
||
| Quick Shoe Main Base | ||
| -- Release date: March 12, 2021 | ||
| -- JAN/EAN code: 456212143 986 3 | ||
|
||
| Quick Shoe W95 Plate | ||
| -- Release date: March 12, 2021 | ||
| -- JAN/EAN code: 456212143 982 5 | ||
|
||
| Quick Shoe Main Base | ||
| -- Release date: March 12, 2021 | ||
| -- JAN/EAN code: 456212143 986 3 | ||
Quick Shoe Series Features
Quick Shoe Series Features
The Quick Shoe uses the Arca-Swiss system, commonly used for tripods, allowing to separate the plate from the clamp. The handle with locking mechanism on the clamp part provides secure locking without any rattling and easy and quick installation/removal. You can freely change combination of INON Quick Shoe plate and clamp for various applications.
*Please note that INON Inc. has not confirmed compatibility of this product with other brands' Arca-Swiss style products.
The Quick Shoe uses the Arca-Swiss system, commonly used for tripods, allowing to separate the plate from the clamp. The handle with locking mechanism on the clamp part provides secure locking without any rattling and easy and quick installation/removal. You can freely change combination of INON Quick Shoe plate and clamp for various applications.
*Please note that INON Inc. has not confirmed compatibility of this product with other brands' Arca-Swiss style products.
Quick Shoe W50 Set
Quick Shoe W50 Set
Standard Quick Shoe with 50 mm/2.0 in. width. Set of plate and clamp. Usable with the Grip Base D5 or the UW 3-way Panhead.
The plate part can be attached to a housing with 20 mm/0.8 in. to 36 mm/1.4 in. between tripod screw holes, and a variety of arms are also attachable other than a housing.
The W50 Plate can be also attached on the bottom of the Grip Base D5 or Quick Shoe Main Base to hold the entire camera system on a tripod etc.
Standard Quick Shoe with 50 mm/2.0 in. width. Set of plate and clamp. Usable with the Grip Base D5 or the UW 3-way Panhead.
The plate part can be attached to a housing with 20 mm/0.8 in. to 36 mm/1.4 in. between tripod screw holes, and a variety of arms are also attachable other than a housing.
The W50 Plate can be also attached on the bottom of the Grip Base D5 or Quick Shoe Main Base to hold the entire camera system on a tripod etc.
Quick Shoe W27 Set
Quick Shoe W27 Set
Compact Quick Shoe with 27 mm/1.1 in. width. A set of plate and clamp to be attached on the tip of the Quick Shoe Main Base or D5 Holder to enable various arm configurations.
Like Quick Shoe W50 Set, various arms can be attached to the plate section.
Compact Quick Shoe with 27 mm/1.1 in. width. A set of plate and clamp to be attached on the tip of the Quick Shoe Main Base or D5 Holder to enable various arm configurations.
Like Quick Shoe W50 Set, various arms can be attached to the plate section.

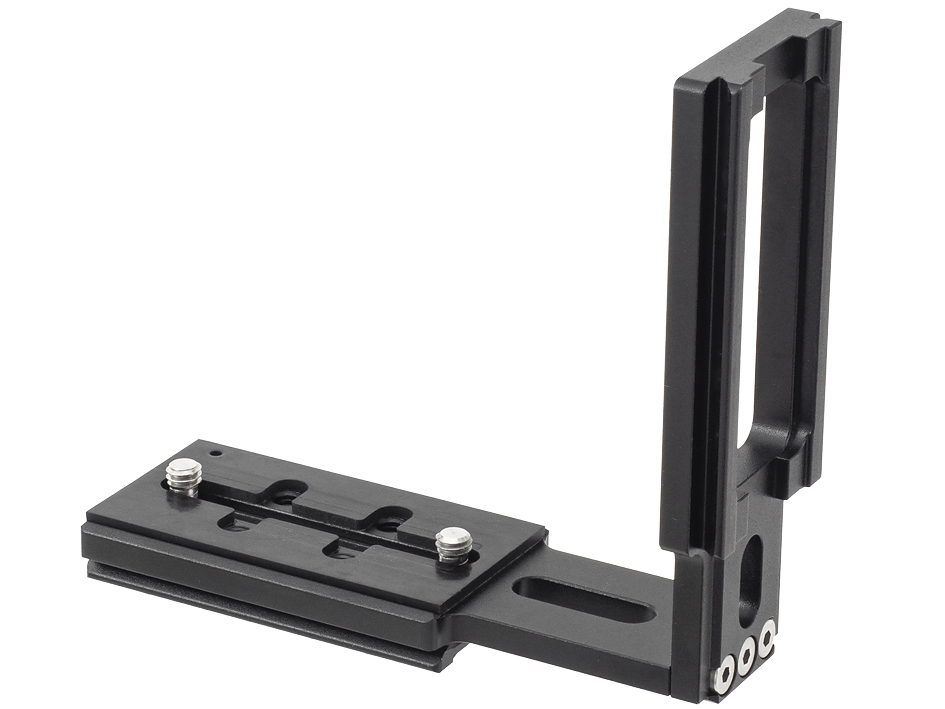

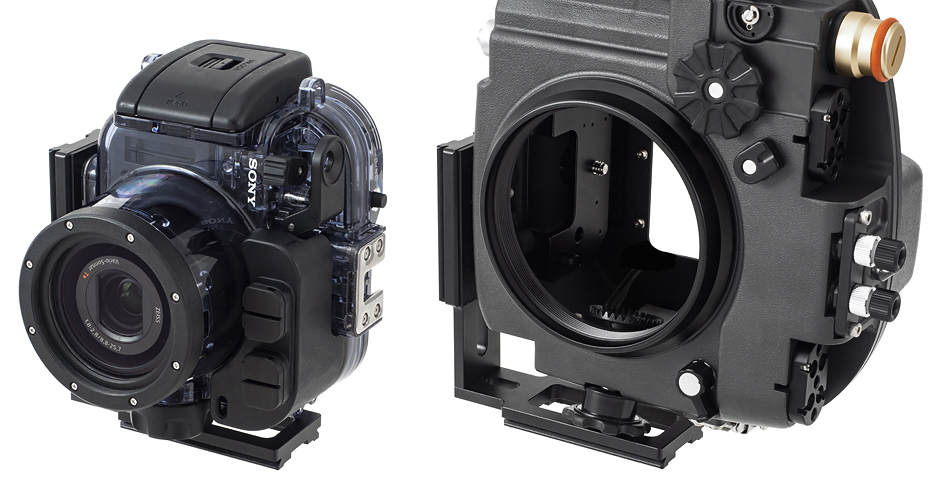

Quick Shoe L-Type Bracket
Quick Shoe L-Type Bracket
An innovative item for a housing enabling low angle portrait shot without changing the lighting, which was not possible with conventional accessory. It can be attached on a housing with tripod screw hole spacing from 12 mm/0.5 in. to 56 mm/2.2 in.
*Please note that not all of products are confirmed compatible with this product. If the installation of this product interferes in opening/closing the housing, it should not be used.
Designed to use in combination with the clamp part of the Quick Shoe W50 Set and Quick Shoe Main Base.
An innovative item for a housing enabling low angle portrait shot without changing the lighting, which was not possible with conventional accessory. It can be attached on a housing with tripod screw hole spacing from 12 mm/0.5 in. to 56 mm/2.2 in.
*Please note that not all of products are confirmed compatible with this product. If the installation of this product interferes in opening/closing the housing, it should not be used.
Designed to use in combination with the clamp part of the Quick Shoe W50 Set and Quick Shoe Main Base.

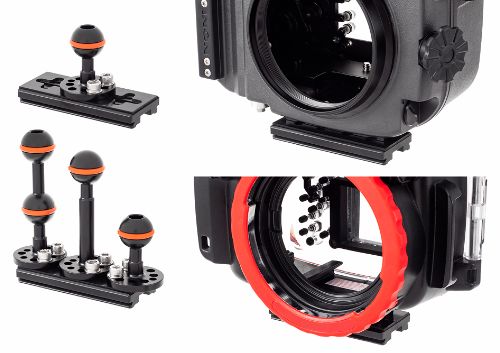

Quick Shoe W95 Plate
Quick Shoe W95 Plate
A Quick Shoe Plate with 95 mm/3.7 in. width. For use with a clamp part of the Quick Shoe W50 Set, Quick Shoe W27 Set or Quick Shoe Main Base.
Compatible with mainly large size housings with tripod thread spacing from 20mm/0.8 in. to 80mm/3.1 in. and Multi Direct Base II products.
The W95 Plate can be also attached on the bottom of the Grip Base D5 or Quick Shoe Main Base to hold the entire camera system on a tripod etc.
A Quick Shoe Plate with 95 mm/3.7 in. width. For use with a clamp part of the Quick Shoe W50 Set, Quick Shoe W27 Set or Quick Shoe Main Base.
Compatible with mainly large size housings with tripod thread spacing from 20mm/0.8 in. to 80mm/3.1 in. and Multi Direct Base II products.
The W95 Plate can be also attached on the bottom of the Grip Base D5 or Quick Shoe Main Base to hold the entire camera system on a tripod etc.

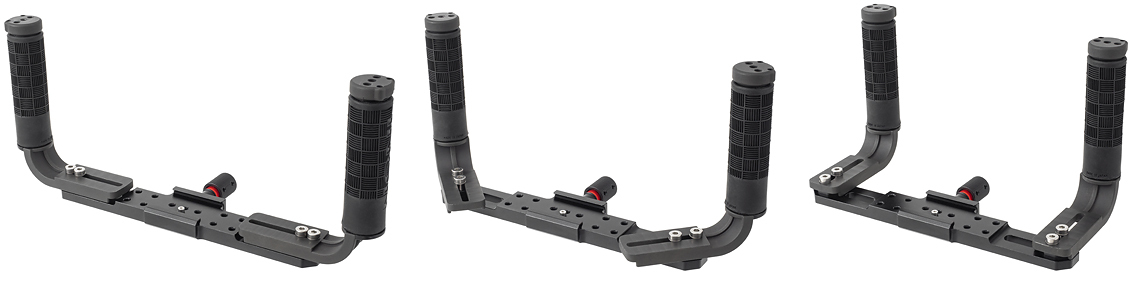

Quick Shoe Main Base
Quick Shoe Main Base
An all new main base equipped with a Quick Shoe clamp. With the D5 Holder attached on both ends, it functions as a handle and tray for the camera.
Various Quick Shoe plates and clamps can be attached. A wide variety of arm configurations available.
An all new main base equipped with a Quick Shoe clamp. With the D5 Holder attached on both ends, it functions as a handle and tray for the camera.
Various Quick Shoe plates and clamps can be attached. A wide variety of arm configurations available.
Specifications
Specifications
Quick Shoe W50 Set
| Dimensions (W x H x D) | 50 x 28.3 x 94.8 mm/2.0 x 1.1 x 3.7 in |
| Weight | [air] 146 g/5.1 oz, [u/w] Approx. 96g/3.4 oz |
| Material/surface finishing | Corrosion resisting aluminum alloy/rigid alumite, ABS etc. |
Quick Shoe W27 Set
| Dimensions (W x H x D) | 27.5 x 26.2 x 94.8 mm/1.1 x 1.0 x 3.7 in |
| Weight | [air] 90 g/3.2 oz, [u/w] Approx. 60 g/2.1 oz |
| Material/surface finishing | Corrosion resisting aluminum alloy/rigid alumite |
Quick Shoe L-Type Bracket
| Dimensions (W x H x D) | 122.2 x 113.5 x 42 mm/4.8 x 4.5 x 1.7 in |
| Weight | [air] 131 g/4.6 oz, [u/w] Approx. 83g/2.9 oz |
| Material/surface finishing | Corrosion resisting aluminum alloy/rigid alumite |
Quick Shoe W95 Plate
| Dimensions (W x H x D) | 95.3 x 12.5 x 42 mm/3.8 x 0.5 x 1.7 in |
| Weight | [air] 76 g/2.7 oz, [u/w] Approx. 47g/1.7 oz |
| Material/surface finishing | Corrosion resisting aluminum alloy/rigid alumite |
Quick Shoe Main Base
| Dimensions (W x H x D) | 250 x 28.3 x 94.8 mm/9.8 x 1.1 x 3.7 in |
| Weight | [air] 248 g/8.7 oz, [u/w] Approx. 160 g/5.6 oz |
| Material/surface finishing | Corrosion resisting aluminum alloy/rigid alumite |
March 10, 2021
INON INC.
*Press release information is as of March 10, 2021 and subject to change without prior notice.
